Refrigerant: Service and Repair
REPLACEMENT1. DISCHARGE REFRIGERANT FROM REFRIGERANT SYSTEM
2. REPLACE FAULTY TUBE OR HOSE
NOTE: Cap the openings immediately to keep moisture or dirt out of the system.

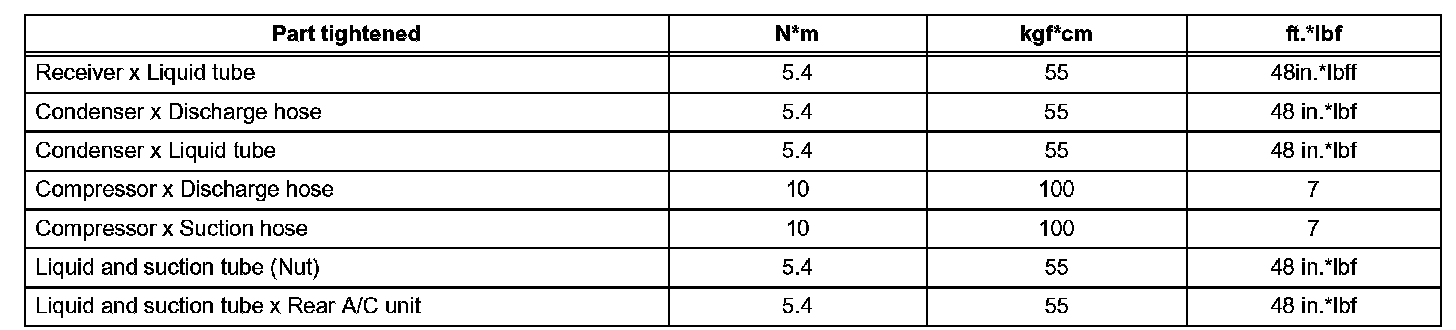

3. TIGHTEN JOINT OF BOLT OR NUT TO SPECIFIED TORQUE
NOTE: Do not exceed specified torque.
4. EVACUATE AIR IN REFRIGERATION SYSTEM AND CHARGE SYSTEM WITH REFRIGERANT
Specified amount:
Single A/C: 750 ± 50 g (26.45 ± 1.76 oz.)
Dual A/C: 1050 ± 50 g (37.03 ± 1.76 oz.)
5. INSPECT FOR LEAKAGE OF REFRIGERANT
a. Using a gas leak detector, check for leakage of refrigerant.
6. INSPECT AIR CONDITIONING OPERATION
