Home >> Toyota >> 2007 >> Sequoia 2WD V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations

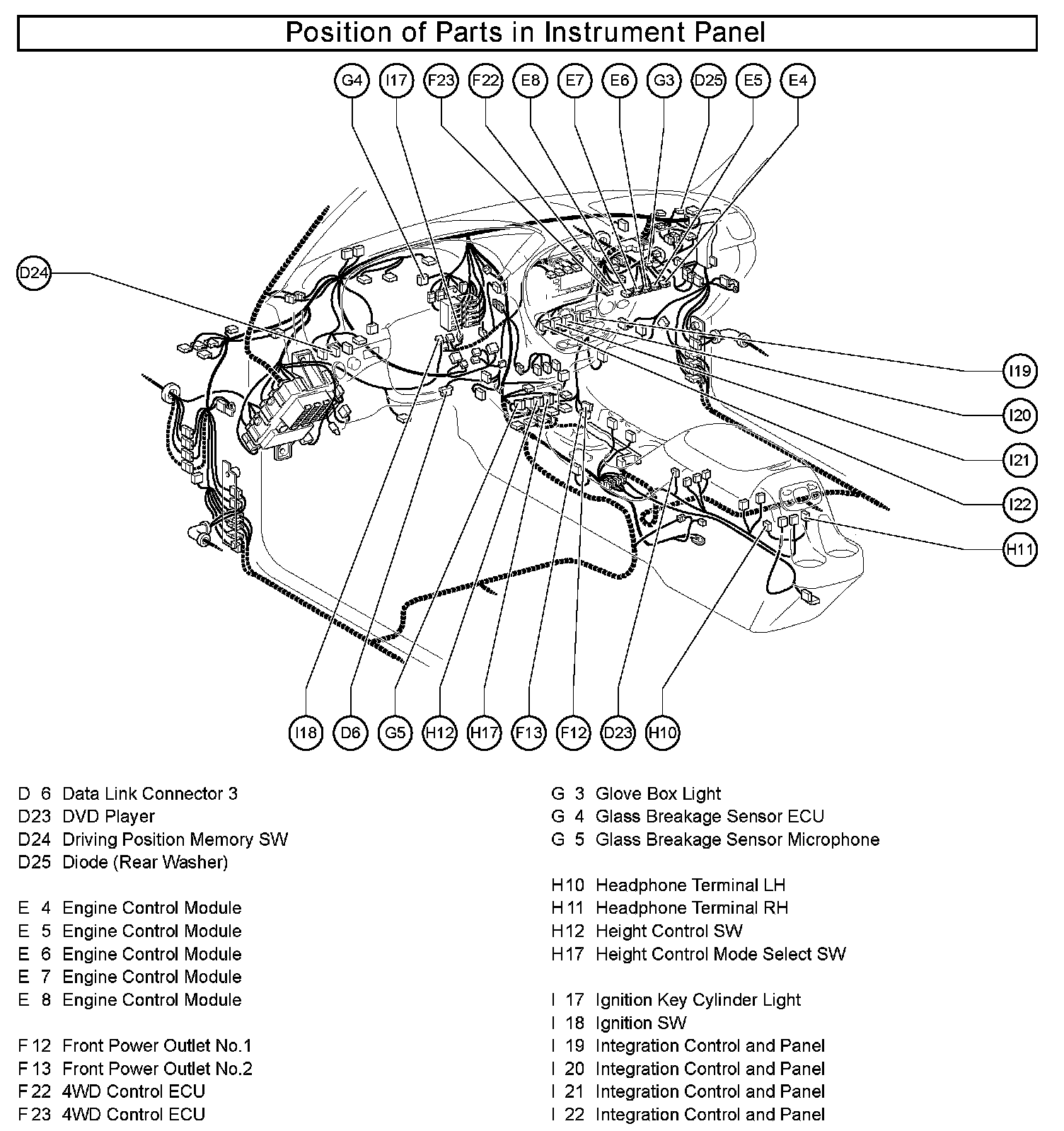

Data Link Connector: Locations

Da - In:

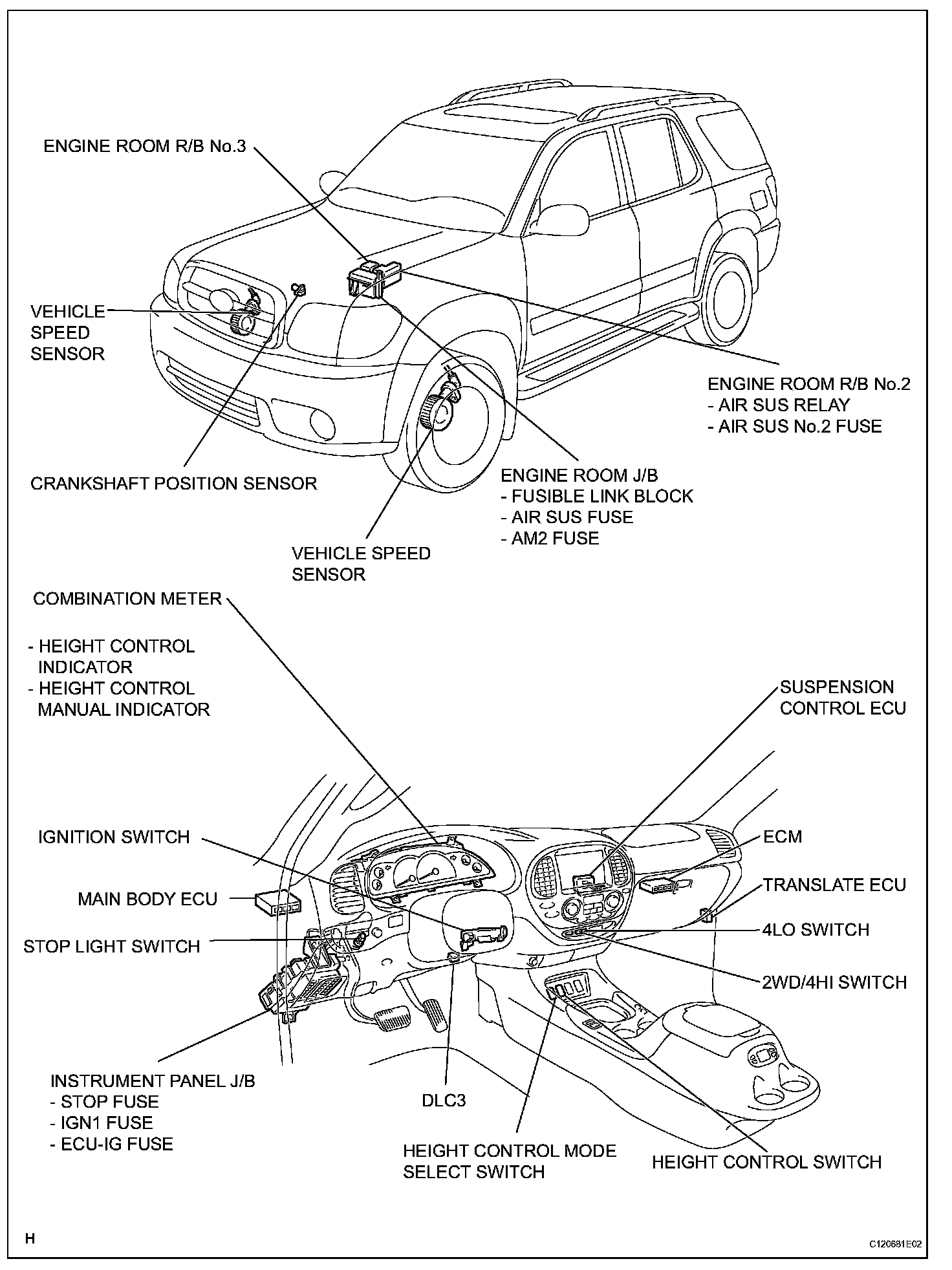

Air Suspension System:
