System Specifications

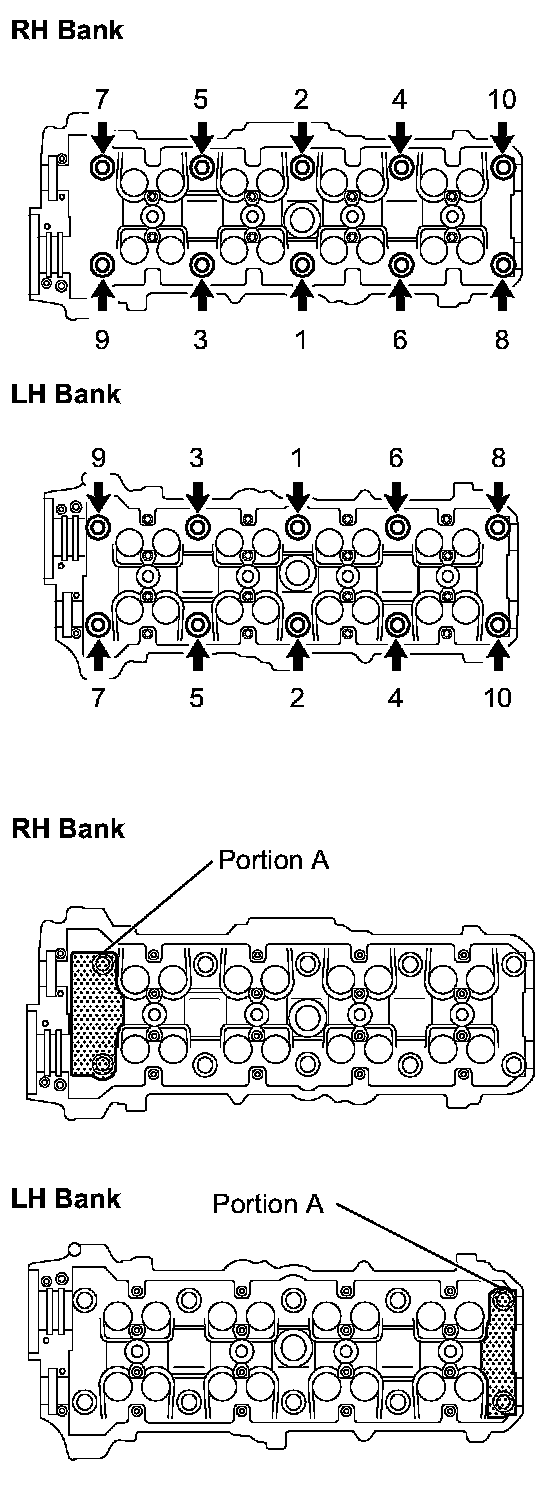

Cylinder Head Bolts
First Pass 40 Nm (408 kgf-cm, 30 ft. lbs.)
Second Pass 90°
Final Pass 90°

Surface Variation
Maximum Warpage 0.10 mm (0.0039 inch)

Intake Manifold Bolts And Nuts 18 Nm (185 kgf-cm, 13 ft. lbs.)

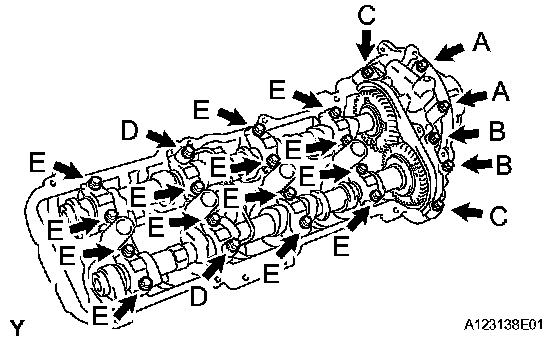

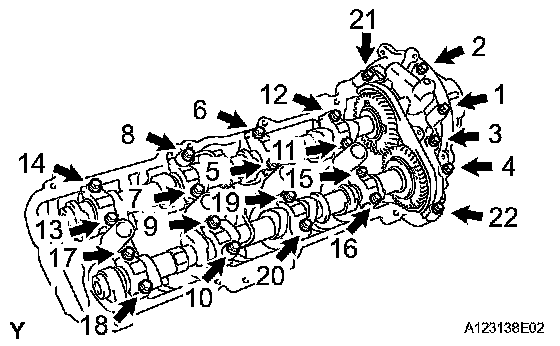

Camshaft Bearing Cap Bolts (LH)

Bolt Lengths
A with seal washer 94 mm (3.70 inch)
B with seal washer 72 mm (2.83 inch)
C 25 mm (0.98 inch)
D 52 mm (2.05 inch)
E 38 mm (1.50 inch)





Bolt C 7.5 Nm (76 kgf-cm, 66 inch lbs.)
Others 16 Nm (160 kgf-cm, 12 ft. lbs.)






Camshaft Bearing Cap Bolts (RH)

Bolt Lengths
A with seal washer 94 mm (3.70 inch)
B with seal washer 72 mm (2.83 inch)
C 25 mm (0.98 inch)
D 52 mm (2.05 inch)
E 38 mm (1.50 inch)





Bolt C 7.5 Nm (76 kgf-cm, 66 inch lbs.)
Others 16 Nm (160 kgf-cm, 12 ft. lbs.)


Camshaft Pulley Bolts 8.1 Nm (83 kgf-cm, 72 inch lbs.)

NEW Exhaust Manifold Nuts 44 Nm (450 kgf-cm, 32 ft. lbs.)
