1. REPLACE FRONT BEARING

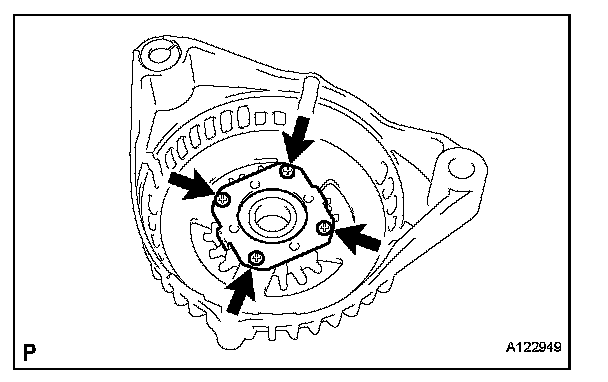

a. Remove the 4 screws, the bearing retainer and the bearing.

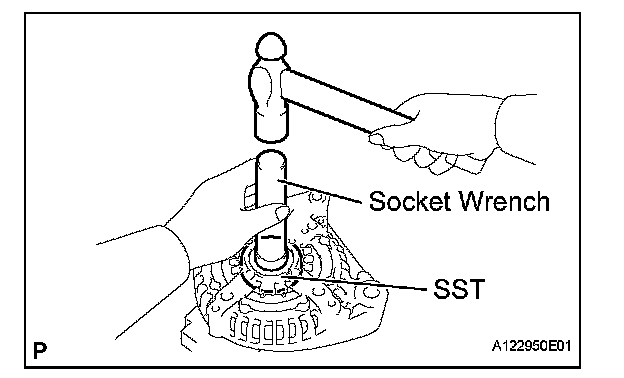

b. Using SST and a hammer, tap out the bearing.
SST 09950-60010 (09951-00250), 09950-70010 (09951-07100)




c. Using SST and a press, press in a new bearing.
SST 09950-60010 (09951-00470), 09950-70010 (09951-07100)

d. Install the bearing retainer with the 4 screws.

Torque: 2.6 N.m (27 kgf.cm, 23 in.lbf)




2. REPLACE REAR BEARING

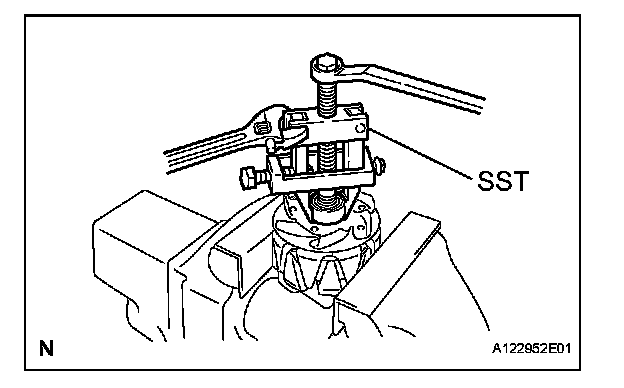

a. Using SST, remove the bearing cover (outside) and the bearing.
SST 09820-00021

NOTE: Be careful not to damage the fan.




b. Using SST and a press, press in a new bearing.
SST 09820-00031




c. Using SST, push in the bearing cover (outside).
SST 09285-76010
