Power Window Relay: Locations

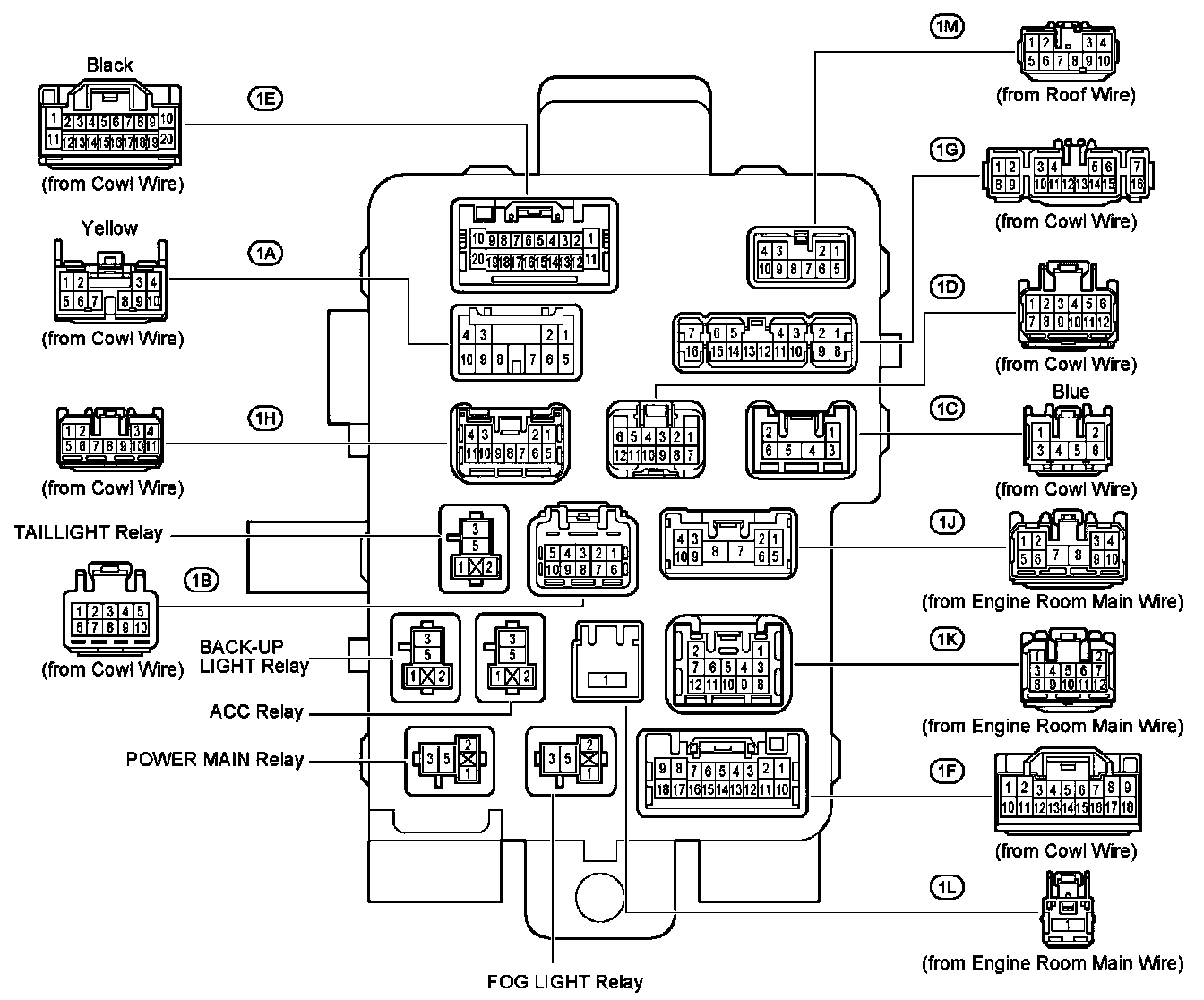

Instrument Panel J/B - Lower Finish Panel:



Instrument Panel J/B - Lower Finish Panel:



Theft Deterrent System:

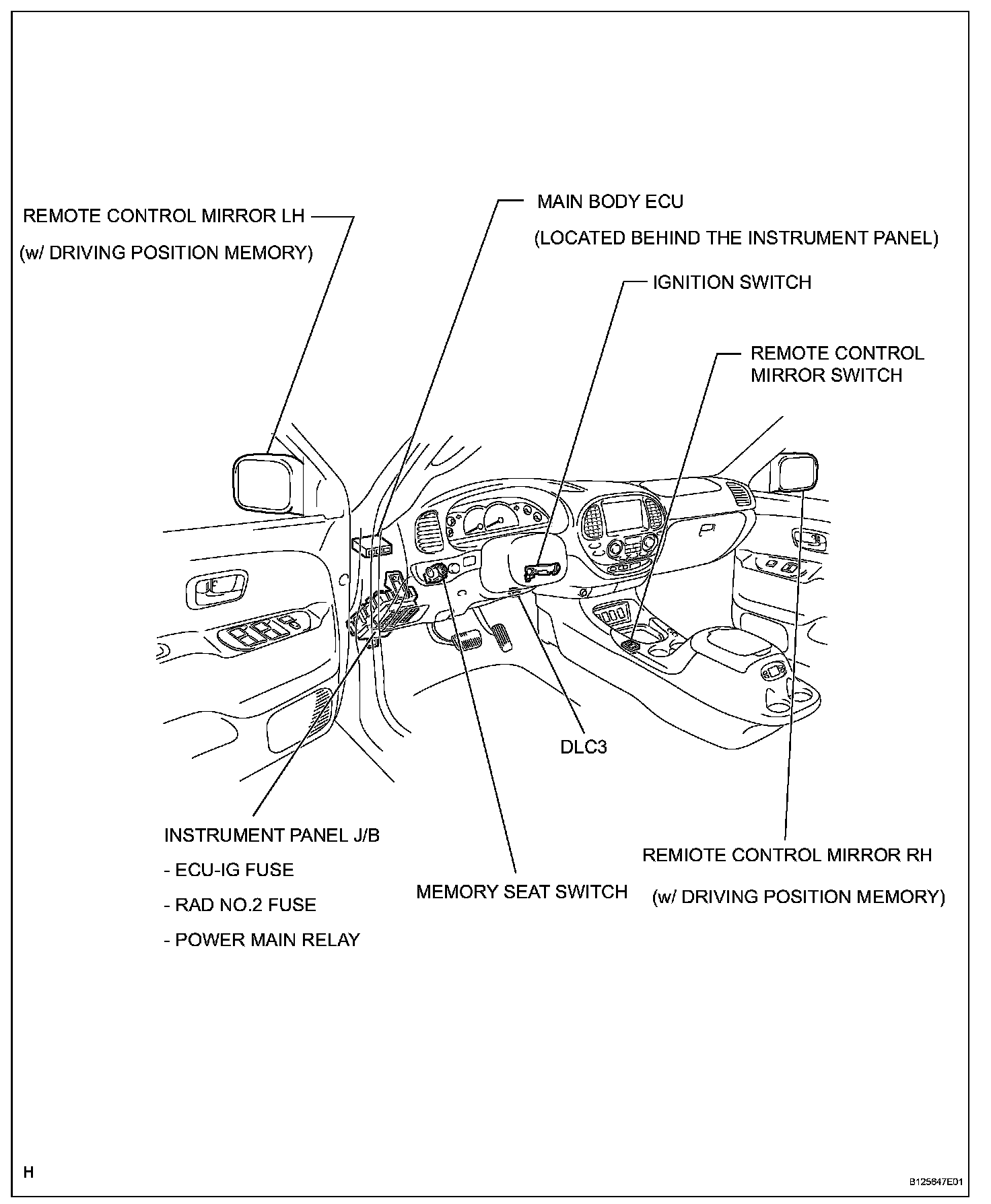

Power Mirror Control System (w/ Seat Position Memory System):
