Power Window Relay: Testing and Inspection

ON-VEHICLE INSPECTION

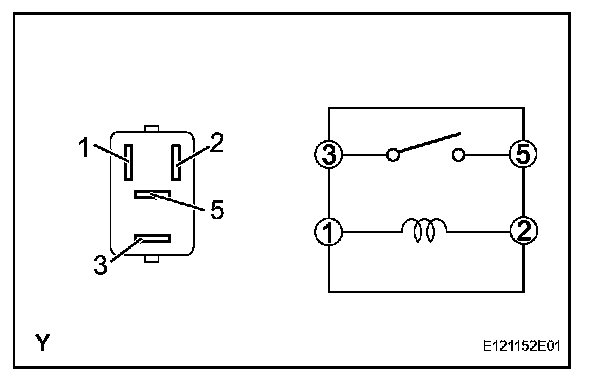

1. INSPECT POWER MAIN RELAY

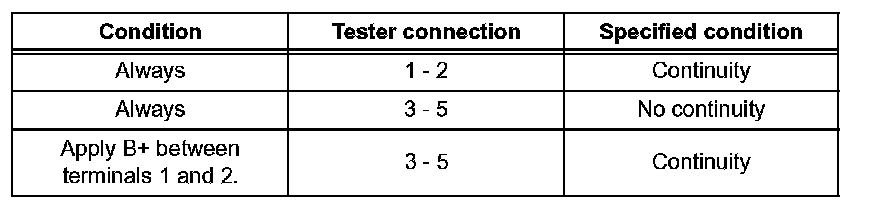

If continuity is not as specified, replace the relay.
