Network Gateway ECU:

NETWORK GATEWAY ECU

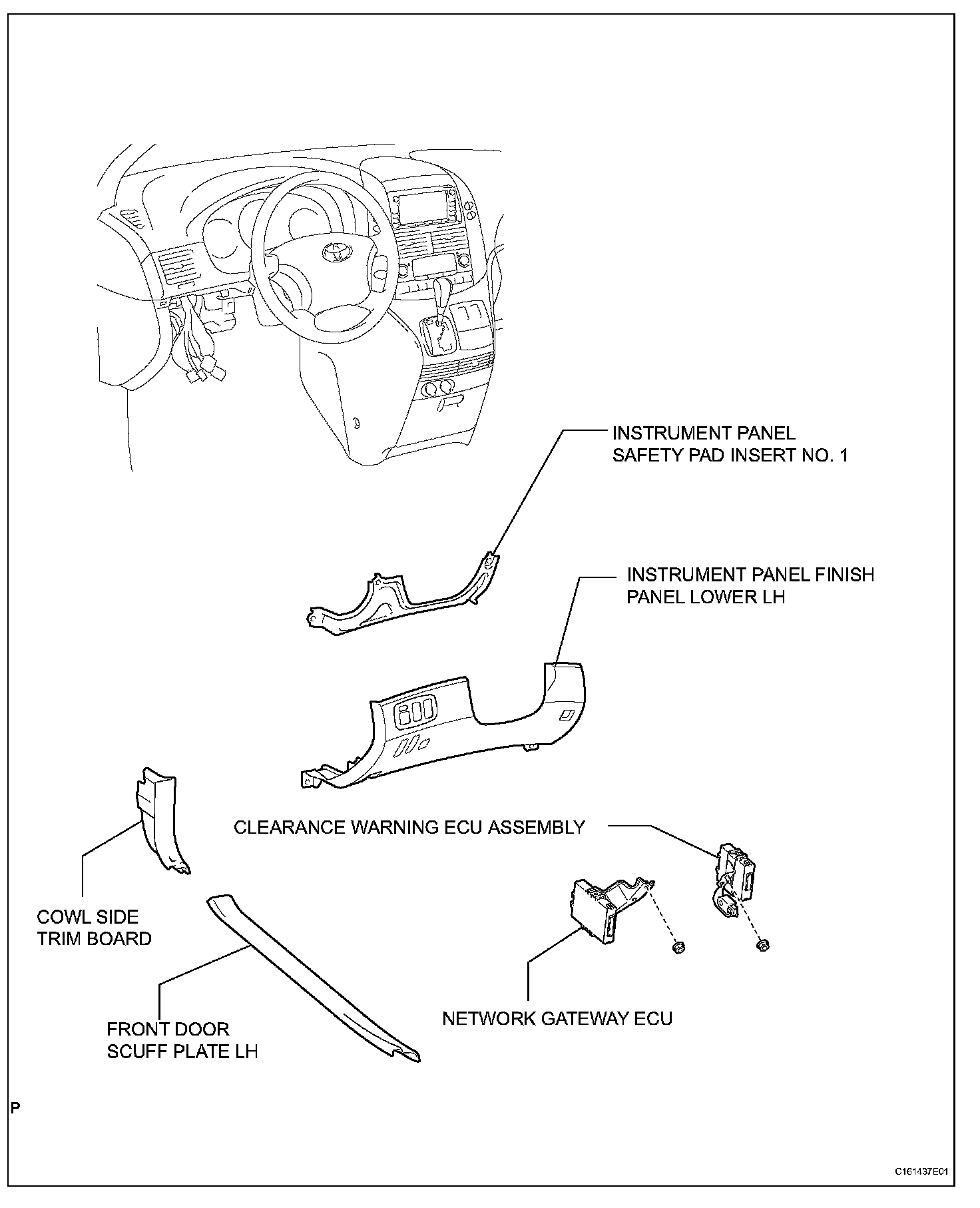

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH
2. REMOVE COWL SIDE TRIM BOARD LH
3. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER LH
4. REMOVE INSTRUMENT PANEL SAFETY PAD INSERT NO.1
5. REMOVE CLEARANCE WARNING ECU ASSEMBLY

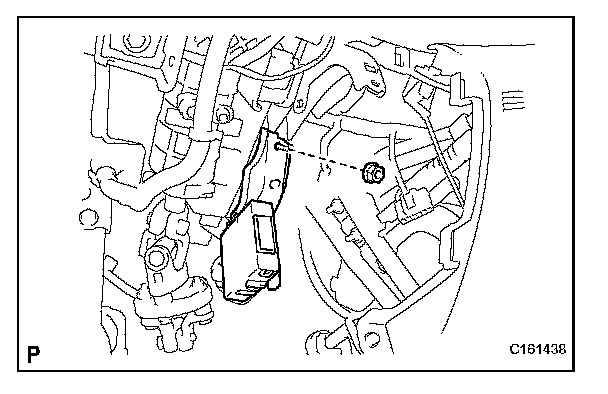

6. REMOVE NETWORK GATEWAY ECU
a. Disconnect each connector.




b. Remove the nut and network gateway ECU.


INSTALLATION

1. INSTALL NETWORK GATEWAY ECU




a. Install the network gateway ECU with the nut.
b. Connect the connector.

2. INSTALL CLEARANCE WARNING ECU ASSEMBLY
3. INSTALL PANEL SAFETY PAD INSERT NO.1
4. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER LH
5. REMOVE COWL SIDE TRIM BOARD LH
6. REMOVE FRONT DOOR SCUFF PLATE LH
