Seat Memory Switch

INSPECTION

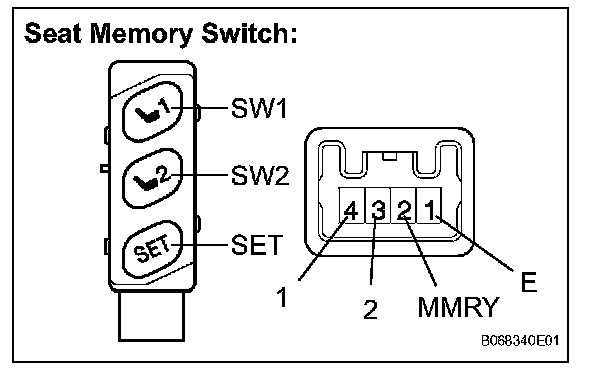

1. INSPECT SEAT MEMORY SWITCH

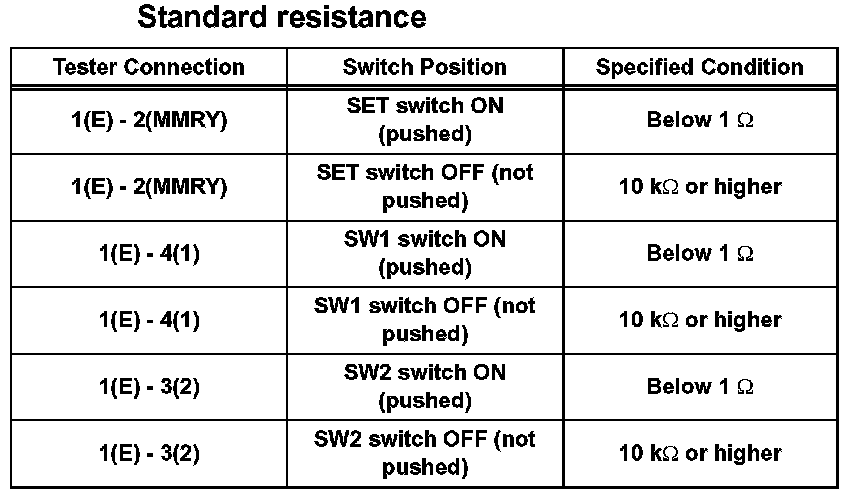

a. Measure the resistance according to the value(s) in the table below.





If the result is not as specified, replace the switch.
