Problem Symptoms Table
PROBLEM SYMPTOMS TABLEHINT:
- Use the table to help determine the cause of the problem symptom. The likely causes of the problem are indicated in descending order. Check each suspected area in order. Repair or replace faulty parts or perform adjustments as necessary.
- Inspect the fuse and relay related to this system before inspecting the suspected areas.

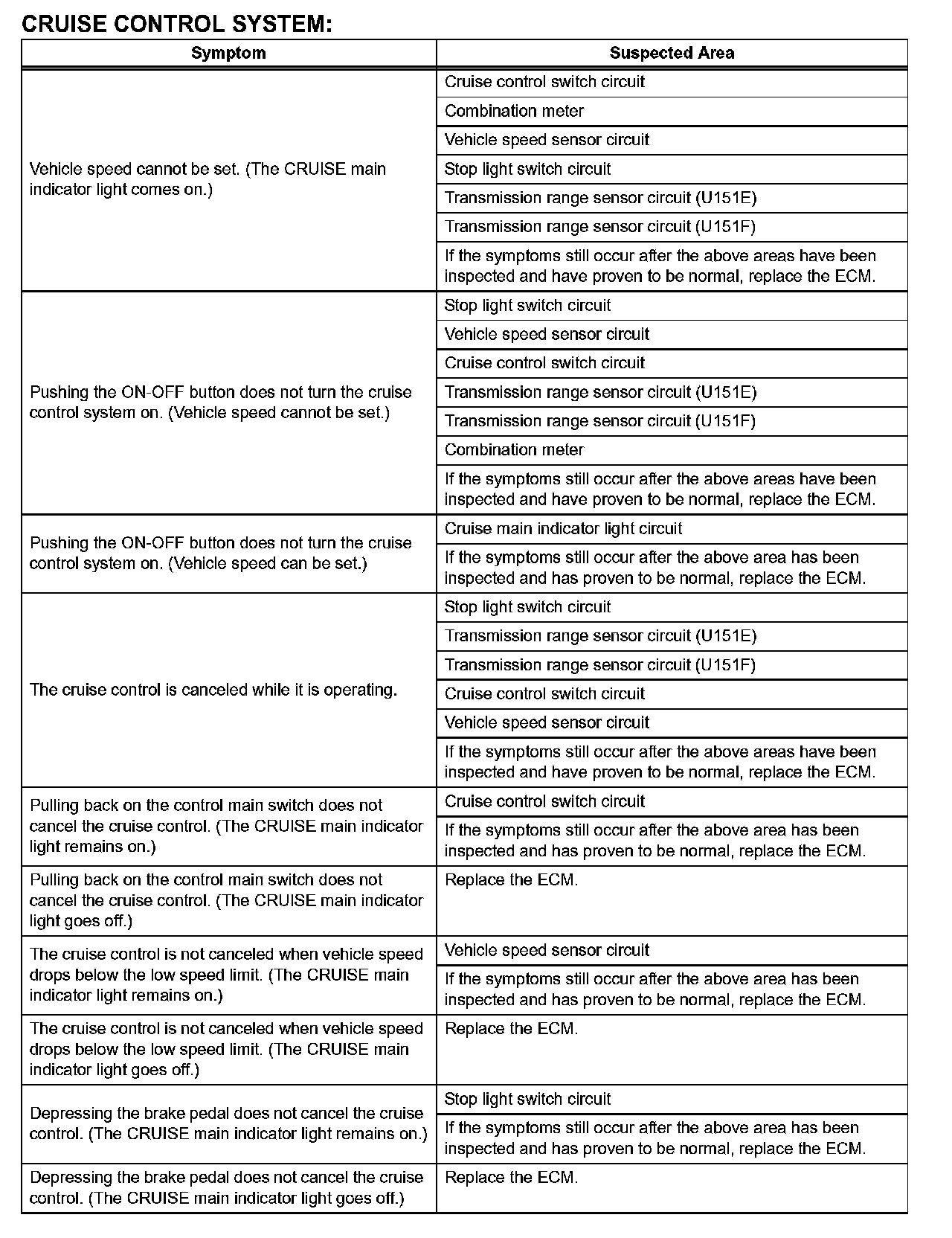

Problem Symptoms Table - Cruise Control System (Part 1):

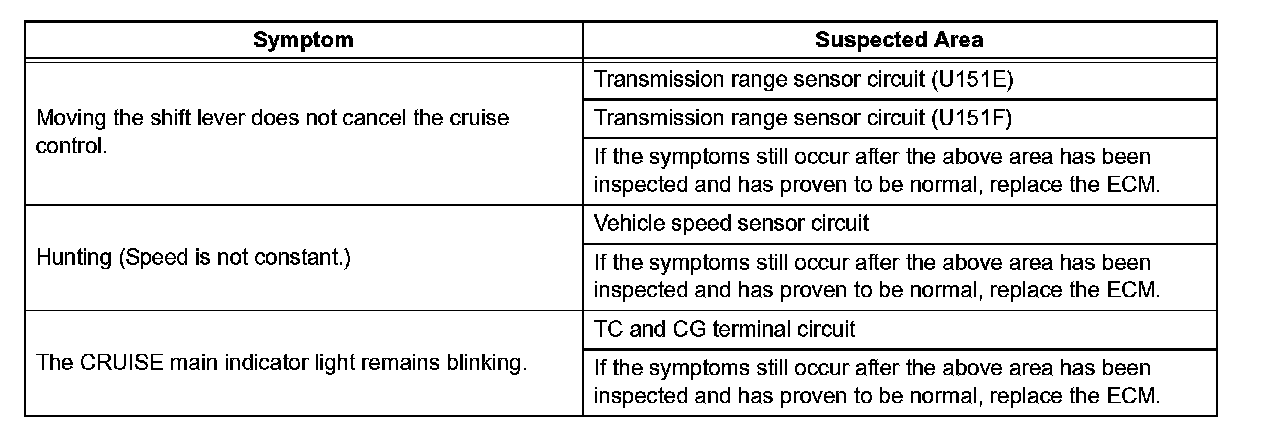

Problem Symptoms Table - Cruise Control System (Part 2):
