Air Conditioning Control Assembly

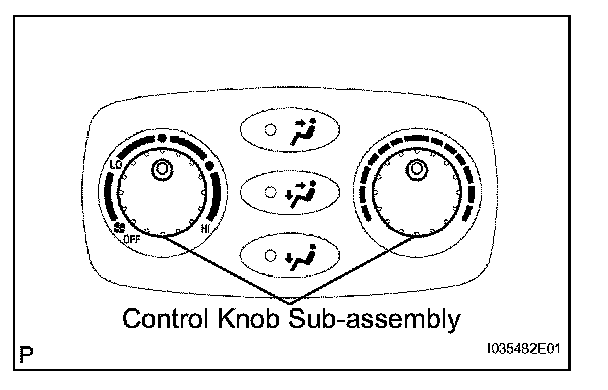

DISASSEMBLY1. REMOVE CONTROL KNOB SUB-ASSEMBLY (for Manual Air Conditioning System)
a. Remove the control knob sub-assembly.

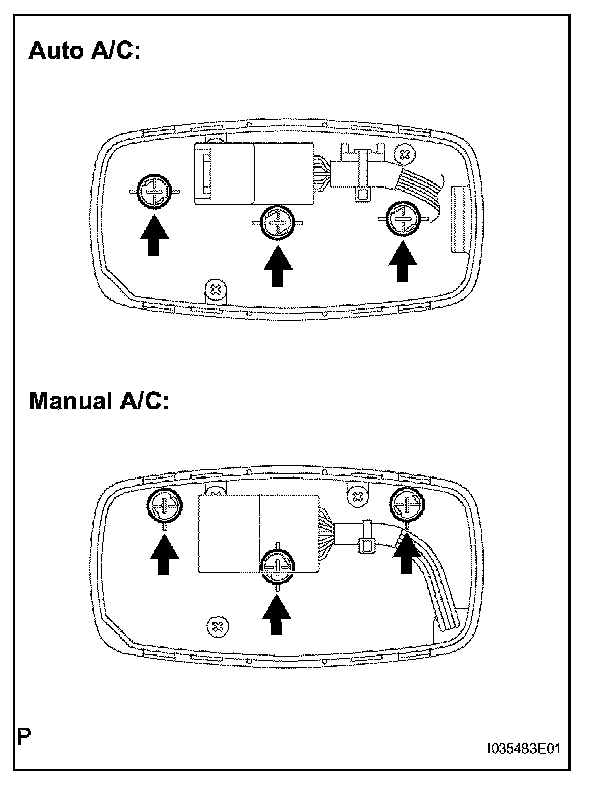

2. REMOVE AIR CONDITIONING CONTROL BULB
a. Remove the air conditioning control bulb.
1. REMOVE CONTROL KNOB SUB-ASSEMBLY (for Manual Air Conditioning System)
a. Remove the control knob sub-assembly.
2. REMOVE AIR CONDITIONING CONTROL BULB
a. Remove the air conditioning control bulb.
