Circuit Opening Relay
CIRCUIT OPENING RELAYINSPECTION

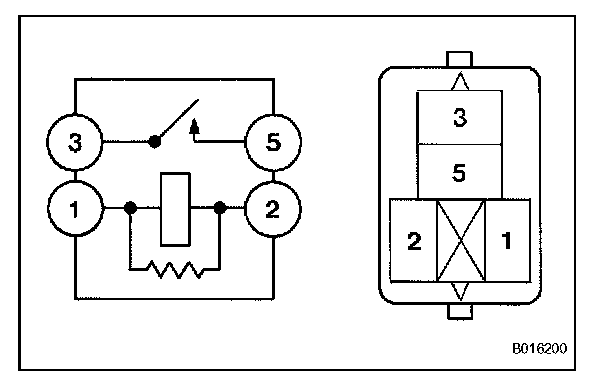

1. INSPECT CIRCUIT OPENING RELAY

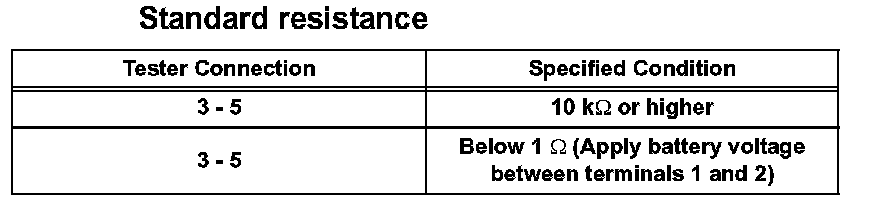

a. Using an ohmmeter, measure the resistance according to the value(s) in the table.
If the result is not as specified, replace the relay.
INSPECTION
1. INSPECT CIRCUIT OPENING RELAY
a. Using an ohmmeter, measure the resistance according to the value(s) in the table.
If the result is not as specified, replace the relay.
