EFI Relay

EFI RELAY

INSPECTION

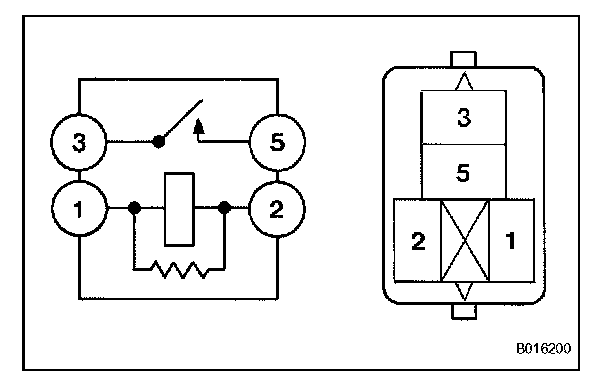

1. INSPECT EFI RELAY

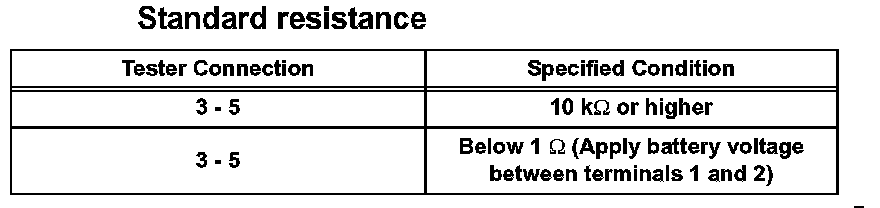

a. Using an ohmmeter, measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the relay.
