Ignition Coil: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. DRAIN ENGINE COOLANT
3. REMOVE FRONT WIPER ARM HEAD CAP
4. REMOVE FRONT WIPER ARM RH
5. REMOVE FRONT WIPER ARM LH
6. REMOVE COWL TOP VENTILATOR LOUVER SUBASSEMBLY
7. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
8. REMOVE NO. 1 COWL TOP TO COWL BRACE INNER
9. REMOVE COWL TOP PANEL SUB-ASSEMBLY OUTER FRONT
10. REMOVE NO. 1 ENGINE UNDER COVER
11. REMOVE V-BANK COVER SUB-ASSEMBLY
12. REMOVE AIR CLEANER CAP SUB-ASSEMBLY
13. REMOVE INTAKE AIR SURGE TANK ASSEMBLY
14. REMOVE NO. 1 SURGE TANK STAY

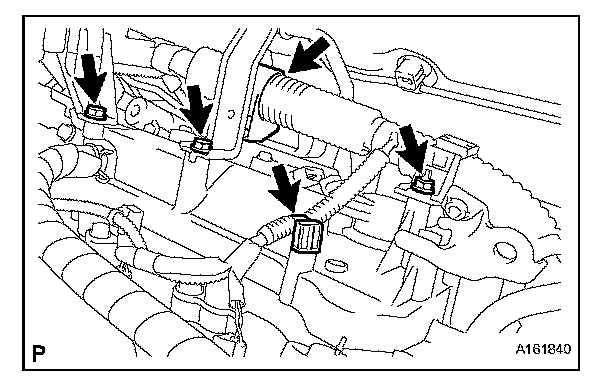

a. Remove the 2 bolts and nut and disconnect the 2 harness clamps.

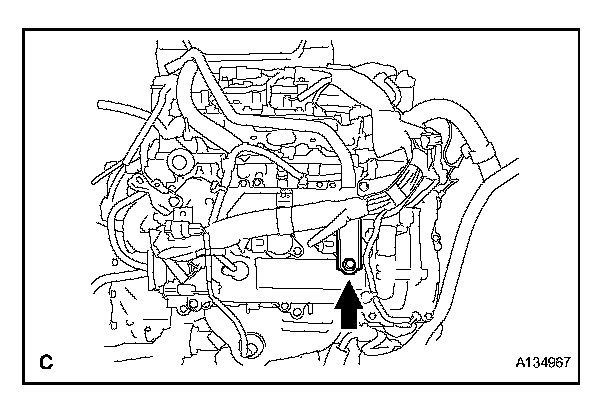

b. Remove the bolt and No. 1 surge tank stay.

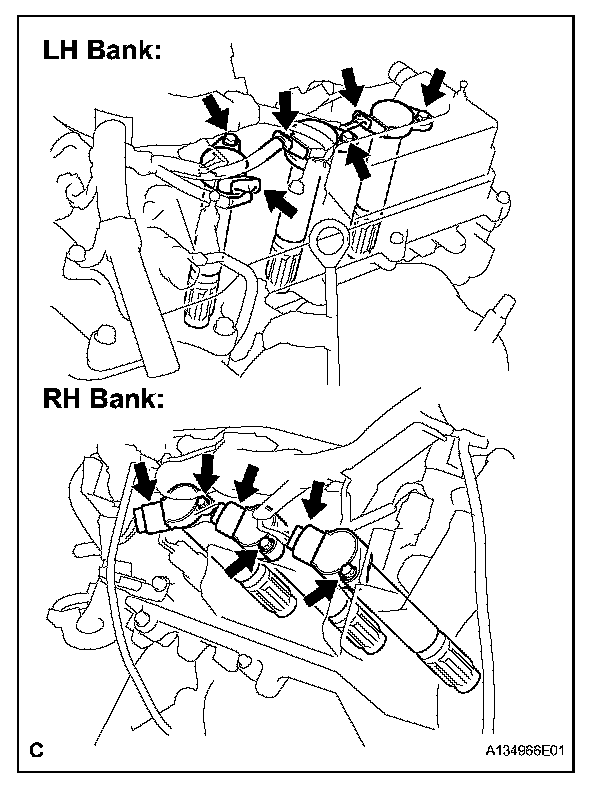

15. REMOVE IGNITION COIL ASSEMBLY
a. Disconnect the 6 ignition coil connectors.
b. Remove the 6 bolts and 6 ignition coils.

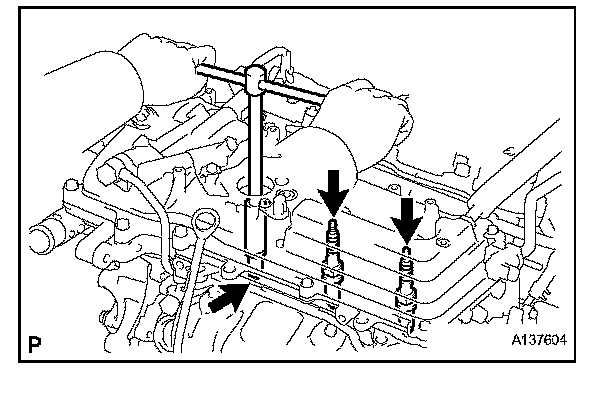

16. REMOVE SPARK PLUG
a. Remove the 6 spark plugs.
INSTALLATION

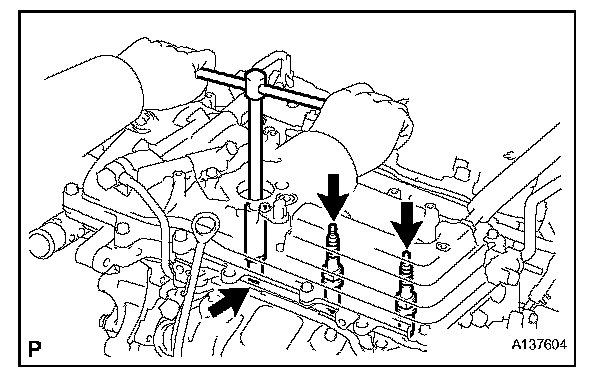

1. INSTALL SPARK PLUG
a. Install the 6 spark plugs.
Torque: 18 Nm (183 kgf.cm, 13 ft. lbs.)

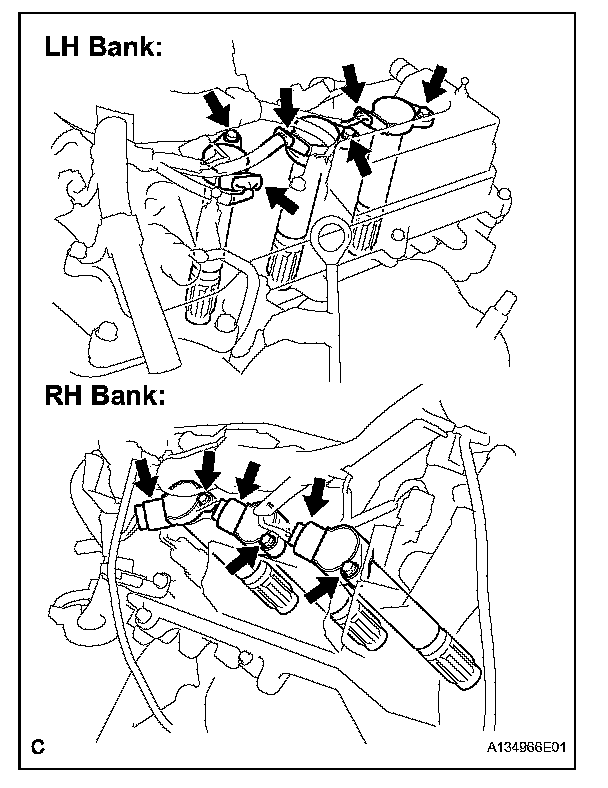

2. INSTALL IGNITION COIL ASSEMBLY
a. Install the 6 ignition coils with the 6 bolts.
Torque: 10 Nm (102 kgf.cm, 7 ft. lbs.)
b. Connect the 6 ignition coil connectors.
3. INSTALL NO. 1 SURGE TANK STAY
NOTE: DO NOT apply oil to the bolt listed below:
Tightening Parts
No. 1 surge tank stay and cylinder head cover

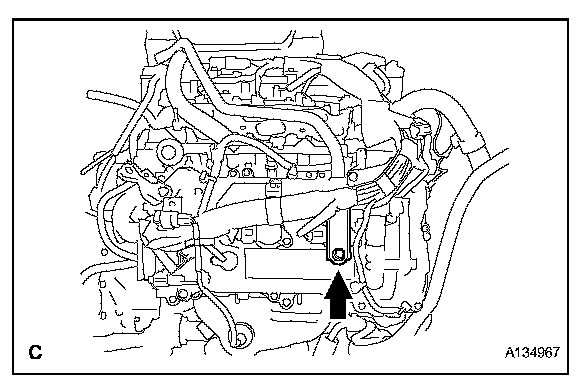

a. Install the No. 1 surge tank stay with the bolt.
Torque: 21 Nm (214 kgf.cm, 15 ft. lbs.)
b. Install the 2 bolts, 2 clamps, and nut.
Torque: 8.3 Nm (84 kgf.cm, 73 in. lbs.)
4. INSTALL INTAKE AIR SURGE TANK ASSEMBLY
5. INSTALL AIR CLEANER CAP SUB-ASSEMBLY
6. ADD ENGINE COOLANT
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. INSPECT FOR ENGINE COOLANT LEAK
9. INSTALL V-BANK COVER SUB-ASSEMBLY
10. INSTALL COWL TOP PANEL SUB-ASSEMBLY OUTER FRONT
11. INSTALL NO. 1 COWL TOP TO COWL BRACE INNER.
12. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
13. INSTALL FRONT WIPER ARM LH
14. INSTALL FRONT WIPER ARM RH
