Replacement

REPLACEMENT

1. REPLACE GENERATOR DRIVE END FRAME BEARING

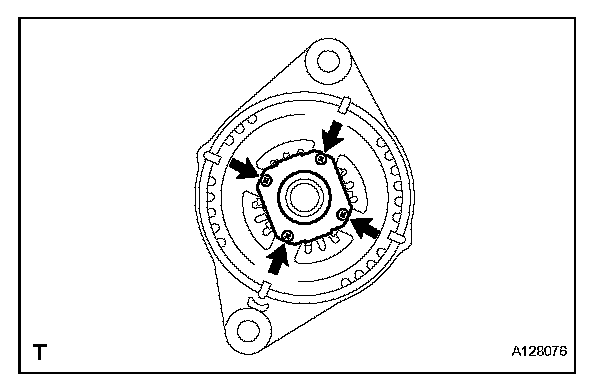

a. Remove the 4 screws and retainer plate from the drive end frame.

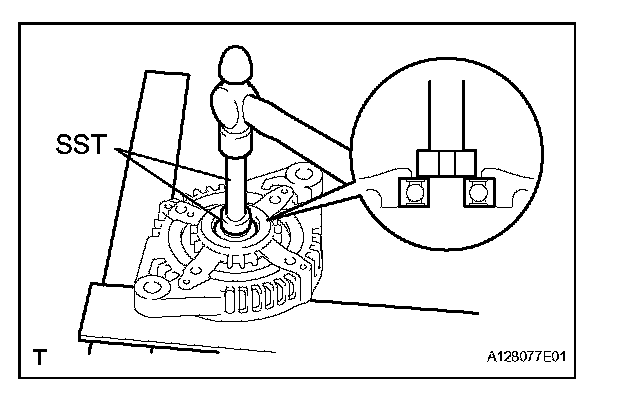

b. Using SST and a hammer, tap out the drive end frame bearing from the drive end frame.

SST 09950-60010 (09951-00250), 09950-70010 (09951-07100)

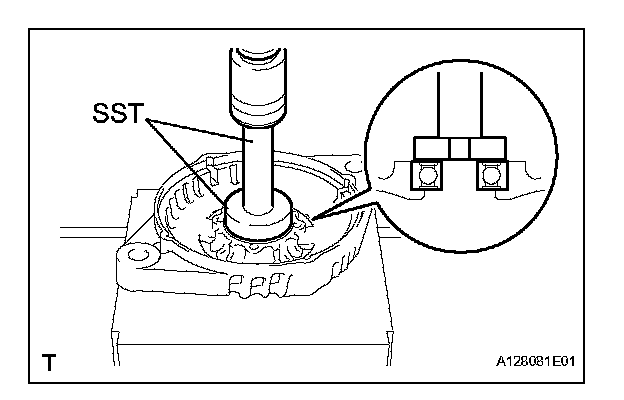

c. Using SST and a press, press in a new generator drive end frame bearing.

SST 09950-60010 (09951-00470), 09950-70010 (09951-07100)

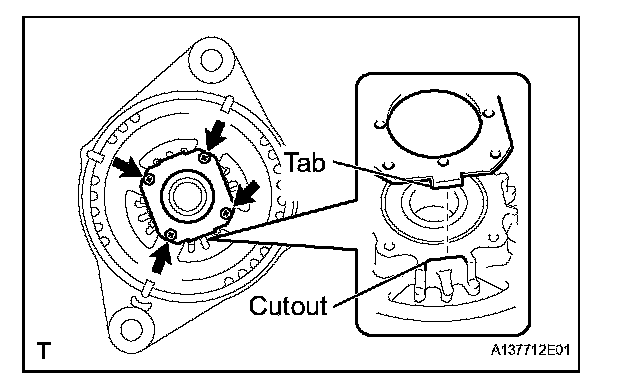

d. Fit the tabs on the retainer plate into the cutouts on the drive end frame to install the retainer plate. Install the 4 screws.

Torque: 2.3 N.m (23 kgf.cm, 20 in.lbf)
