CAN Communication System

TERMINALS OF ECU

1. JUNCTION CONNECTOR

Terminals Of Control Module/Pinouts - Junction Connector (Part 1):




Terminals Of Control Module/Pinouts - Junction Connector (Part 2):

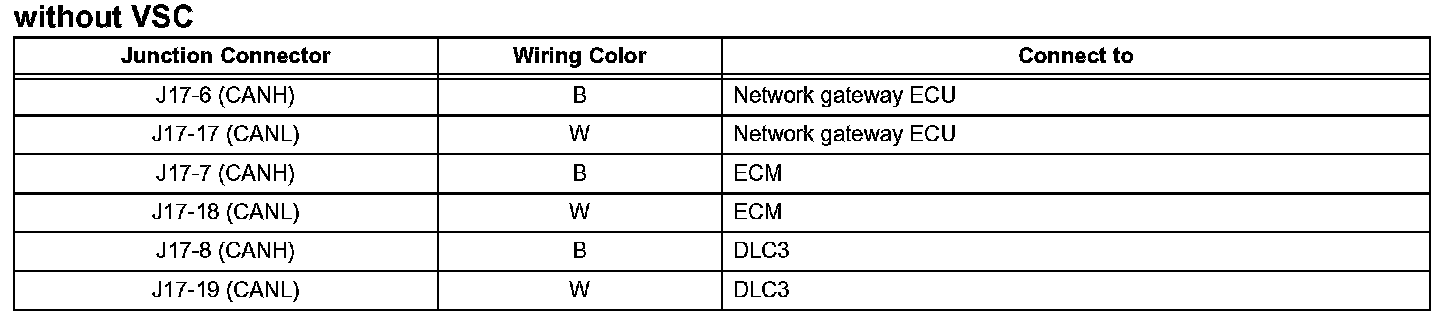

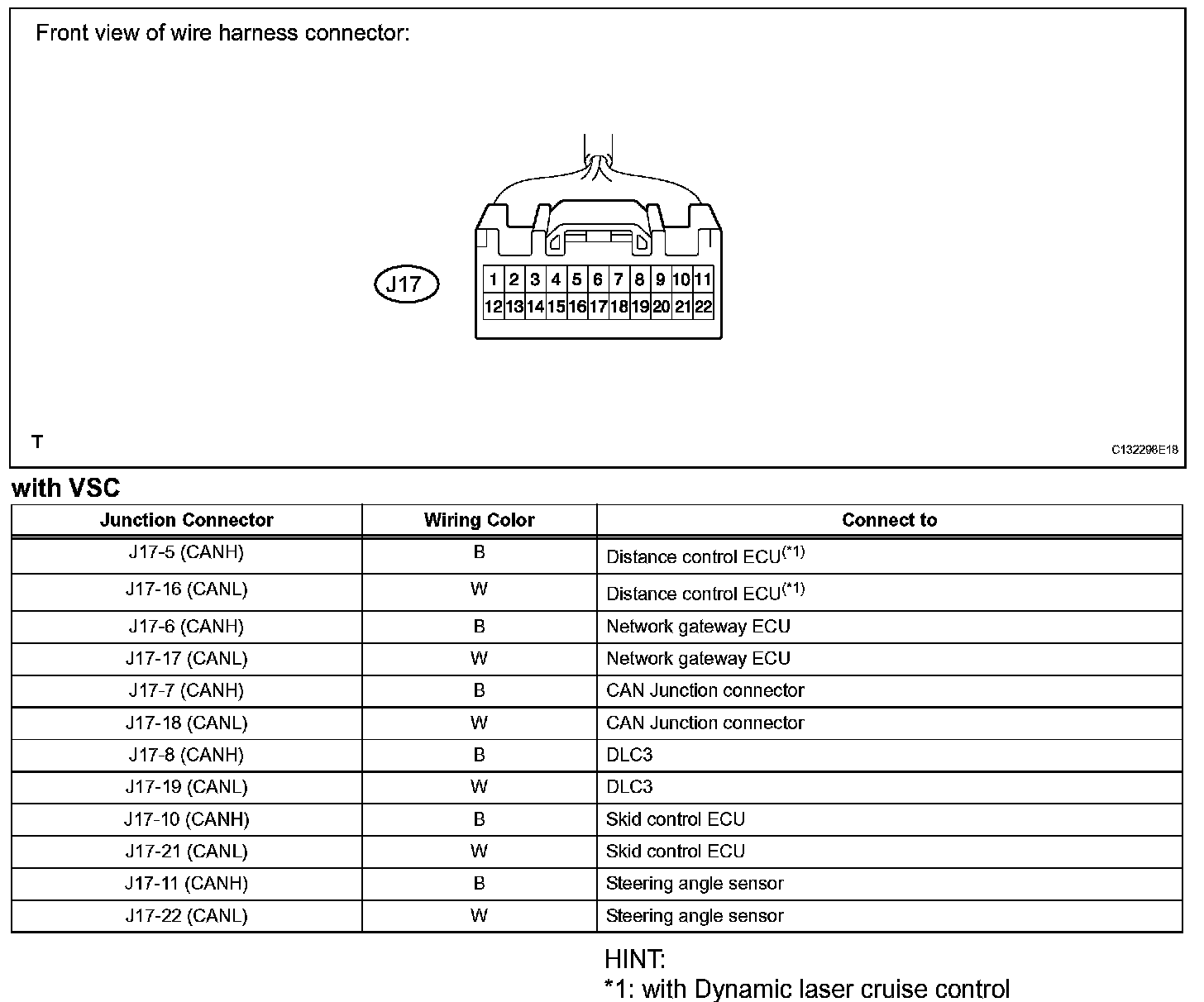

a. Junction connector

Terminals Of Control Module/Pinouts - Junction Connector (Part 3):

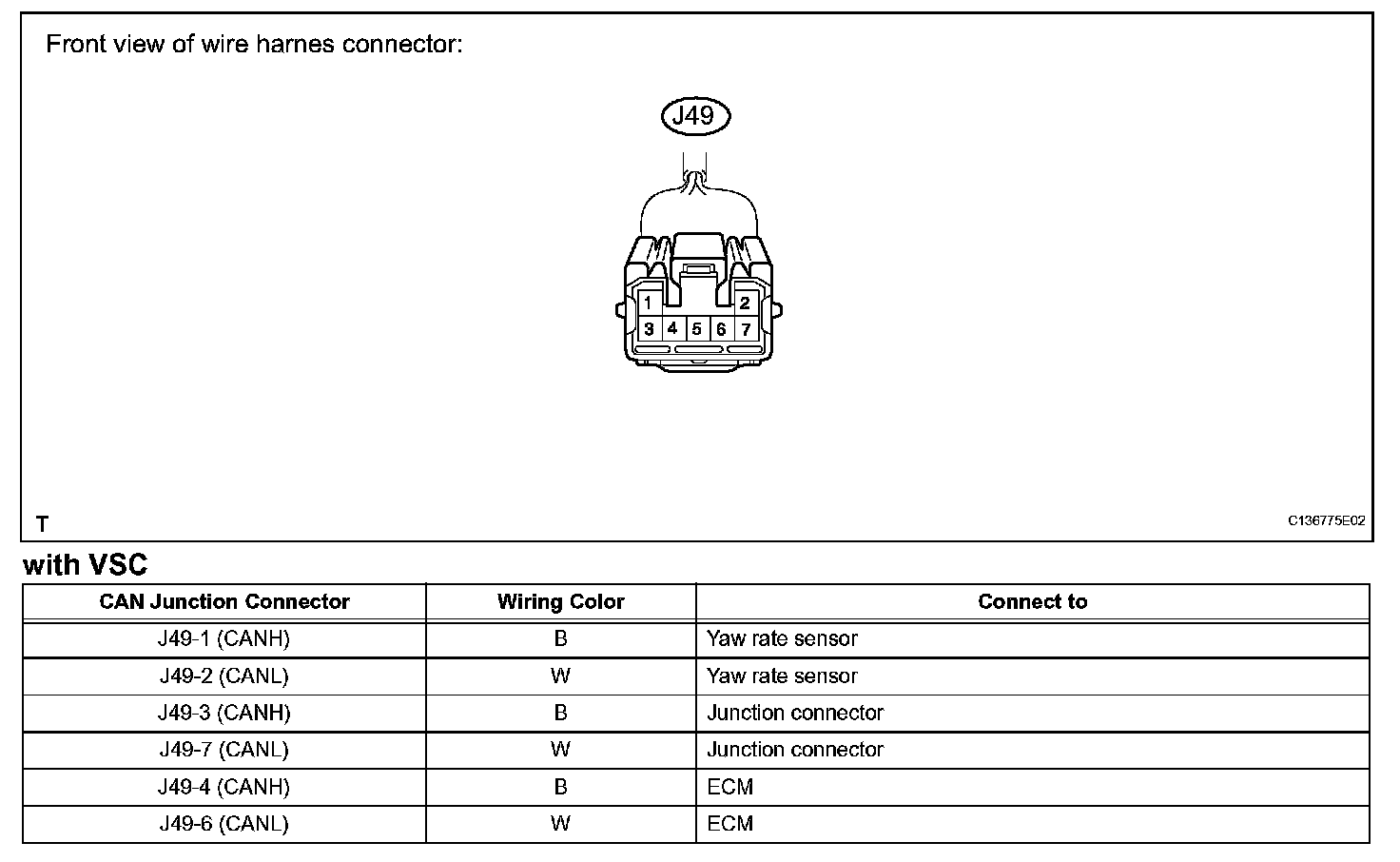

b. CAN junction connector (with VSC)

Terminals Of Control Module/Pinouts - Junction Connector (Part 4):

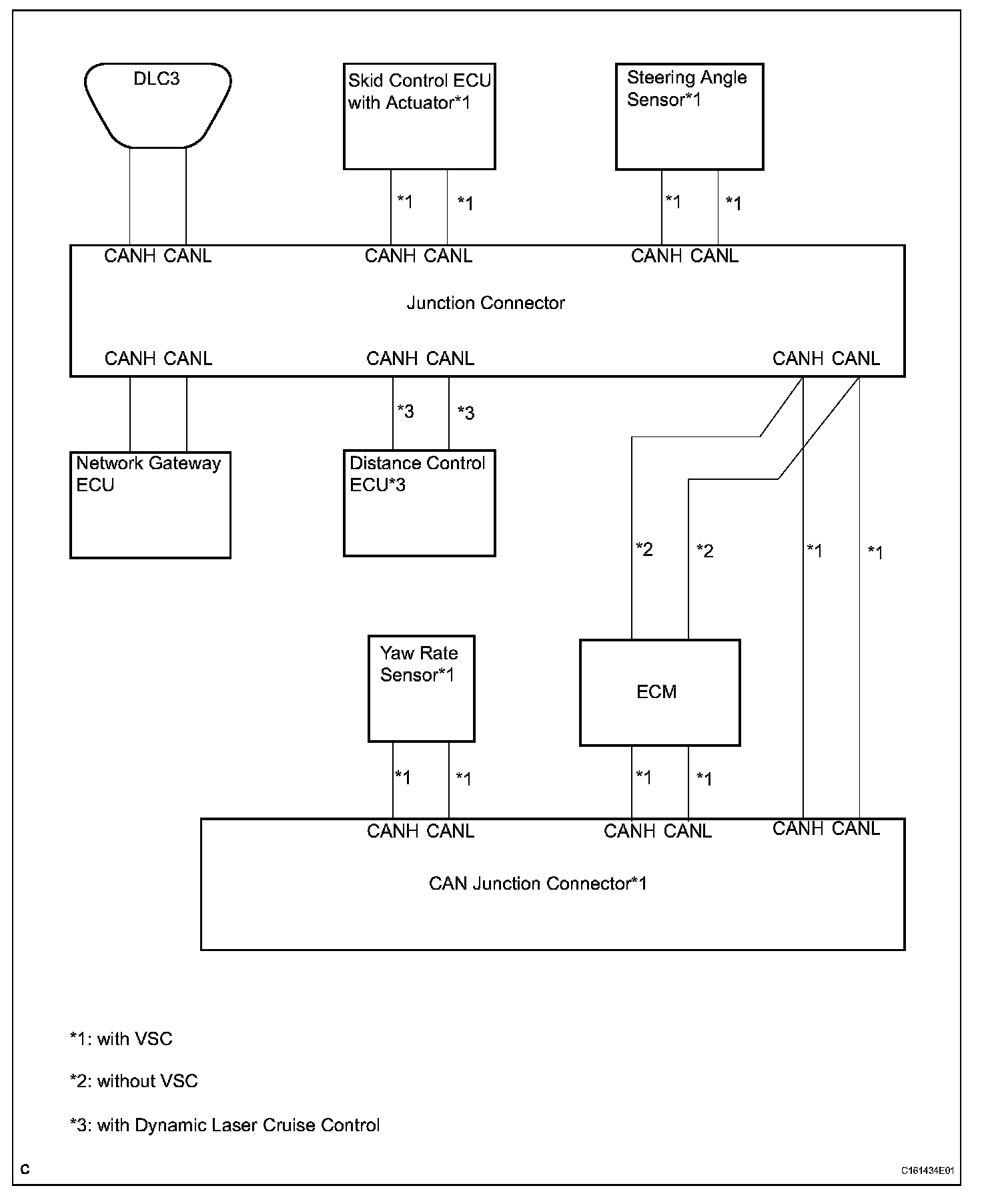

c. The connection diagram of the components which are connected to the CAN junction connector.

2. DLC3

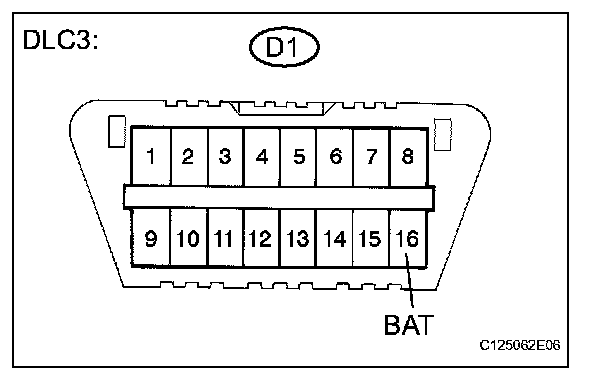

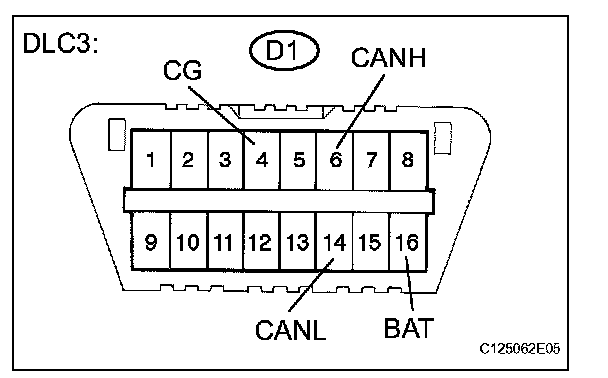

Terminals Of Control Module/Pinouts - DLC3 (Part 1):




Terminals Of Control Module/Pinouts - DLC3 (Part 2):

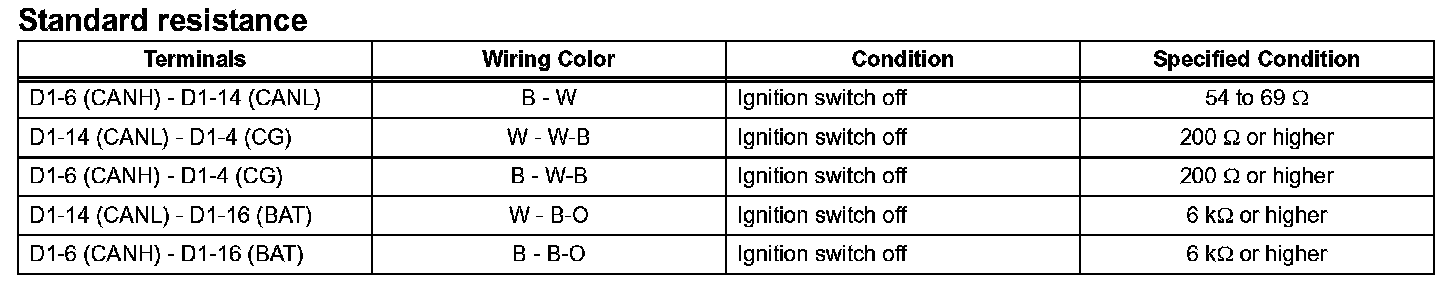

a. Measure the resistance according to the value(s) in the table.

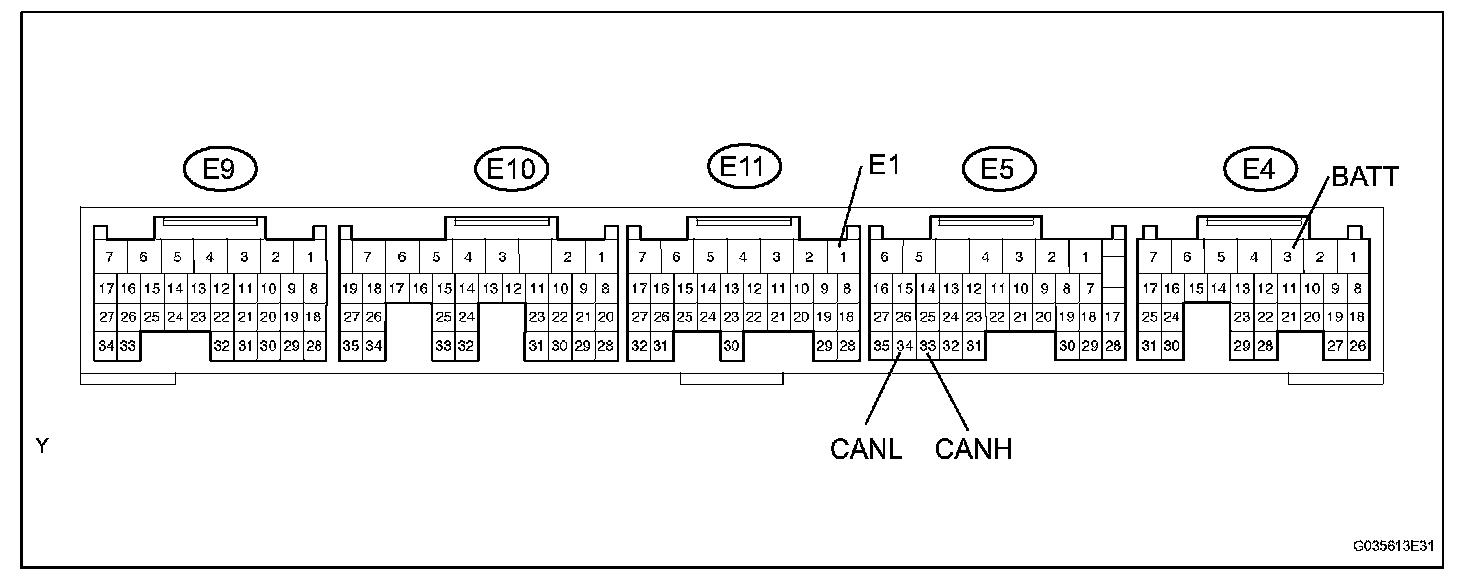

3. ECM

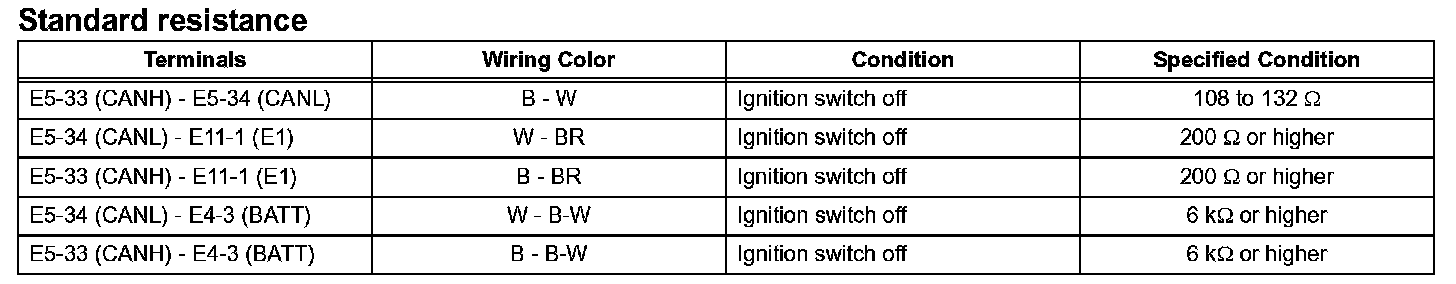

Terminals Of Control Module/Pinouts - ECM (Part 1):




a. Disconnect the connector from the ECM.

Terminals Of Control Module/Pinouts - ECM (Part 2):




b. Measure the resistance according to the value(s) in the table.

4. NETWORK GATEWAY ECU

Terminals Of Control Module/Pinouts - Network Gateway ECU (Part 1):




a. Disconnect the connector from the network gateway ECU.

Terminals Of Control Module/Pinouts - Network Gateway ECU (Part 2):




b. Measure the resistance according to the value(s) in the table.

5. SKID CONTROL ECU WITH ACTUATOR

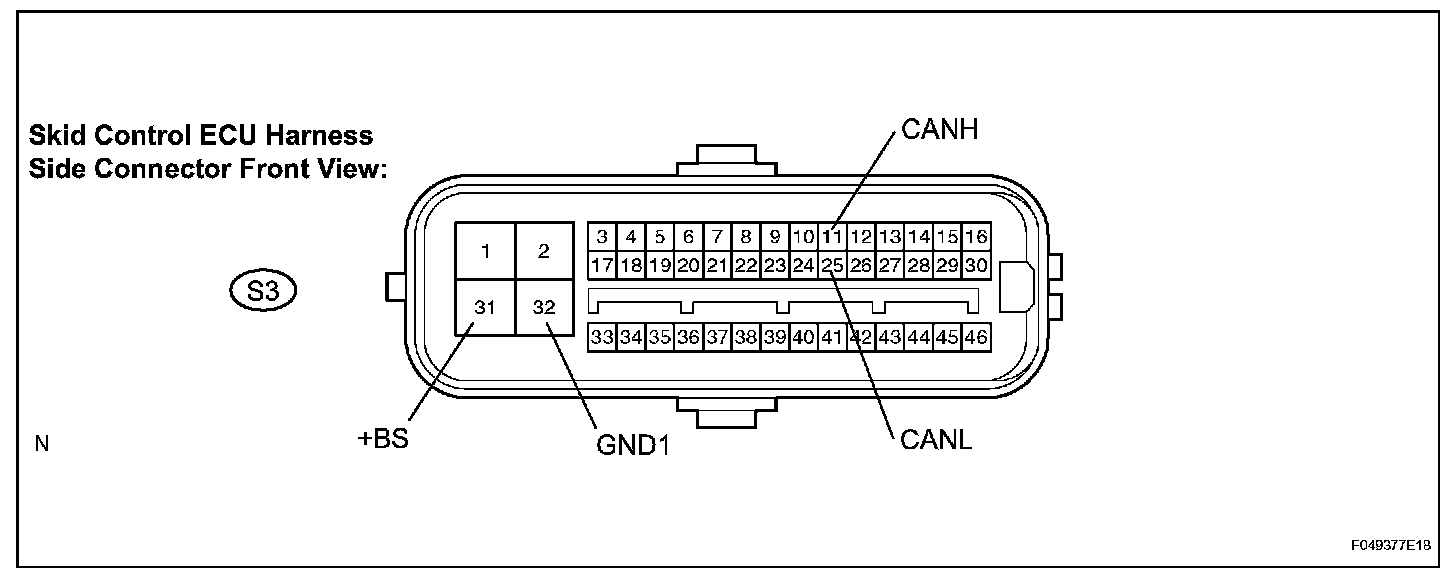

Terminals Of Control Module/Pinouts - Skid Control ECU With Actuator (Part 1):




a. Disconnect the connector from the skid control ECU with actuator.

Terminals Of Control Module/Pinouts - Skid Control ECU With Actuator (Part 2):




Terminals Of Control Module/Pinouts - Skid Control ECU With Actuator (Part 3):




b. Measure the resistance according to the value(s) in the table.

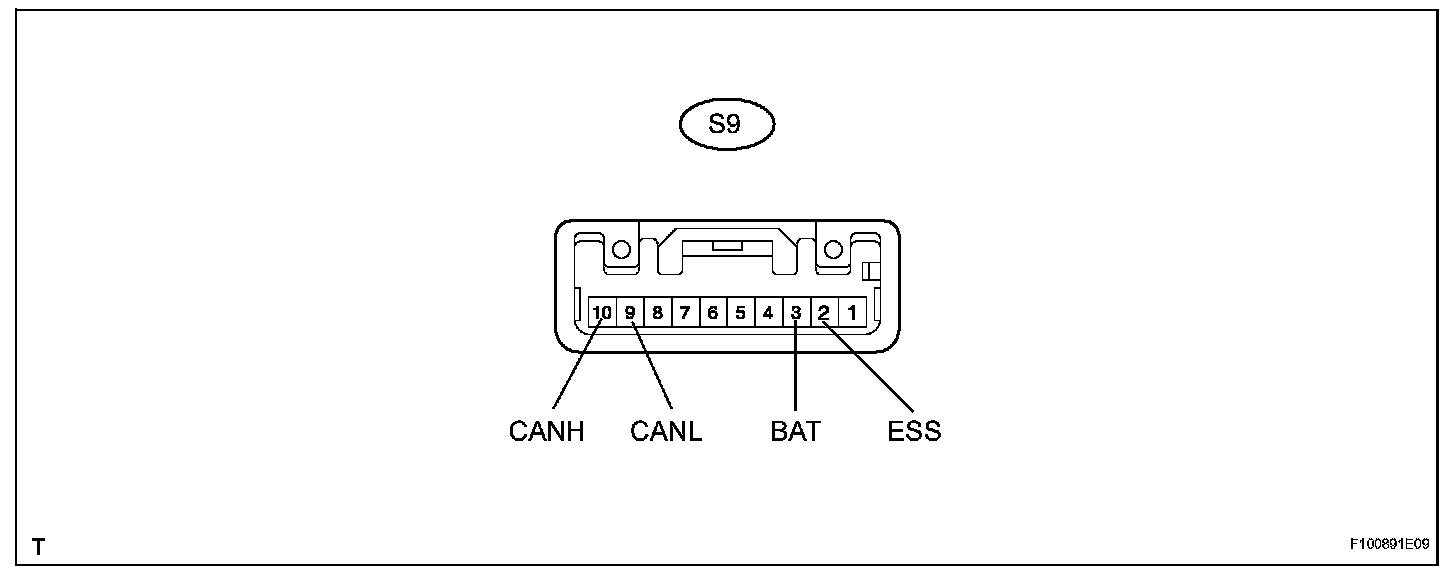

6. STEERING ANGLE SENSOR

Terminals Of Control Module/Pinouts -Steering Angle Sensor (Part 1):




a. Disconnect the connector from the steering angle sensor.

Terminals Of Control Module/Pinouts -Steering Angle Sensor (Part 2):

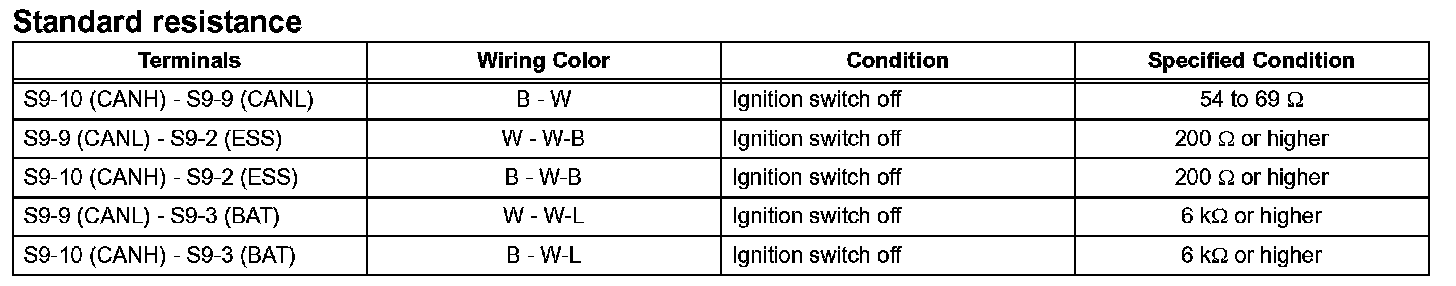

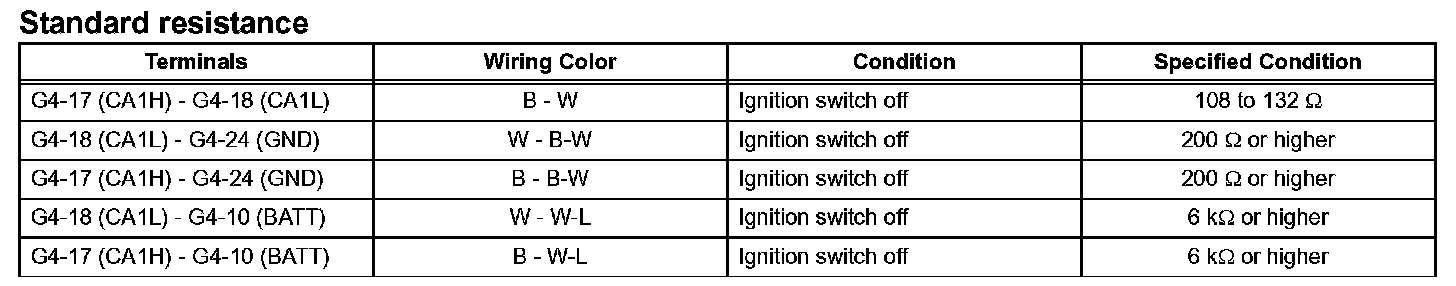

b. Measure the resistance according to the value(s) in the table.

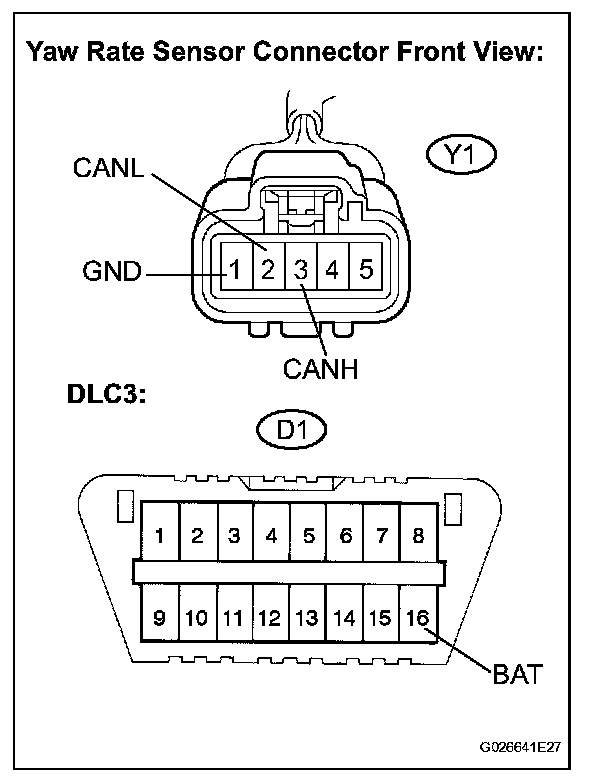

7. YAW RATE SENSOR

Terminals Of Control Module/Pinouts - Yaw Rate Sensor (Part 1):




a. Disconnect the connector from the yaw rate sensor

Terminals Of Control Module/Pinouts - Yaw Rate Sensor (Part 2):




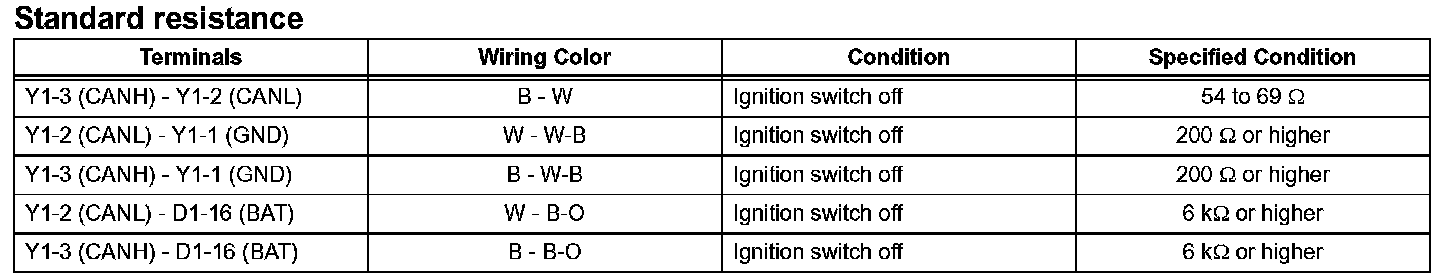

b. Measure the resistance according to the value(s) in the table.

8. DISTANCE CONTROL ECU

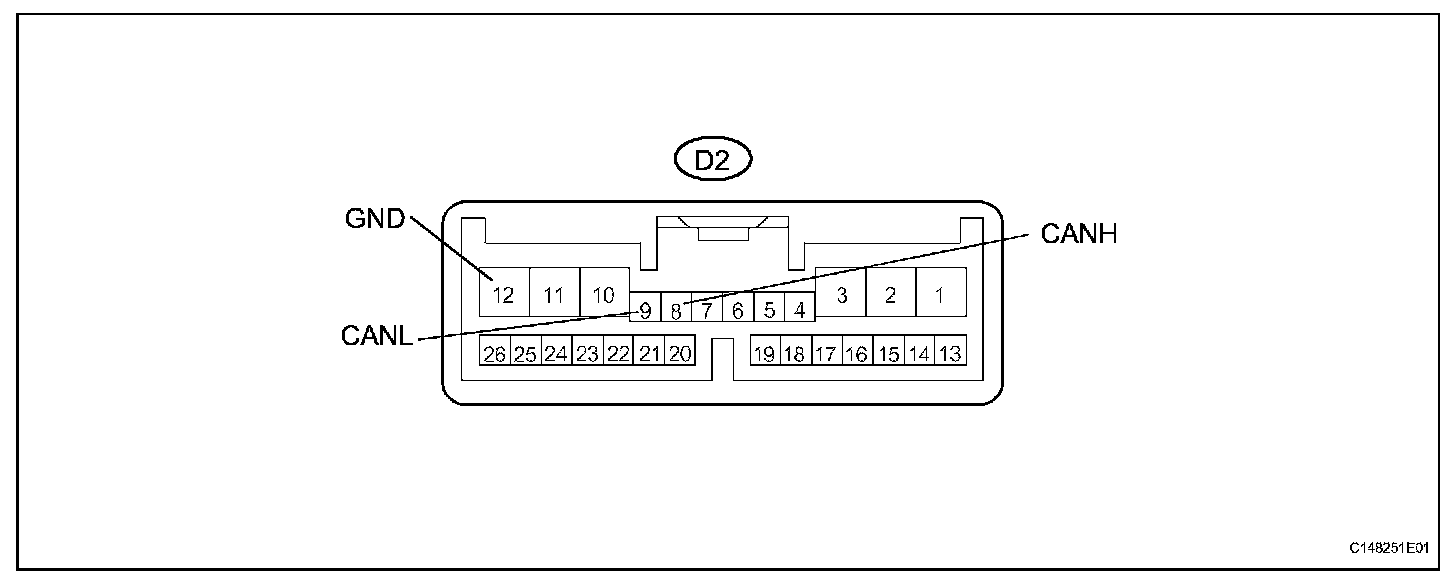

Terminals Of Control Module/Pinouts - Distance Control ECU (Part 1):




a. Disconnect the connector from the distance control ECU.

Terminals Of Control Module/Pinouts - Distance Control ECU (Part 2):




Terminals Of Control Module/Pinouts - Distance Control ECU (Part 3):




b. Measure the resistance according to the value(s) in the table.
