Ignition Switch: Service and Repair

Igintion Switch:

Ignition Switch:

Ignition Switch

REMOVAL

HINT: The installation procedures are the removal procedures in reverse order.

1. DISCONNECT BATTERY NEGATIVE TERMINAL

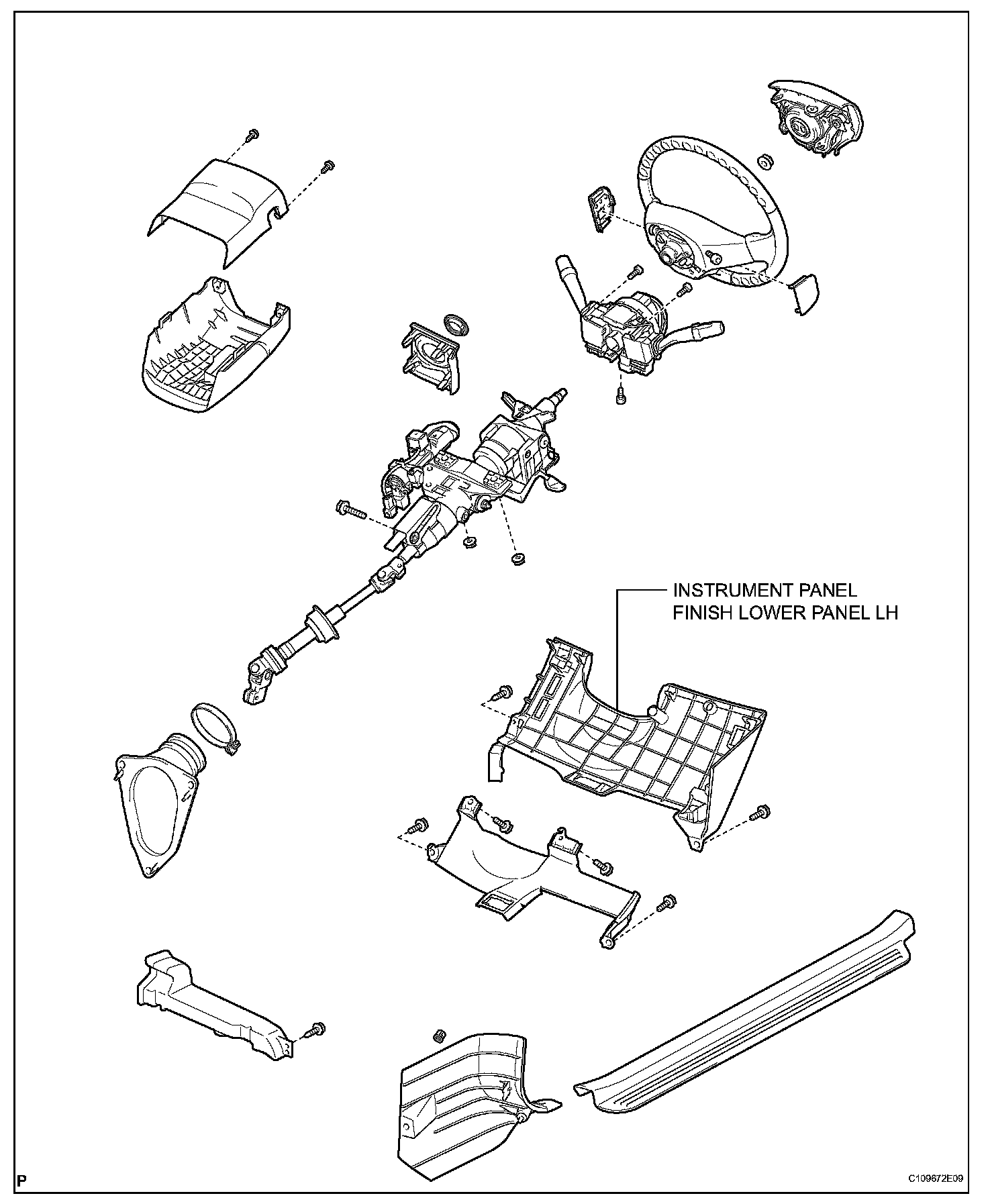

2. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL LH

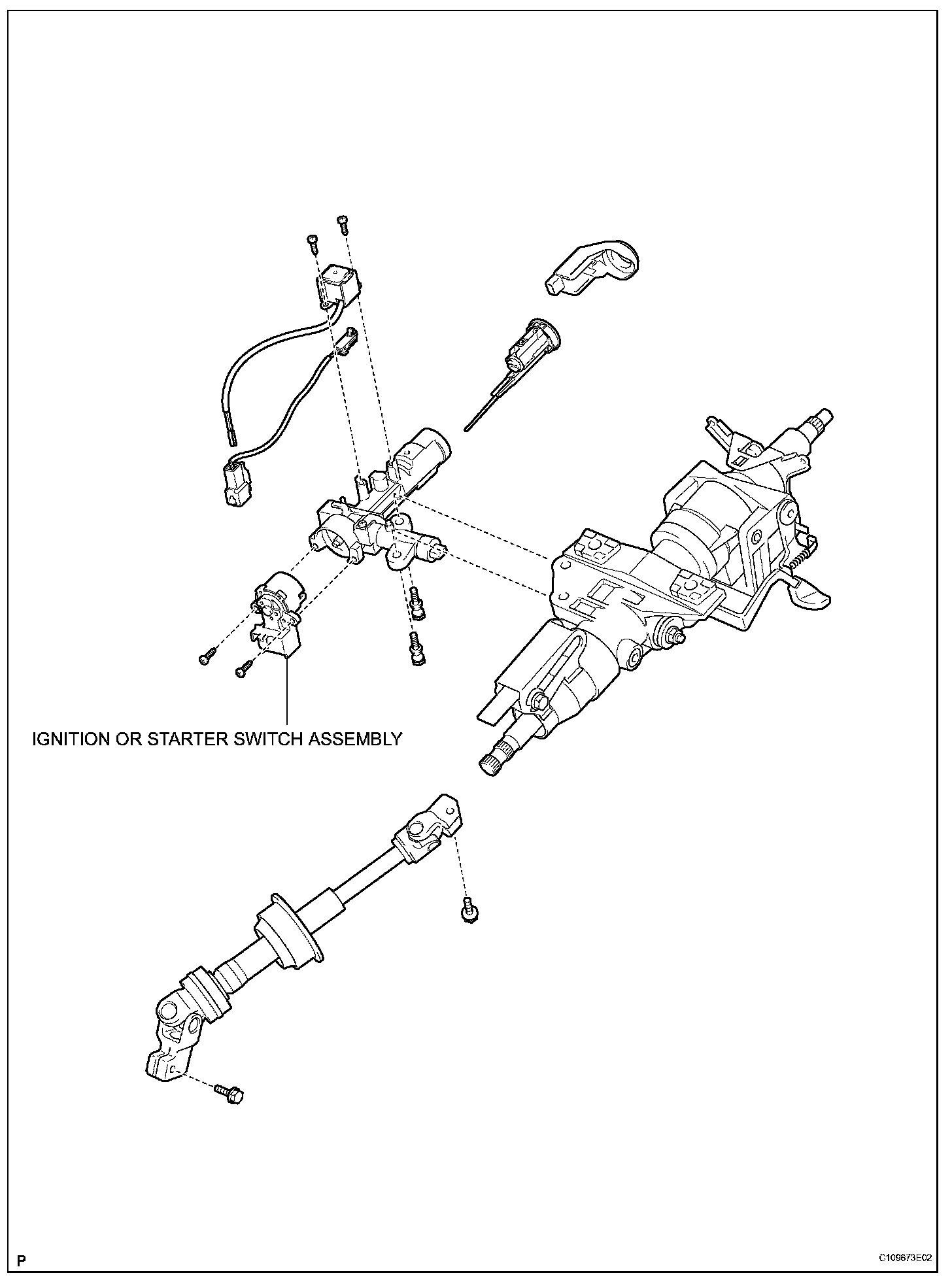

3. REMOVE IGNITION OR STARTER SWITCH ASSEMBLY

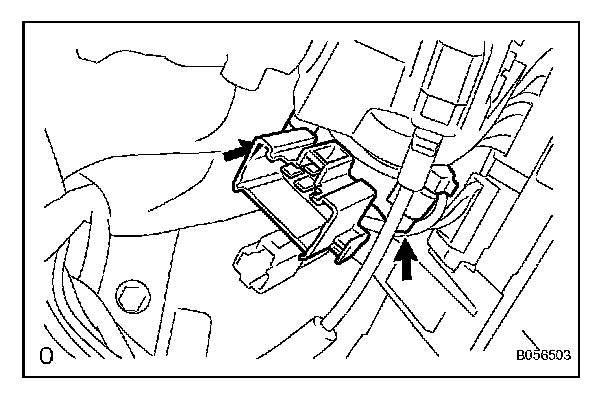

a. Disconnect the ignition switch connector and unlock warning switch connector.
b. Remove the clamp.
c. Remove the 2 screws and ignition switch.

INSTALLATION

1. INSTALL IGNITION OR STARTER SWITCH ASSEMBLY
2. INSTALL INSTRUMENT PANEL FINISH LOWER PANEL LH
3. CONNECT BATTERY NEGATIVE TERMINAL
4. PERFORM INITIALIZATION
