EFI Relay

INSPECTION

INSPECT EFI RELAY
a. Check the resistance.

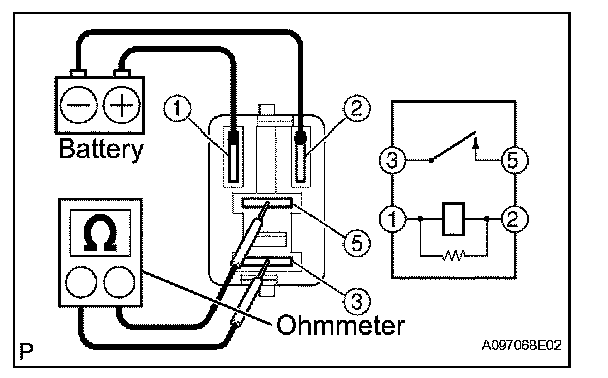

1. Using an ohmmeter, measure the resistance between the terminals.

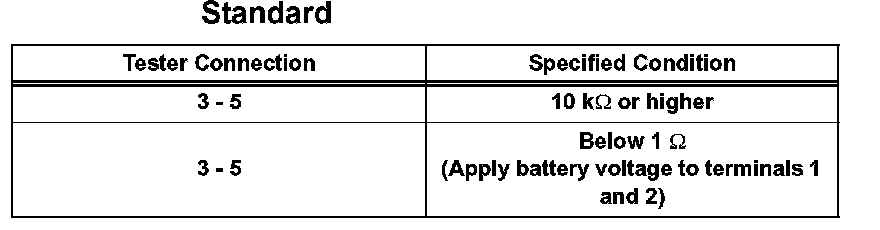

If the result is not as specified, replace the E.F.I. relay.
