Symptom Related Diagnostic Procedures
PROBLEM SYMPTOMS TABLEHINT: If no DTCs are displayed during the diagnostic trouble code check although the trouble still occurs, check the electrical circuits for each symptom in the order given in the charts and proceed to troubleshooting.
The Matrix Chart is divided into 2 chapters.
Chapter 1: Electronic Circuit Matrix Chart
^ Refer to the table below when the cause of trouble is considered to be electrical.
^ If the trouble still occurs even though there are no abnormalities in any of the other circuits, check and replace the ECM.
HINT: *1: Denotes that when there are malfunctions in the circuit, DTCs may be set.

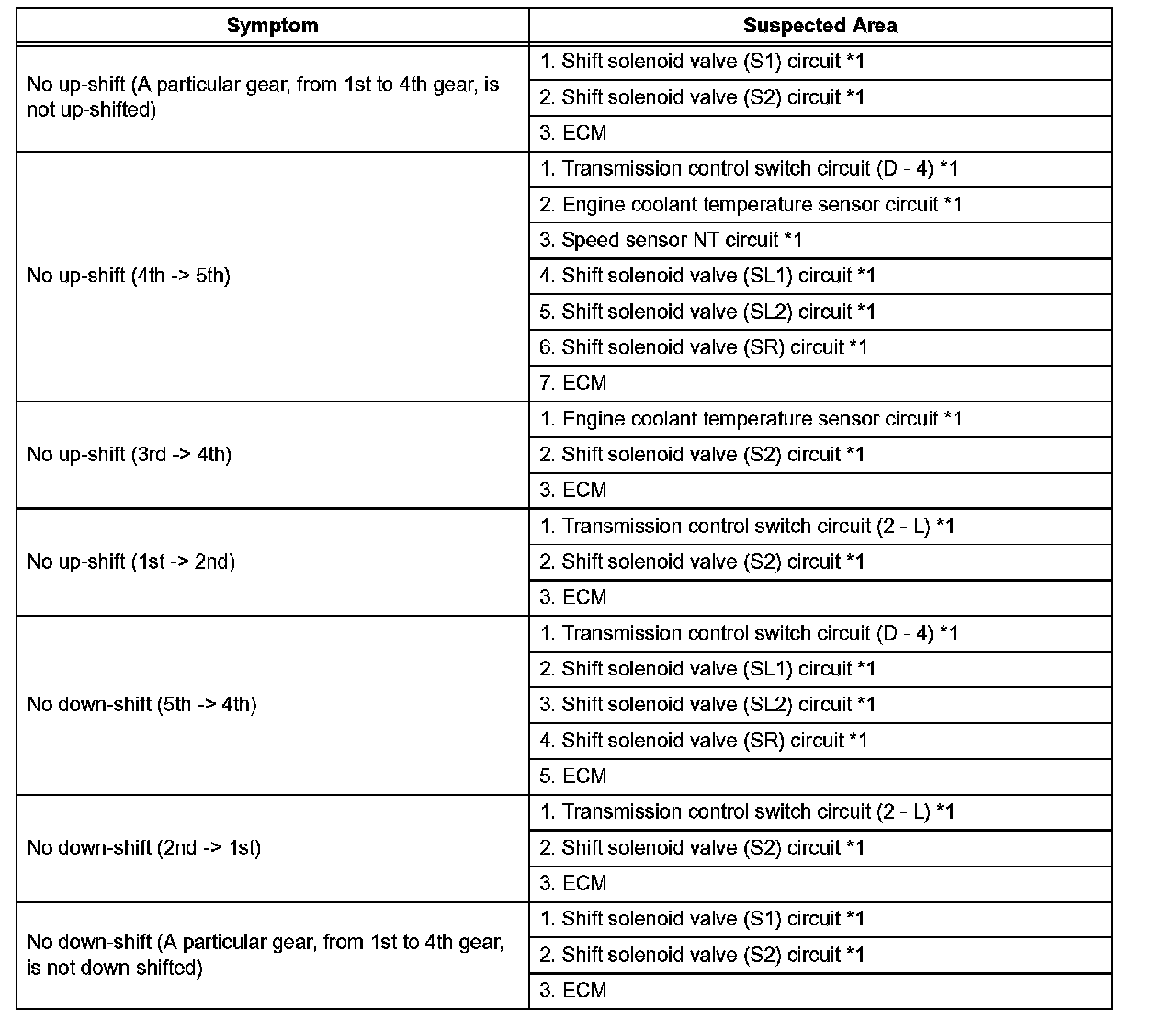

Chapter 1: Electronic Circuit Matrix Chart (Part 1):

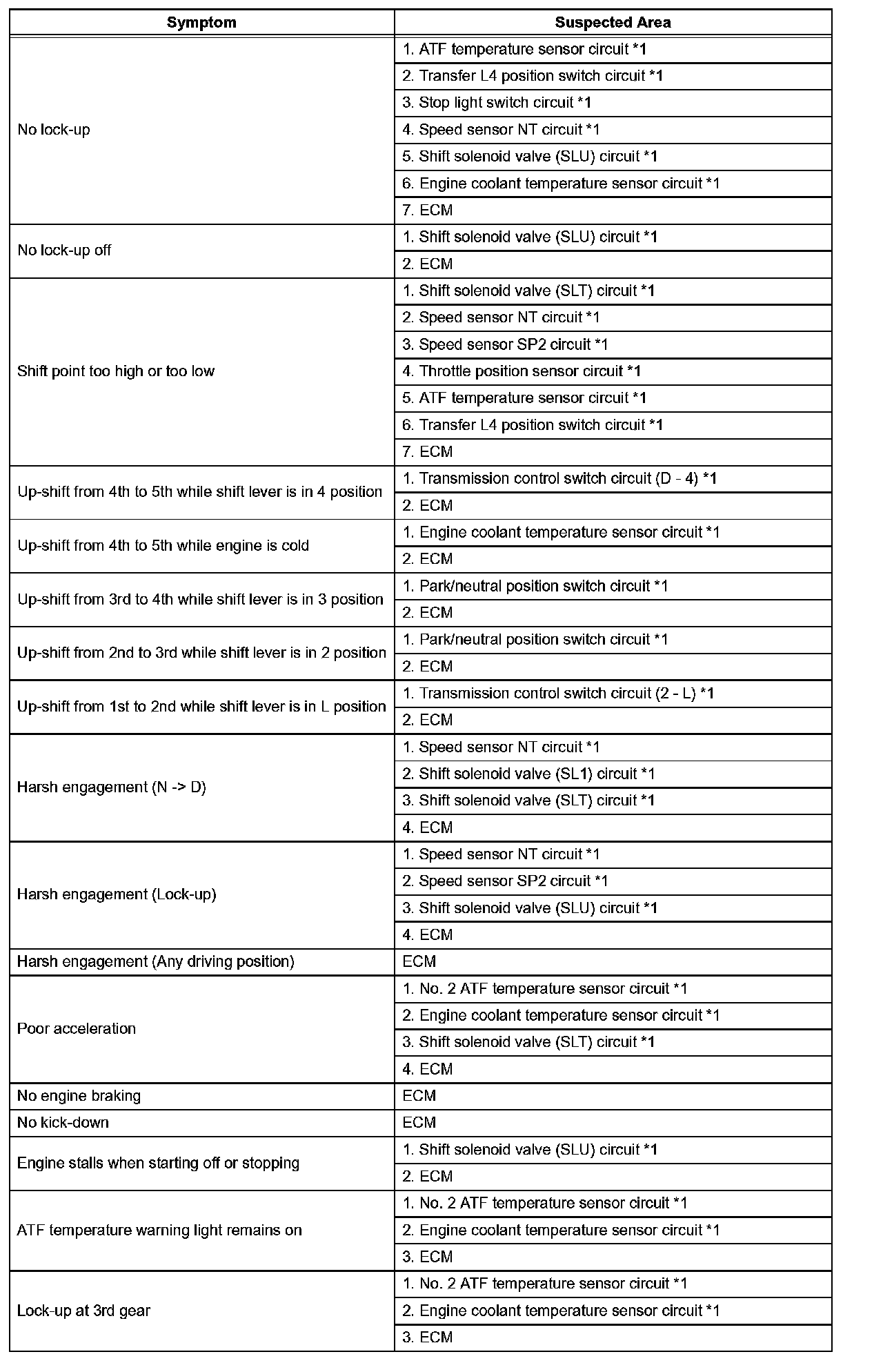

Chapter 1: Electronic Circuit Matrix Chart (Part 2):

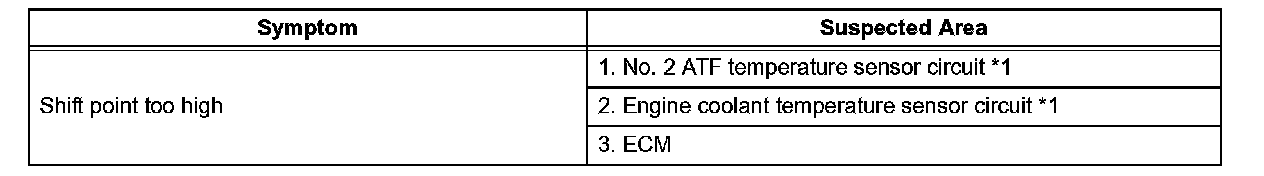

Chapter 1: Electronic Circuit Matrix Chart (Part 3):
Chapter 2: On-Vehicle Repair and Off-Vehicle Repair

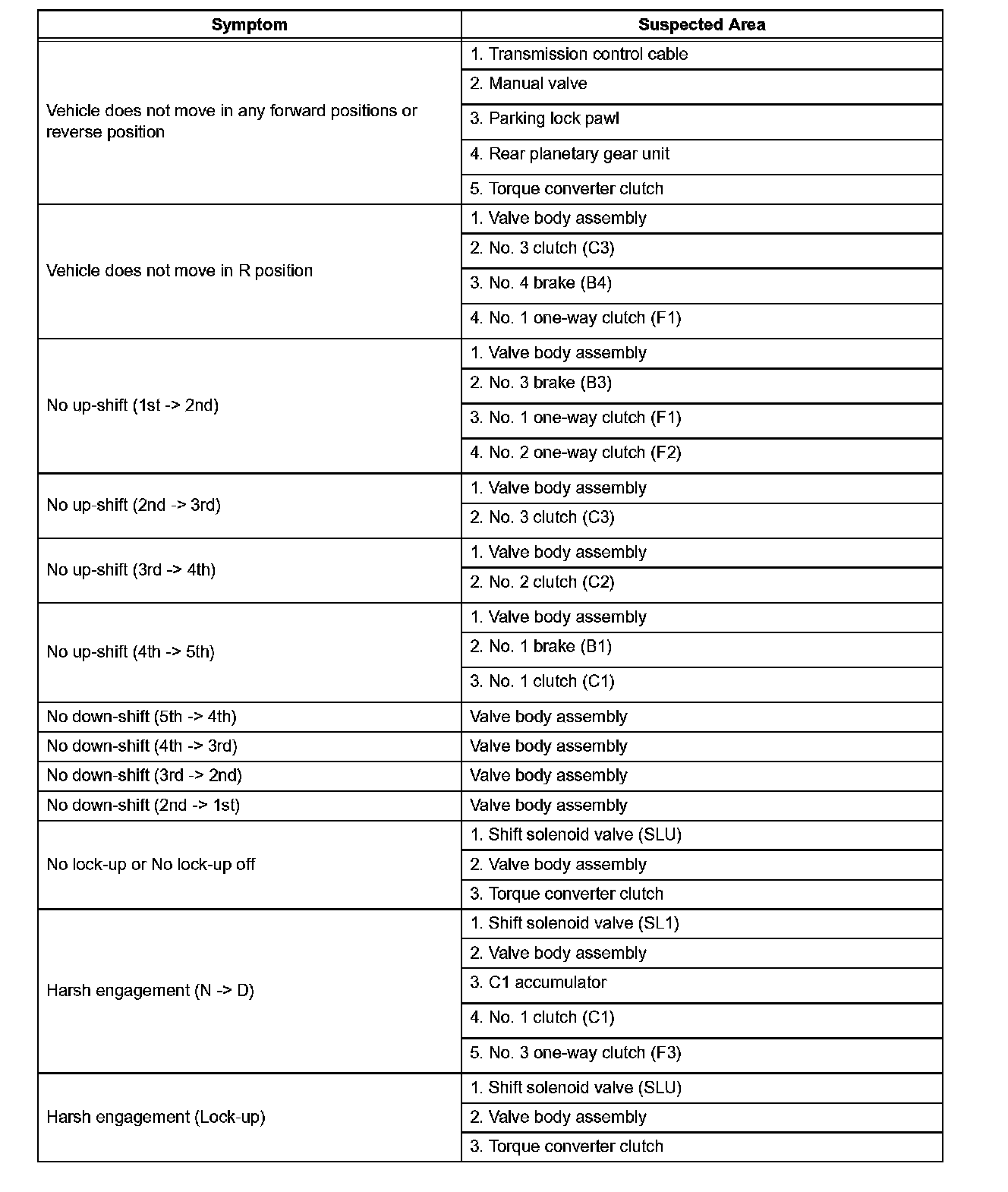

Chapter 2: On-Vehicle Repair and Off-Vehicle Repair (Part 1):

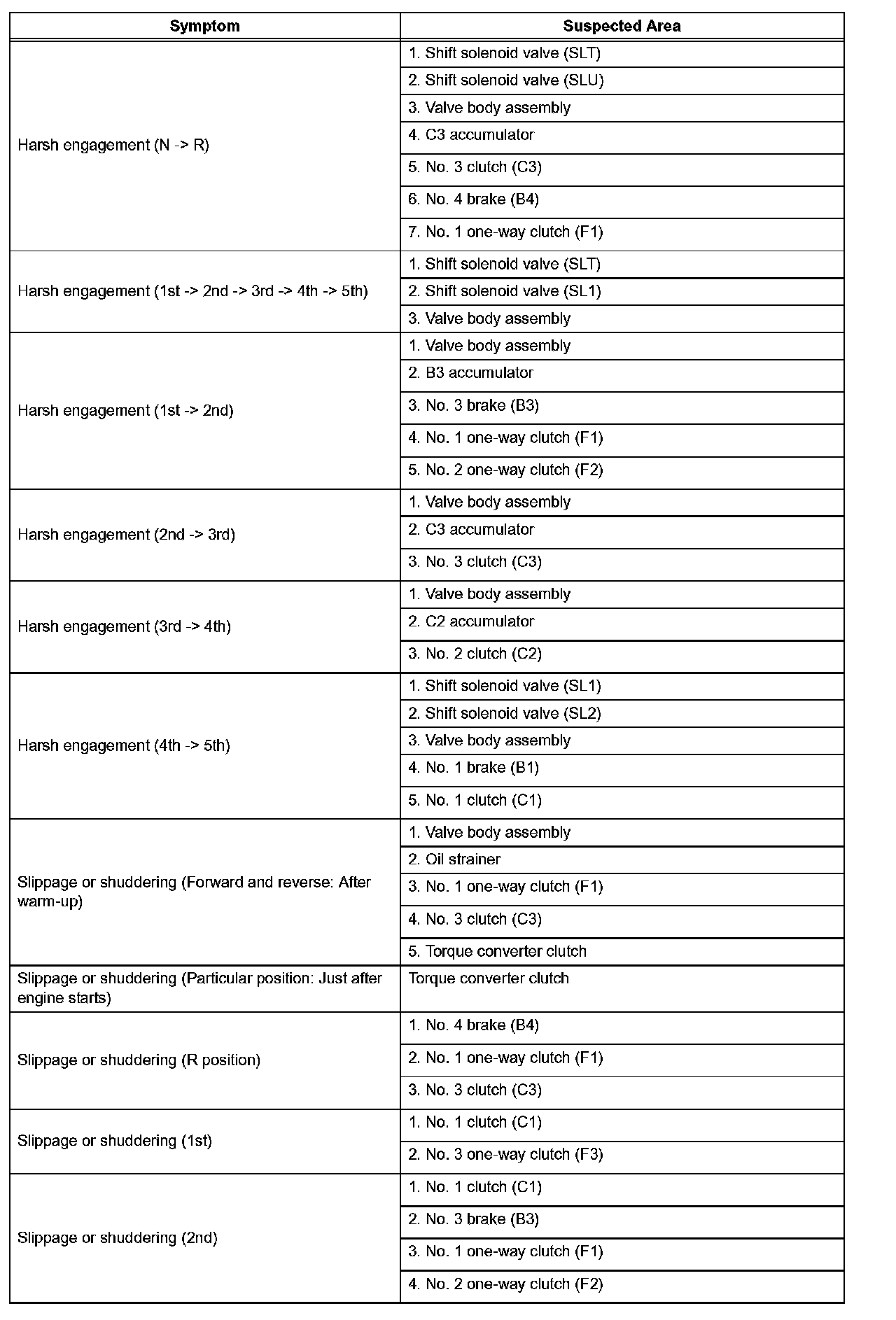

Chapter 2: On-Vehicle Repair and Off-Vehicle Repair (Part 2):

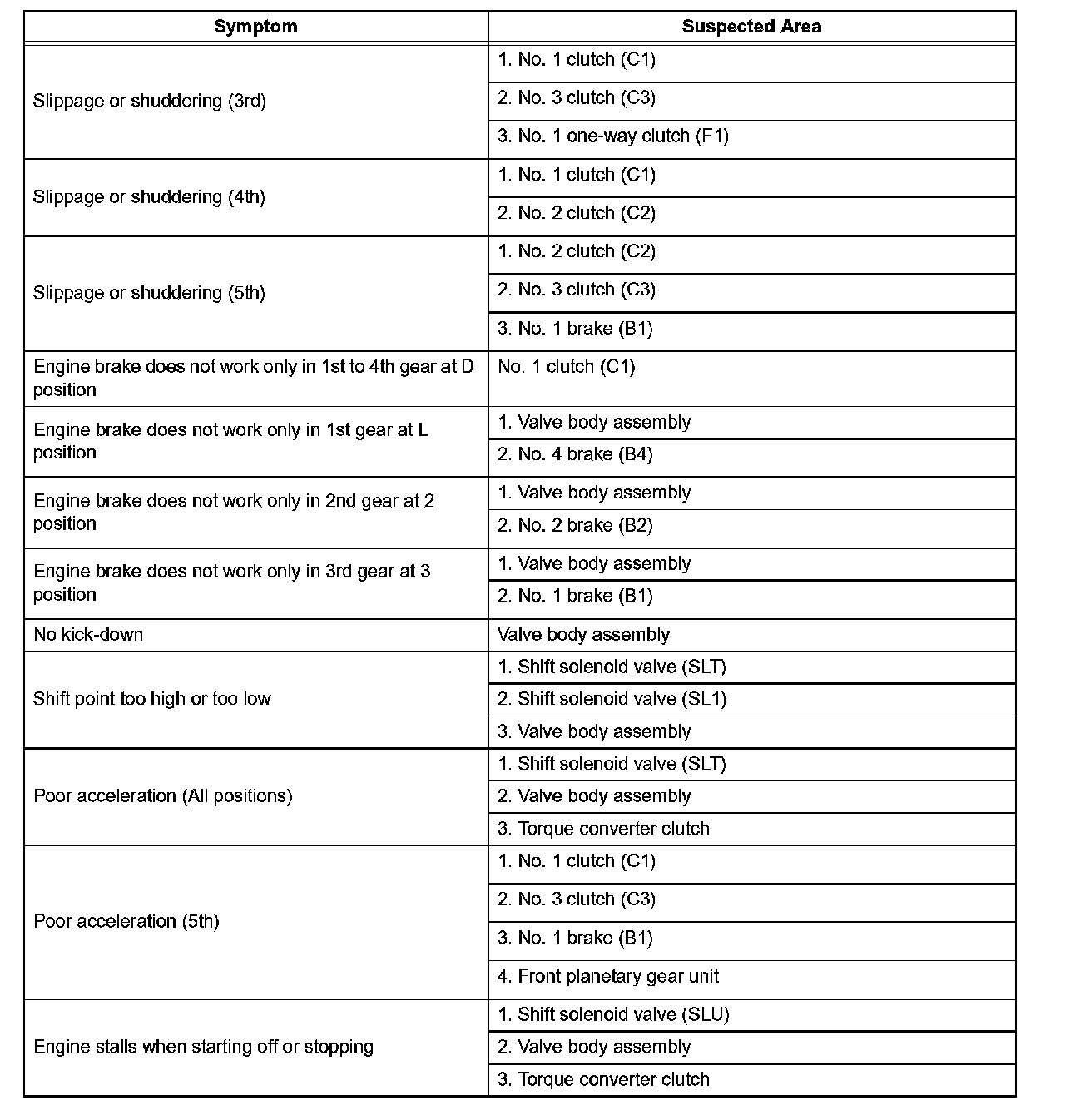

Chapter 2: On-Vehicle Repair and Off-Vehicle Repair (Part 3):
