B1610
DTC B1610/13 Front Airbag Sensor RH Circuit MalfunctionDESCRIPTION
DTC Detecting Condition:
The front airbag sensor RH consists of parts such as the diagnostic circuit and the frontal detection sensor.
The configuration of the front airbag sensor LH is the same as that of the RH.
When the center airbag sensor assembly receives signals from the frontal deceleration sensor, it determines whether or not the SRS should be activated.
DTC B1610/13 is set when a malfunction is detected in the front airbag sensor RH circuit.
DTC B1615/14 is set when a malfunction is detected in the front airbag sensor LH circuit.
Wiring Diagram:
INSPECTION PROCEDURE
CAUTION: In order to prevent unexpected airbag deployment, disconnect the following connectors before inspecting parts such as wire harnesses, if the application of tester probes to the center airbag sensor assembly connector is necessary.
a. Turn the ignition switch to the LOCK position.
b. Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
c. Disconnect the connectors from the center airbag sensor assembly.
d. Disconnect the connectors from the steering pad.
e. Disconnect the connector from the front passenger airbag assembly.
f. Disconnect the connector from the front seat outer belt assembly LH.
g. Disconnect the connector from the front seat outer belt assembly RH.
HINT: Skip the following steps if side and curtain shield airbags are not fitted.
h. Disconnect the connector from the front seat airbag assembly LH.
i. Disconnect the connector from the front seat airbag assembly RH.
j. Disconnect the connector from the curtain shield airbag assembly LH.
k. Disconnect the connector from the curtain shield airbag assembly RH.

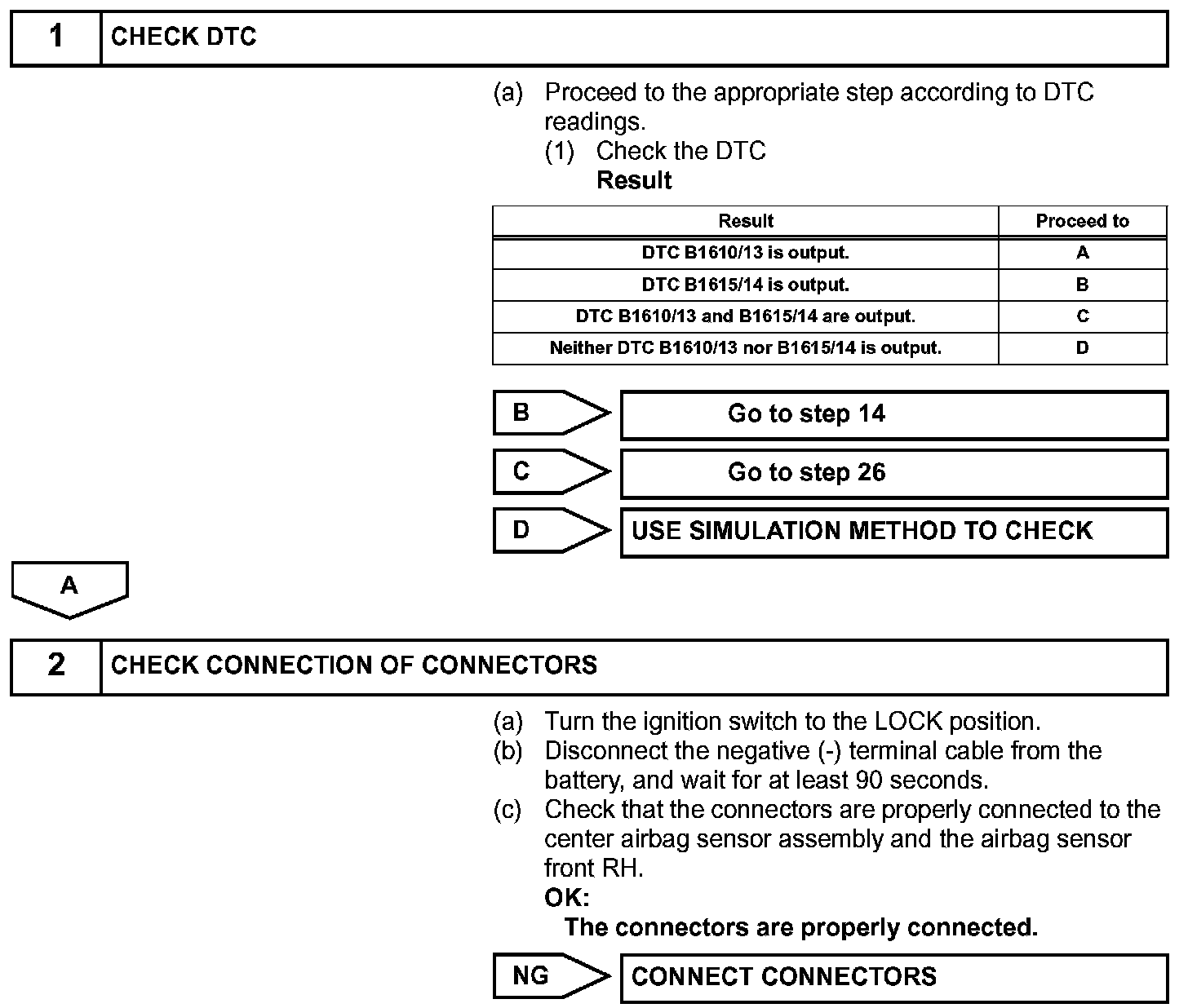

Step 1-2:
Step 2(Continued)-4:

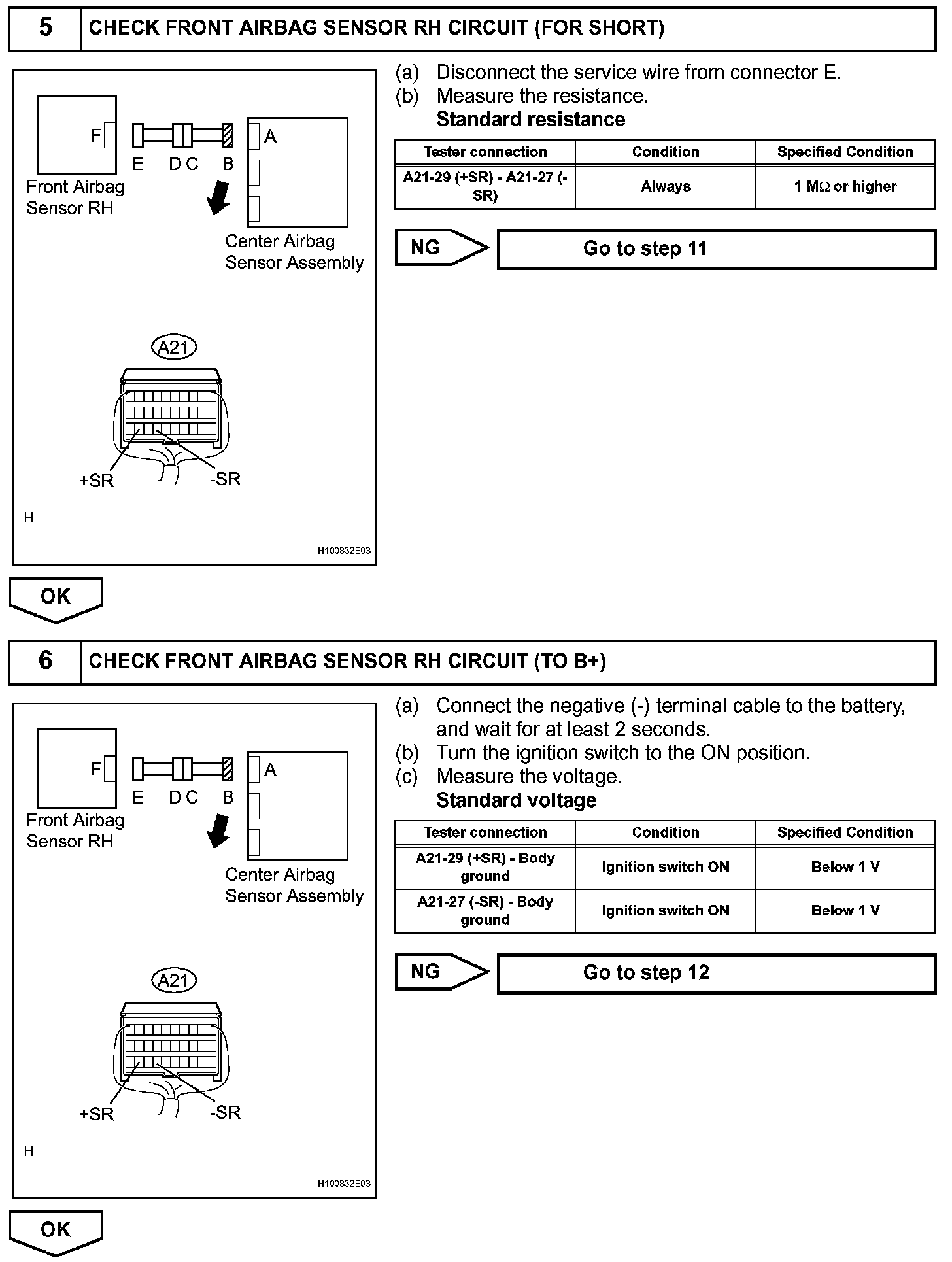

Step 5-6:
Step 7-8:
Step 8(Continued)-9:
Step 10:

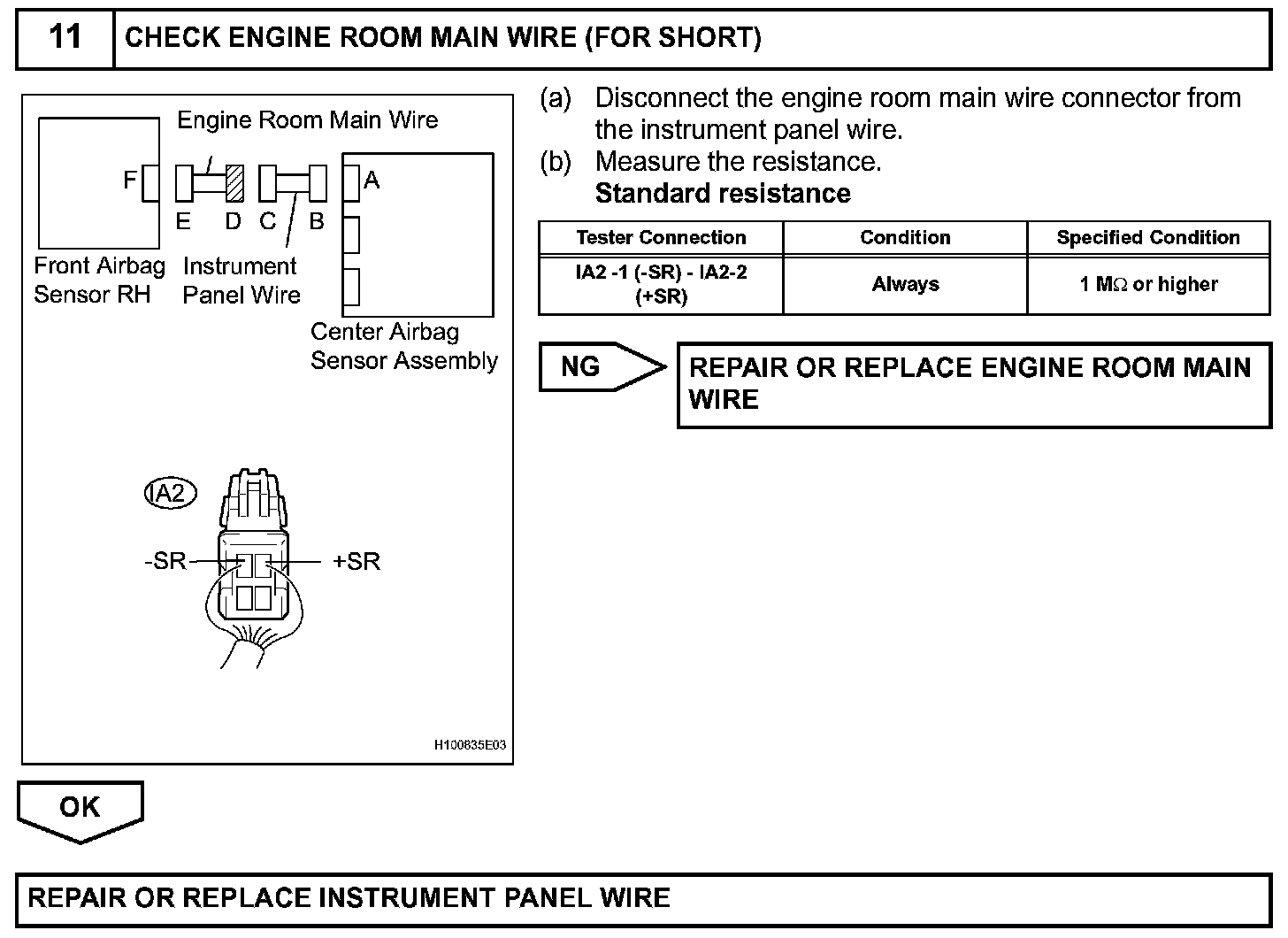

Step 11:
Step 12:
Step 13-15:

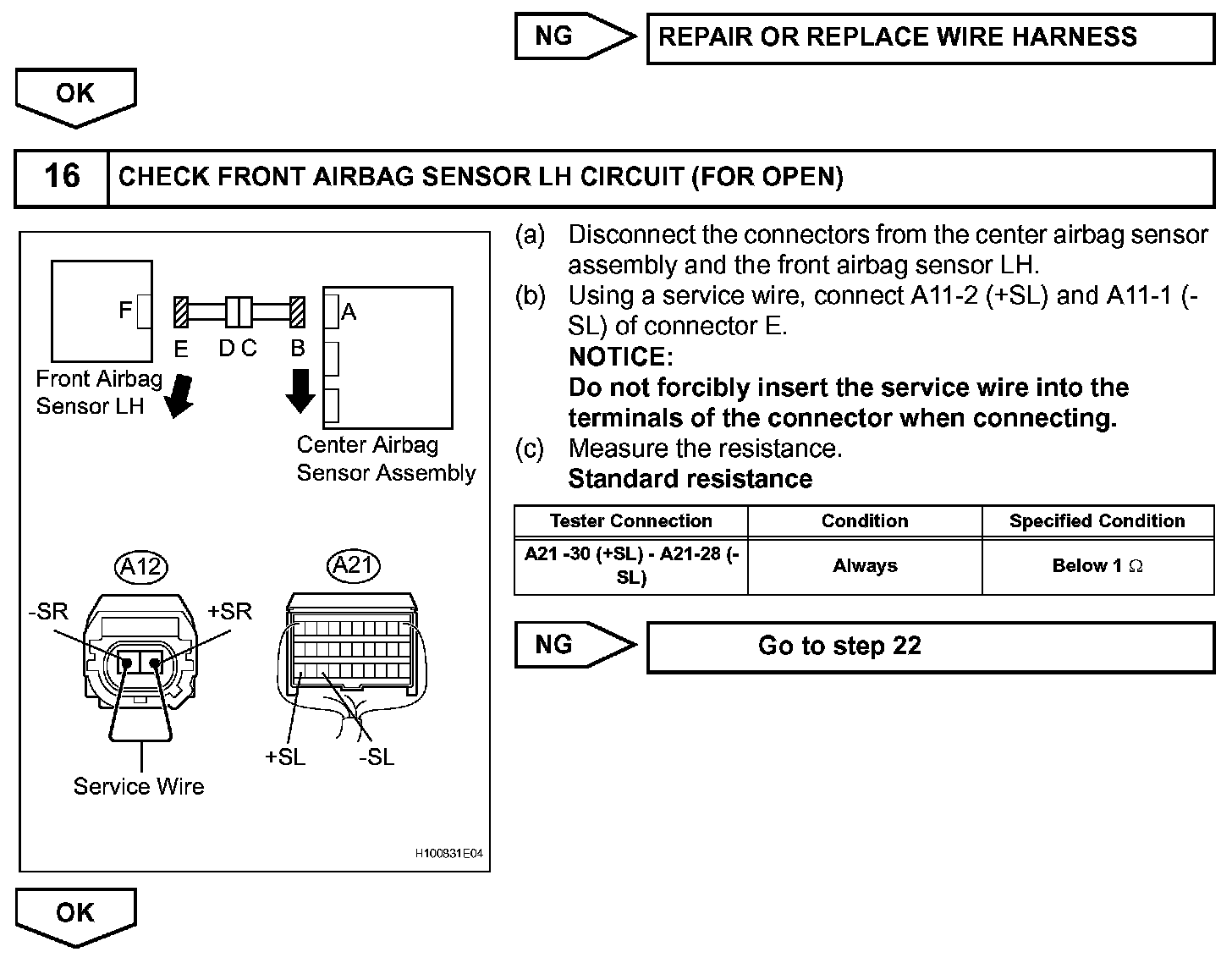

Step 15(Continued)-16:
Step 17-18:
Step 19-20:
Step 20(Continued)-21:

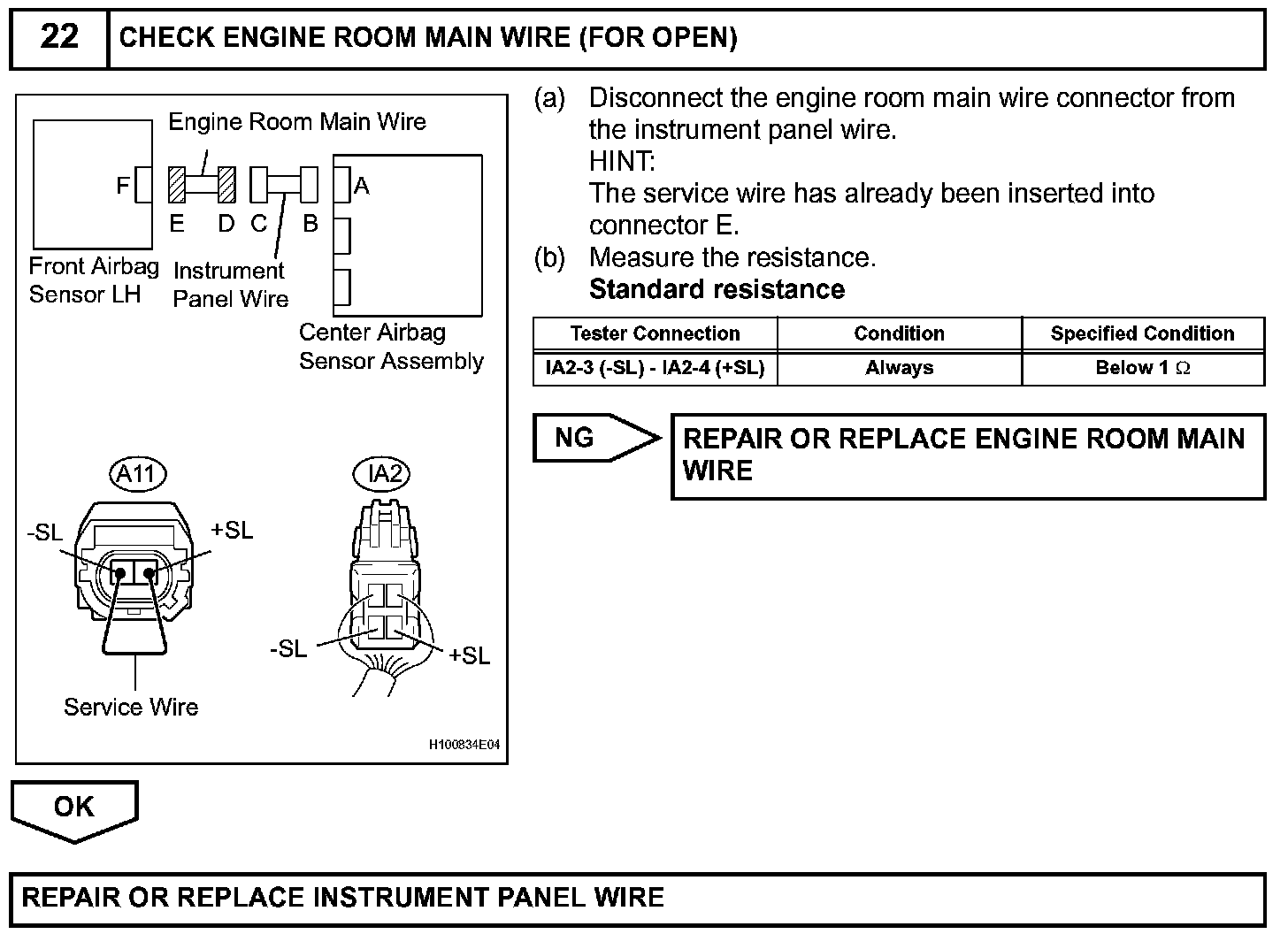

Step 22:
Step 23:
Step 24:

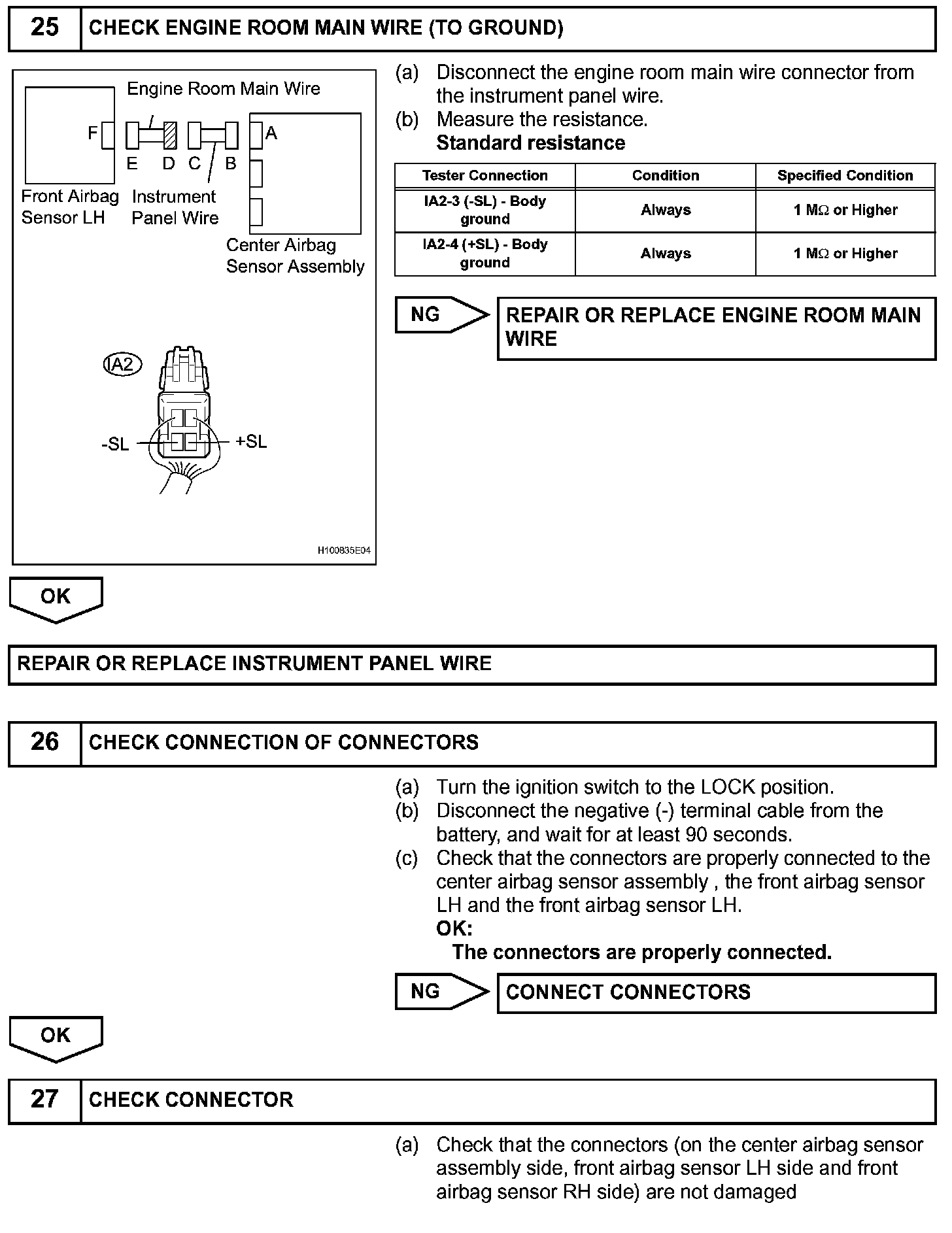

Step 25-27:
Step 27(Continued)-28:
Step 29-30:
Step 31-32:
Step 32(Continued)-33:

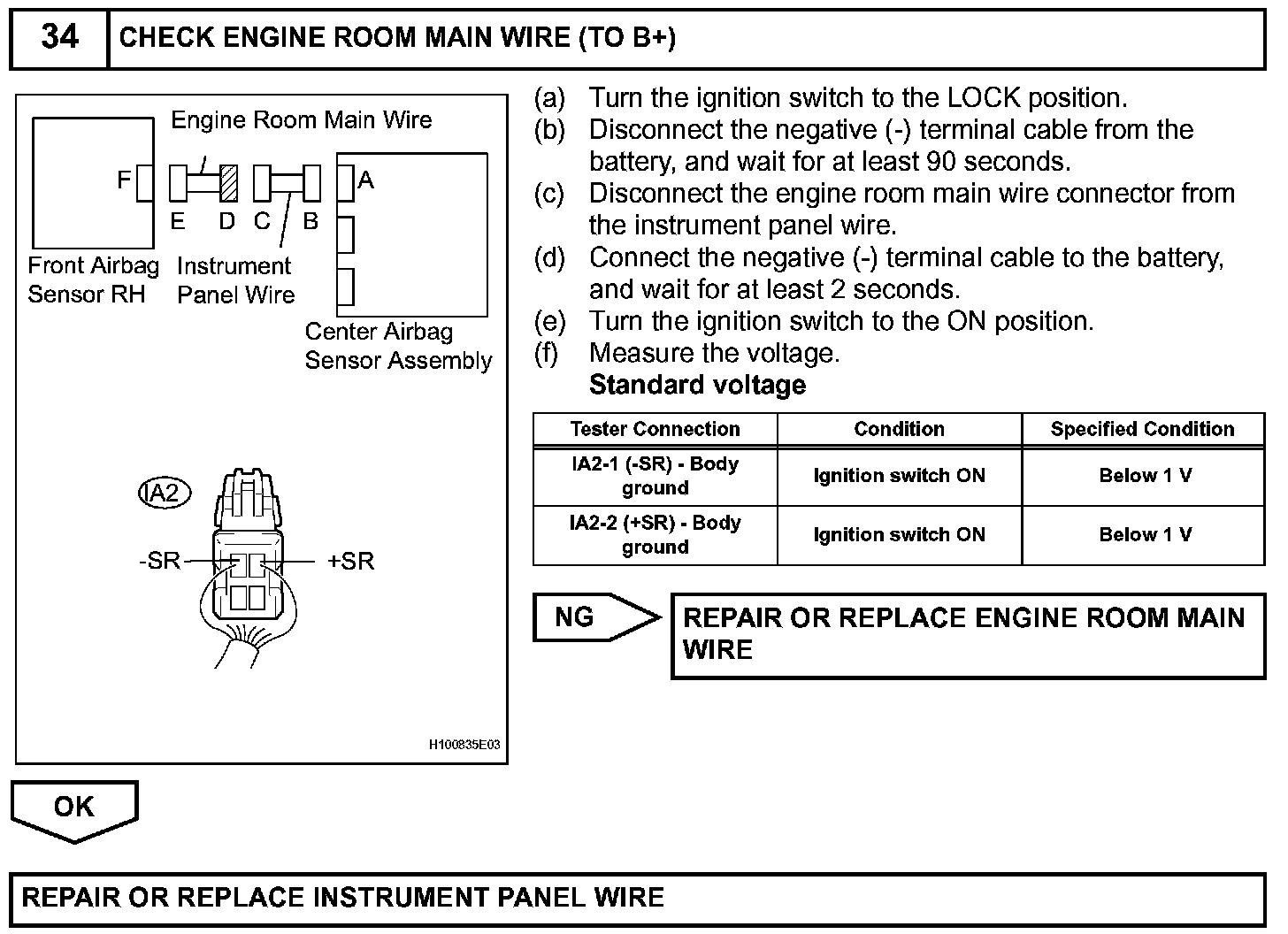

Step 34:
Step 35:
Step 36-37:
Step 38-39:
Step 40:
Step 41:

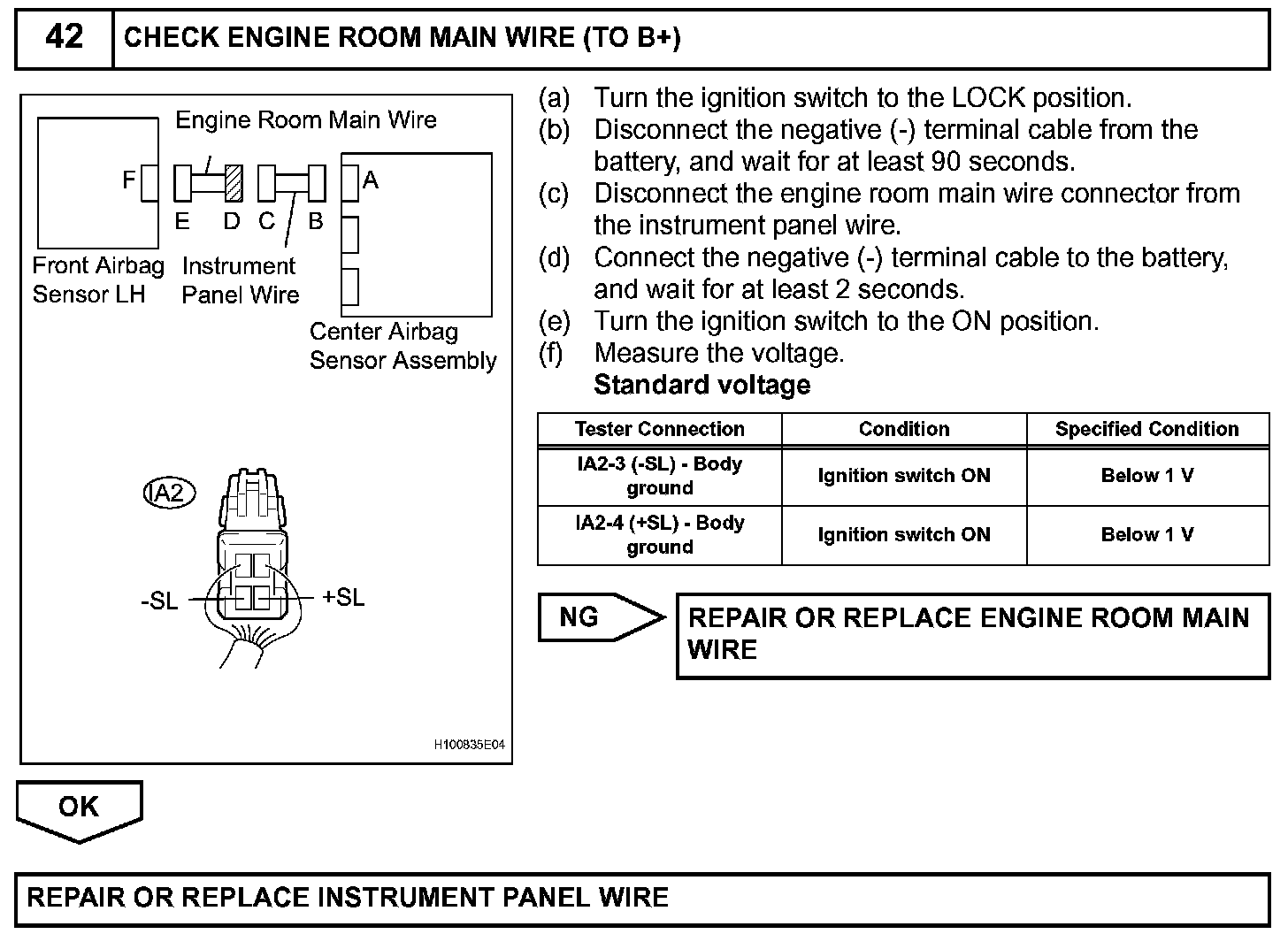

Step 42:
Step 43-44:
Step 44(Continued):
