ABS (Antilock Brake System)

DTC C0215/34 Left Rear Wheel Speed Sensor Signal Malfunction

DESCRIPTION




The speed sensor detects the wheel speeds and sends the appropriate signals to the skid control ECU. Speed sensor rotors have rows of alternating N and S magnetic poles, and their magnetic fields change when the rotors turn.

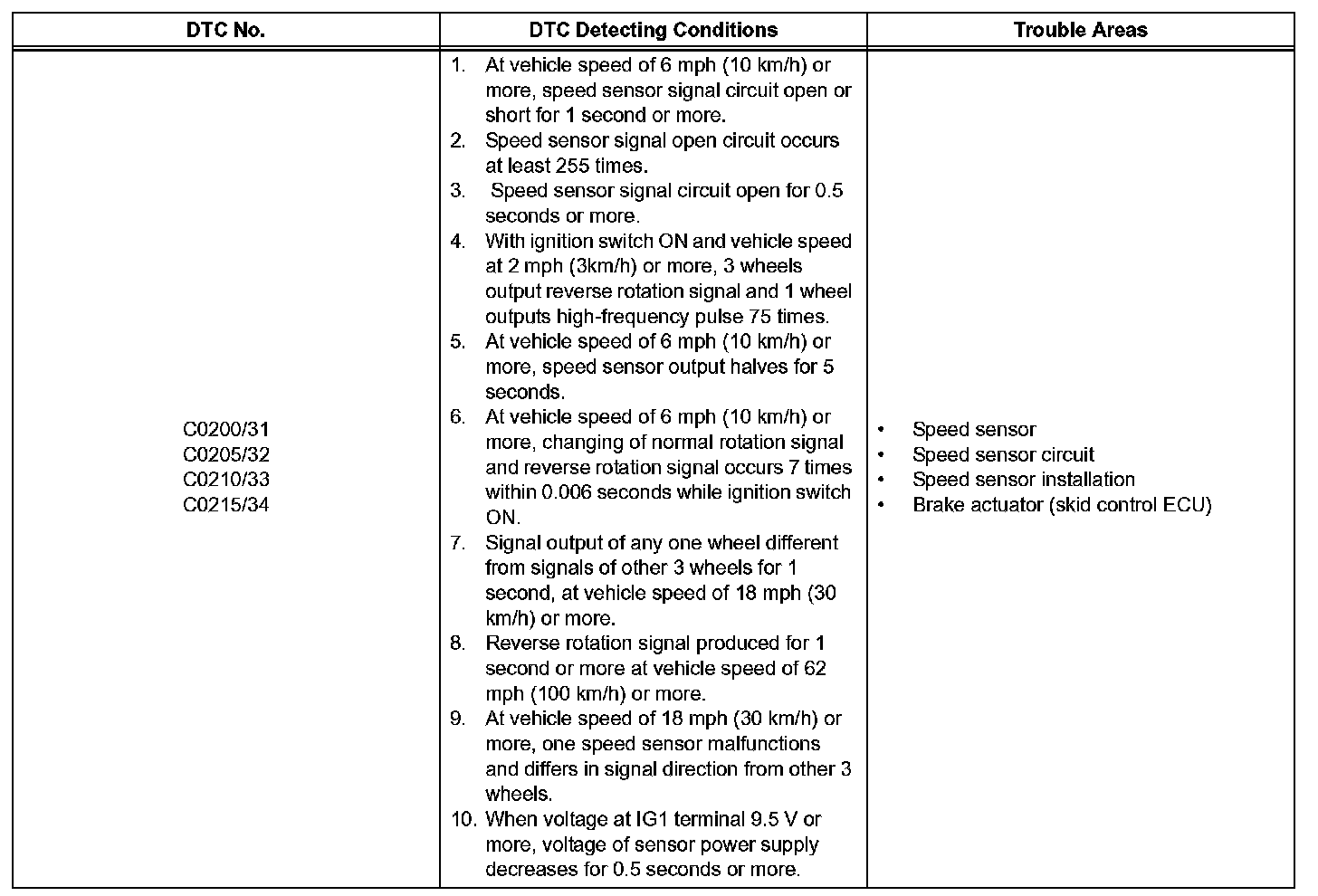

DTC Detecting Conditions:

Each speed sensor detects that magnetic change and sends a pulse signal to the skid control ECU. The ECU monitors the wheel speeds according to the speed signals to control the ABS control system.

HINT:
DTC C0200/31 relates to the front right speed sensor.
DTC C0205/32 relates to the front left speed sensor.
DTC C0210/33 relates to the rear right speed sensor.
DTC C0215/34 relates to the rear left speed sensor.

Wiring Diagram:

Step 1:

Step 1(Continued)-3:

Step 4-5:

Step 6:

Step 7-8:

INSPECTION PROCEDURE
