ABS (Antilock Brake System)

DTC C1236/36 Foreign Object is Attached on Tip of Front Speed Sensor LH

DESCRIPTION

DTC Detecting Conditions:

The Skid Control ECU sets this DTC if, according to abnormal signals input by the sensor, it detects that foreign material is adhering to the speed sensor tip or the sensor rotor, or the rotor has any missing teeth. This DTC may be set if parts such as the speed sensor circuit connector or wire harness are malfunctioning.

HINT:
DTC C1235/35 relates to the front right speed sensor
DTC C1236/36 relates to the front left speed sensor.
DTC C1238/38 relates to the rear right speed sensor.
DTC C1239/39 relates to the rear left speed sensor.

Wiring Diagram:

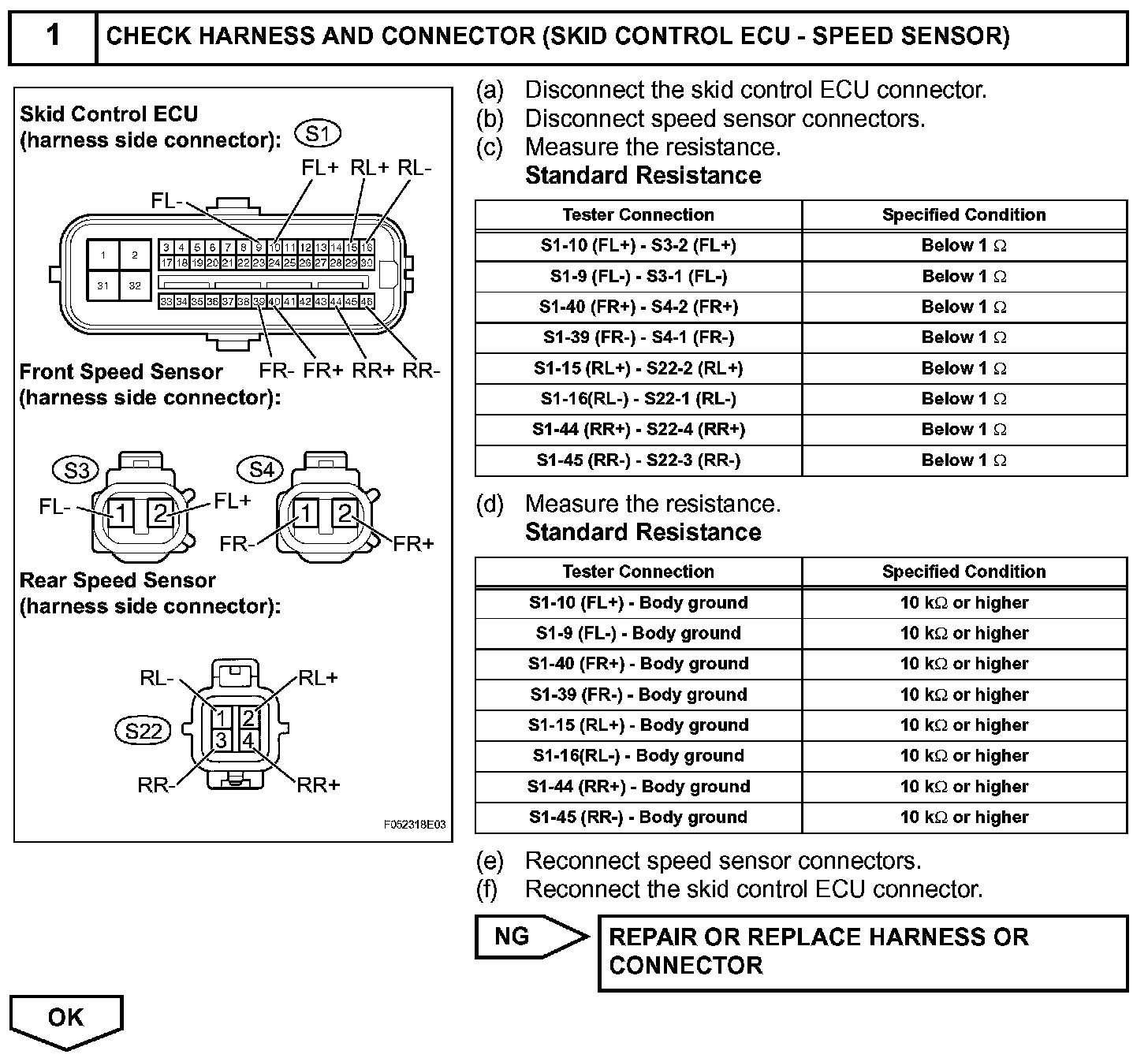

Step 1:

Step 2-4:

Step 4(Continued):

INSPECTION PROCEDURE
