Electronic Brake Control Module
>>
Antilock Brake (ABS) System
Antilock Brake (ABS) System

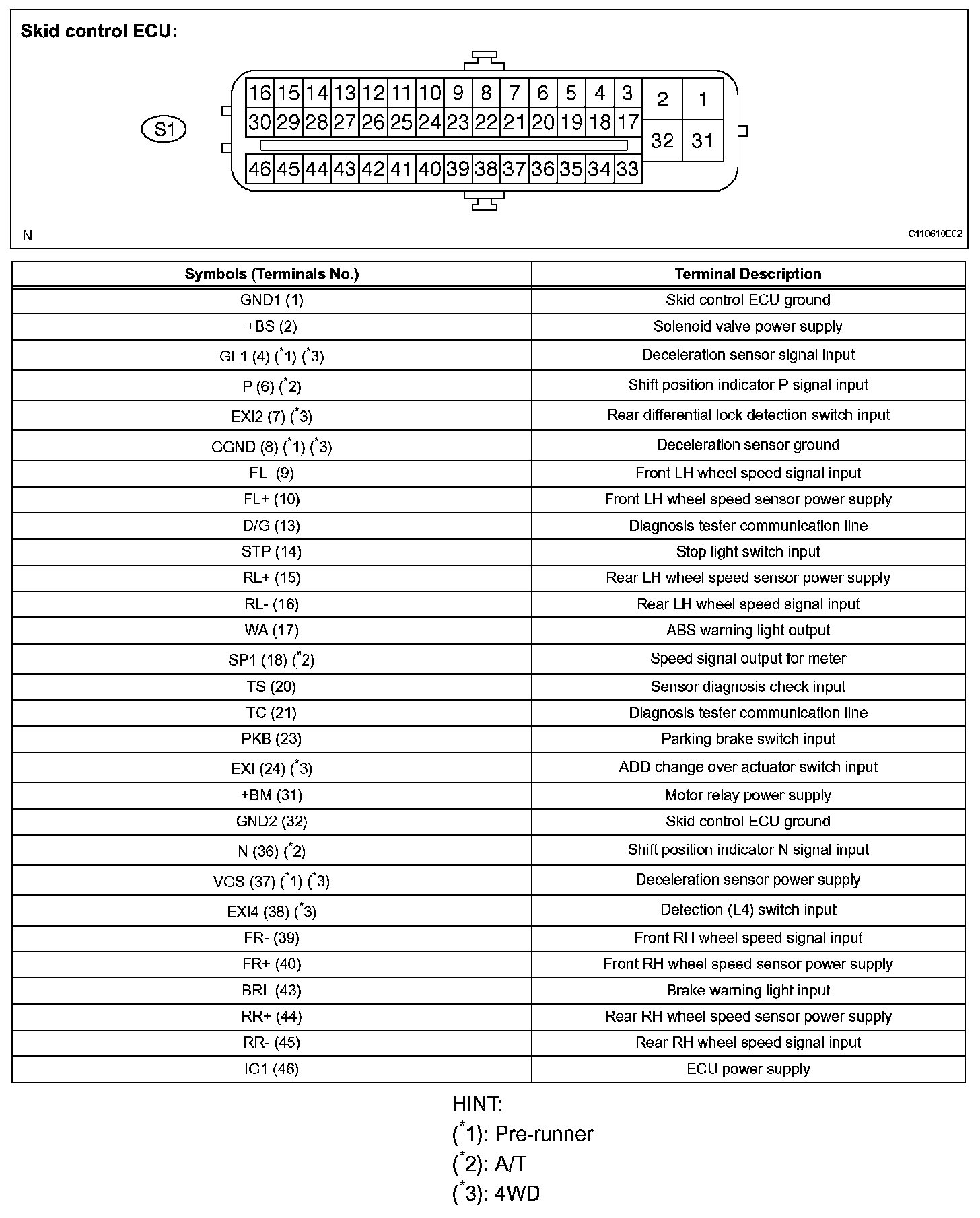

Terminals Of Control Module/Pinouts-Skid Control ECU (Part 1):

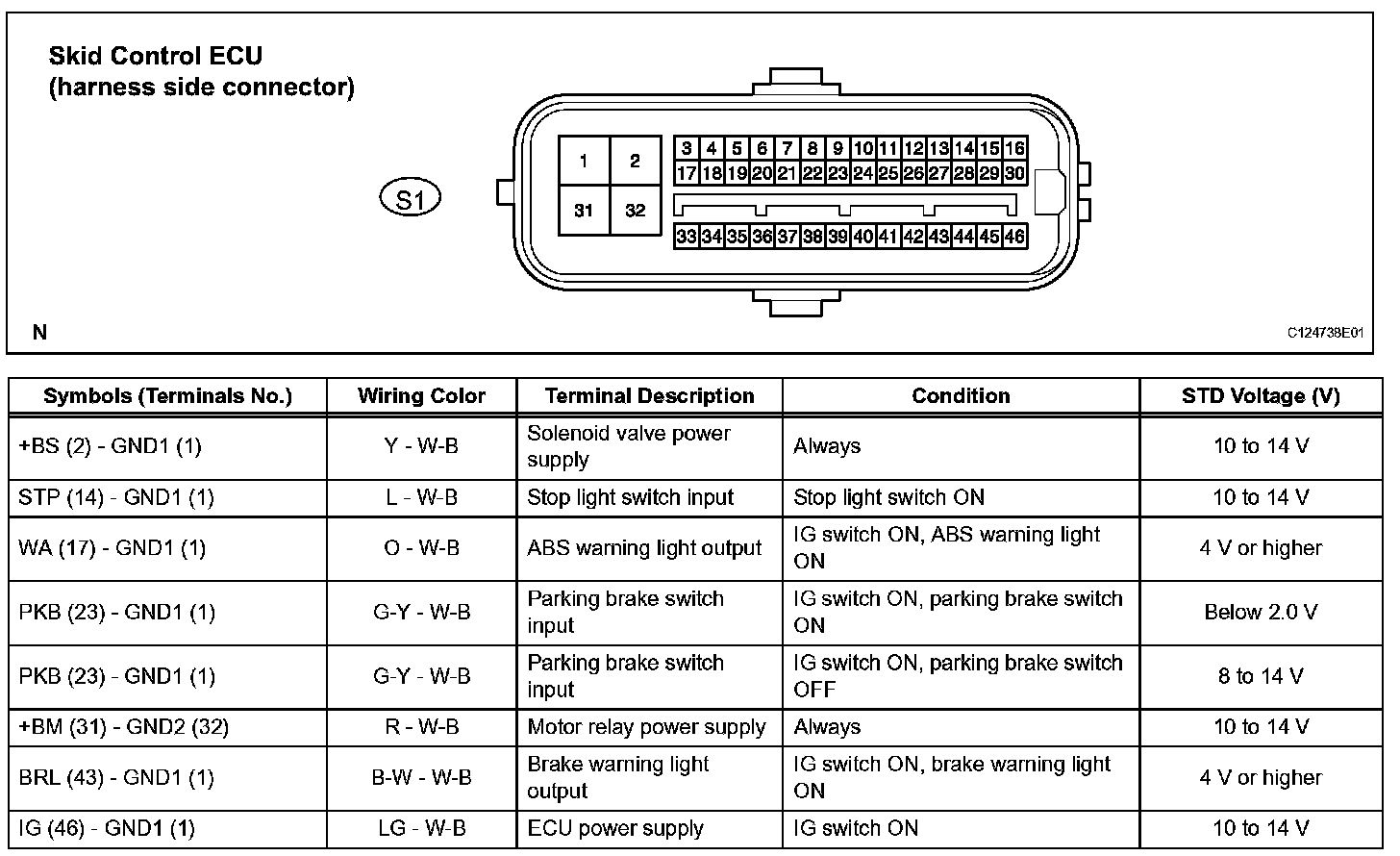

Terminals Of Control Module/Pinouts-Skid Control ECU (part 2):
