Connector Locations

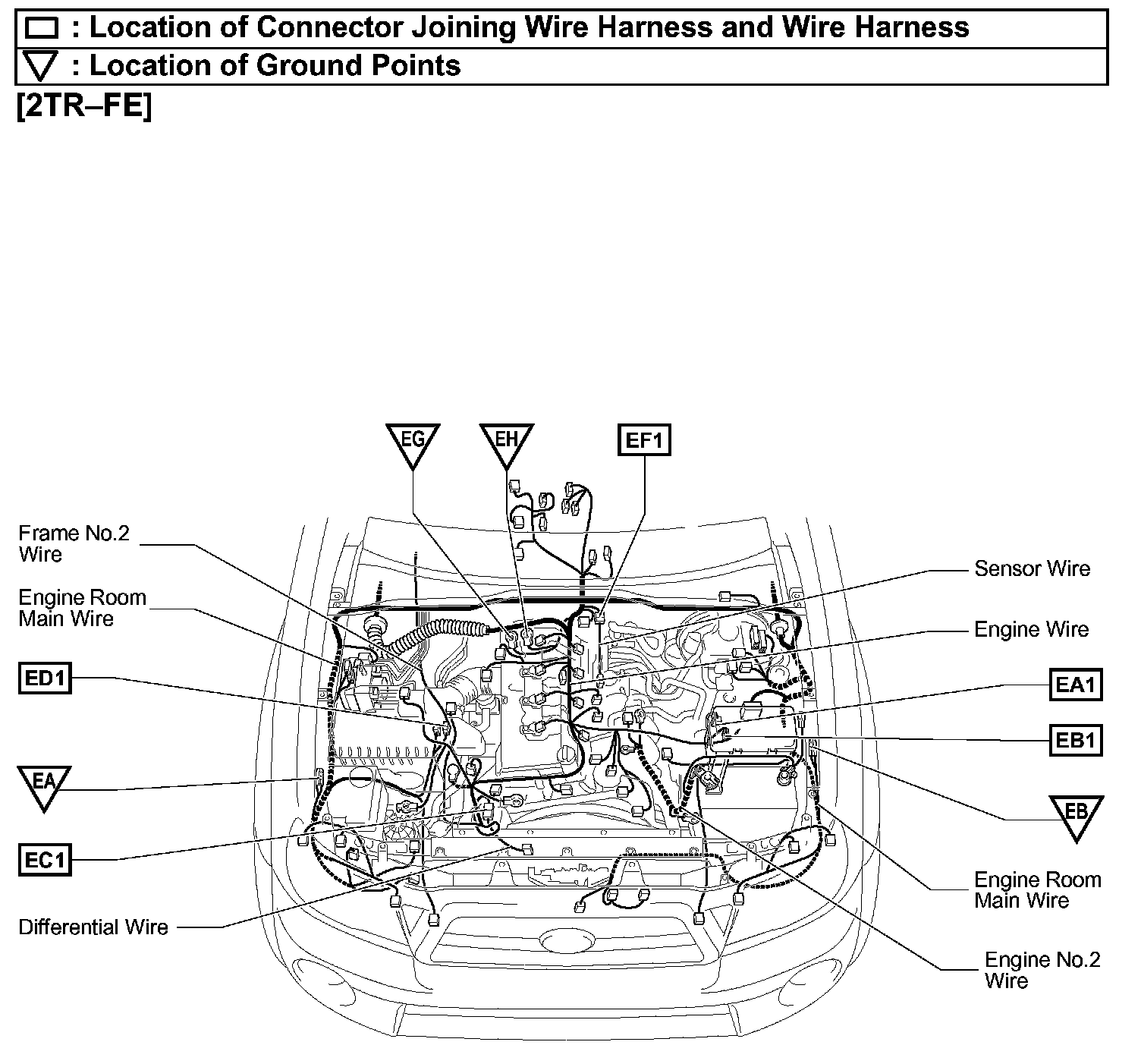

EA1 - EF1, EA - EH:

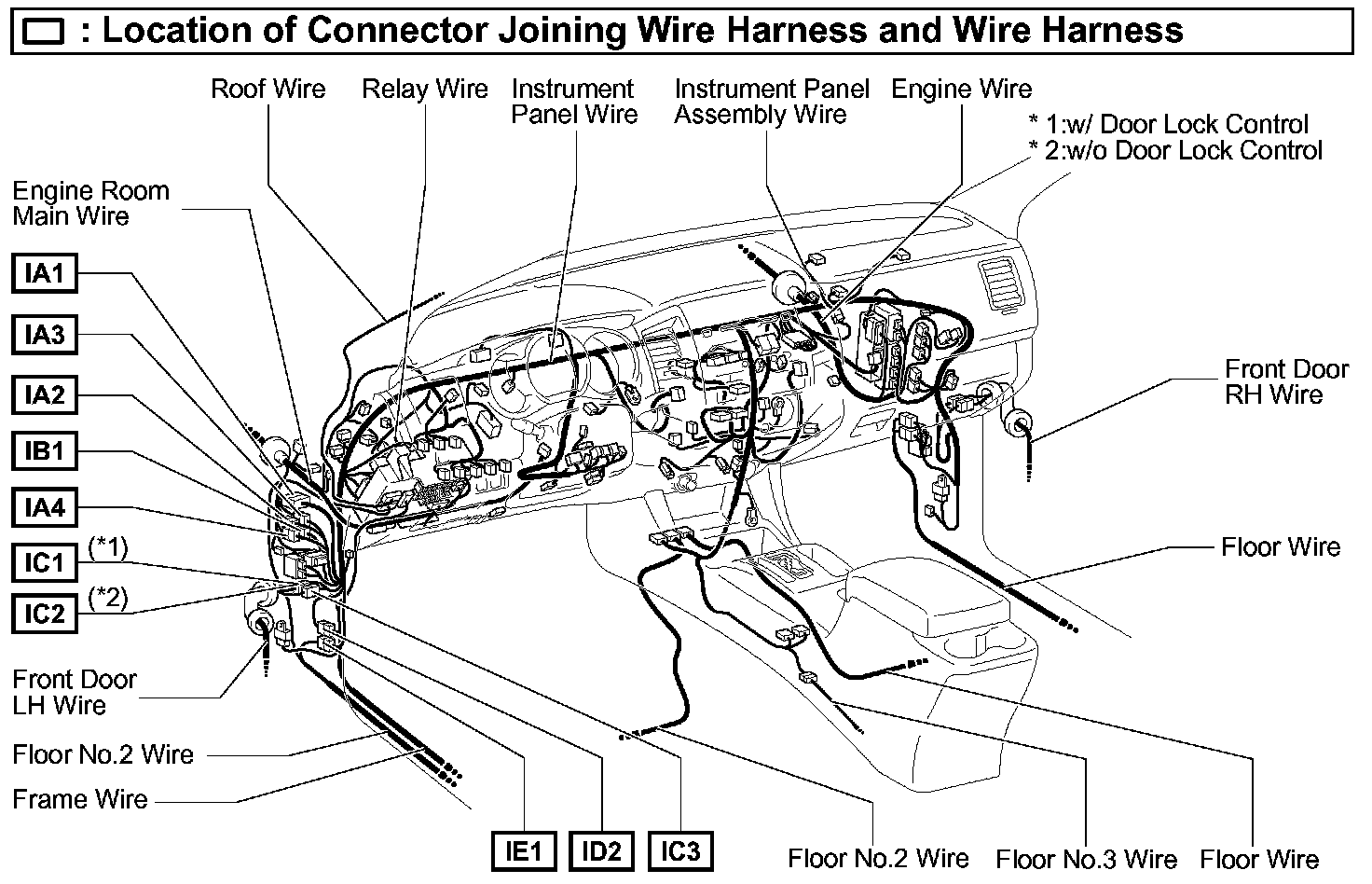

IA1 - IE1:



IF1 - IM1:

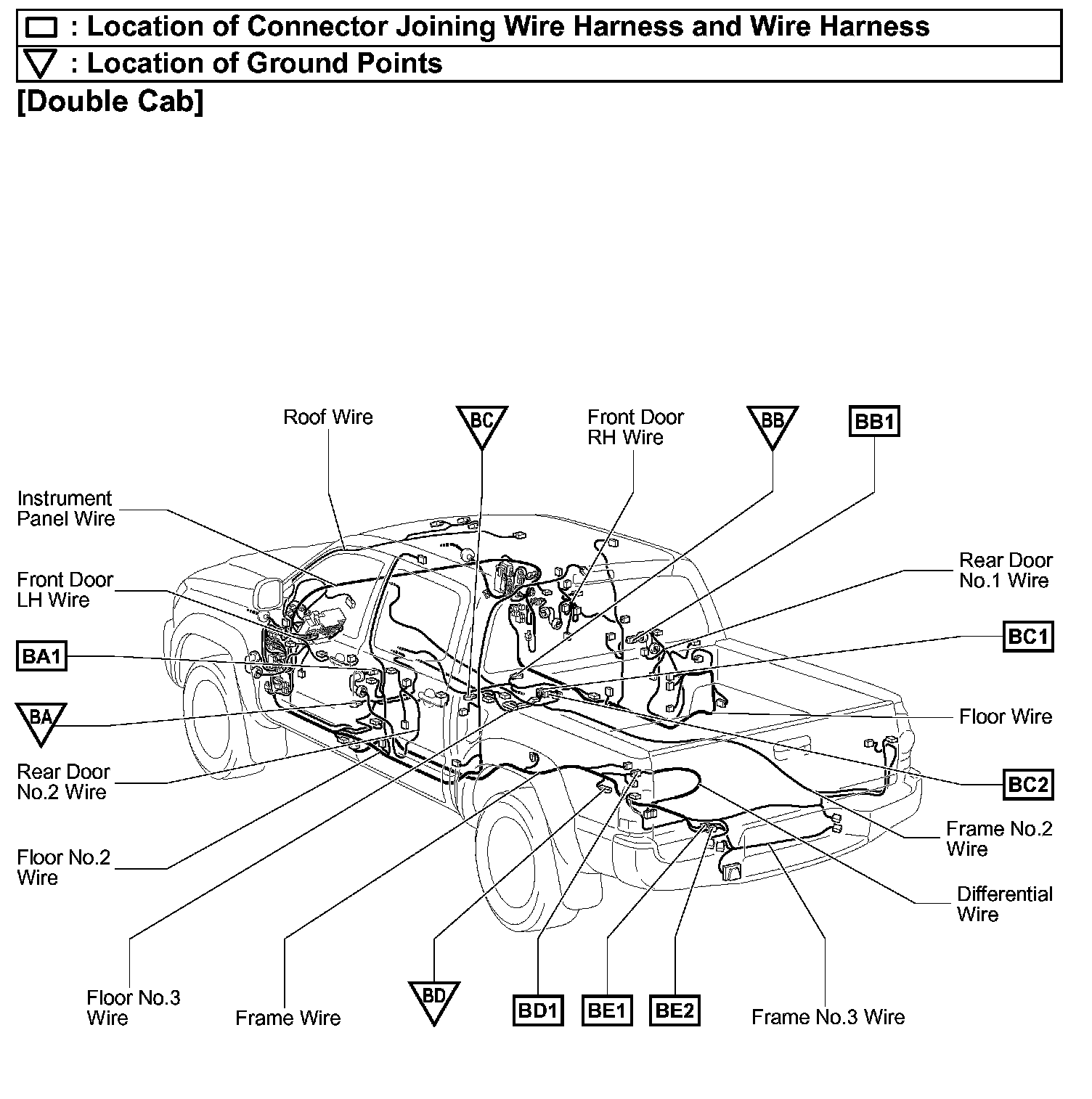

BA1 - BE2, BA - BD:

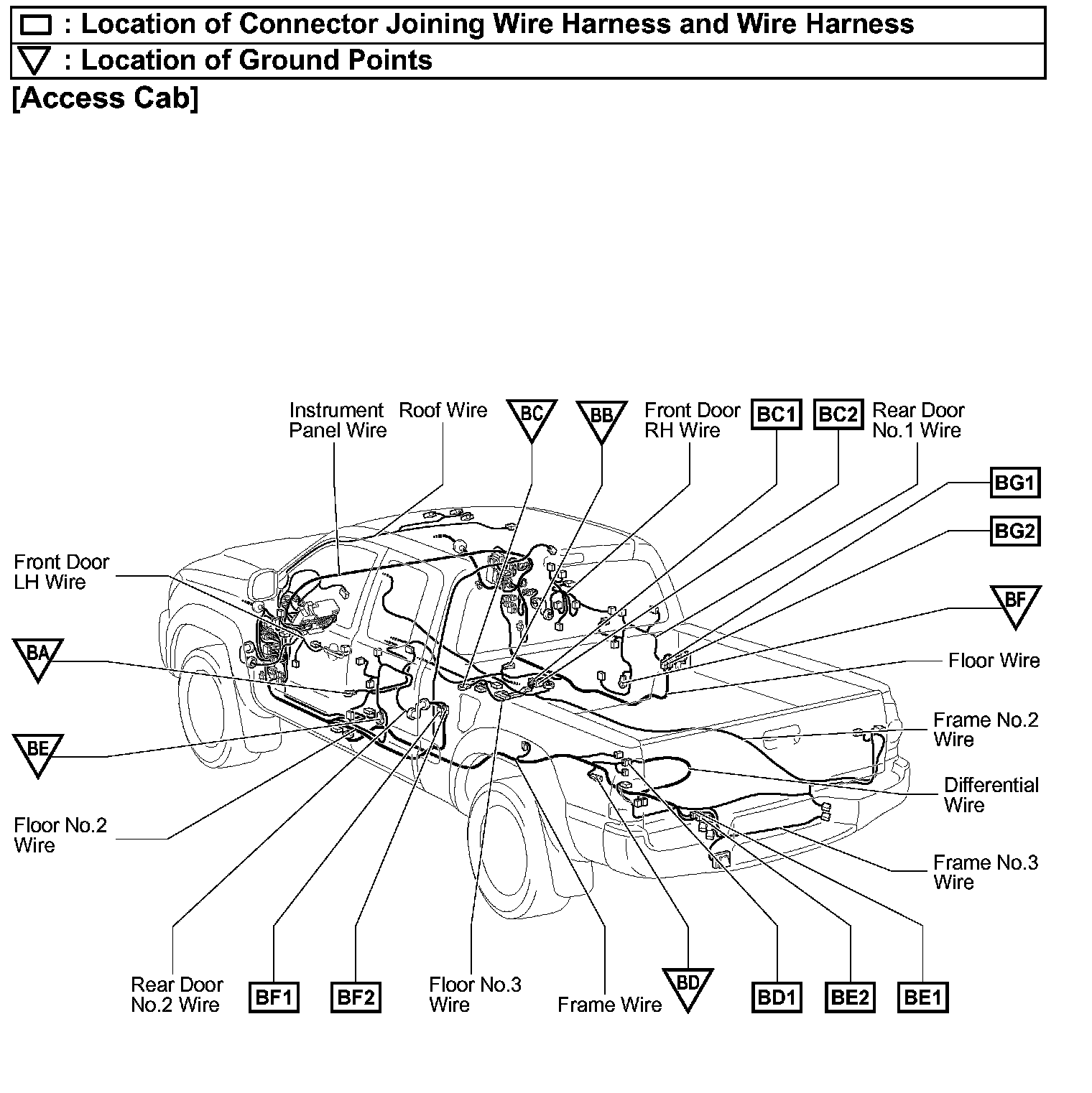

BC1 - BG2, BA - BF:

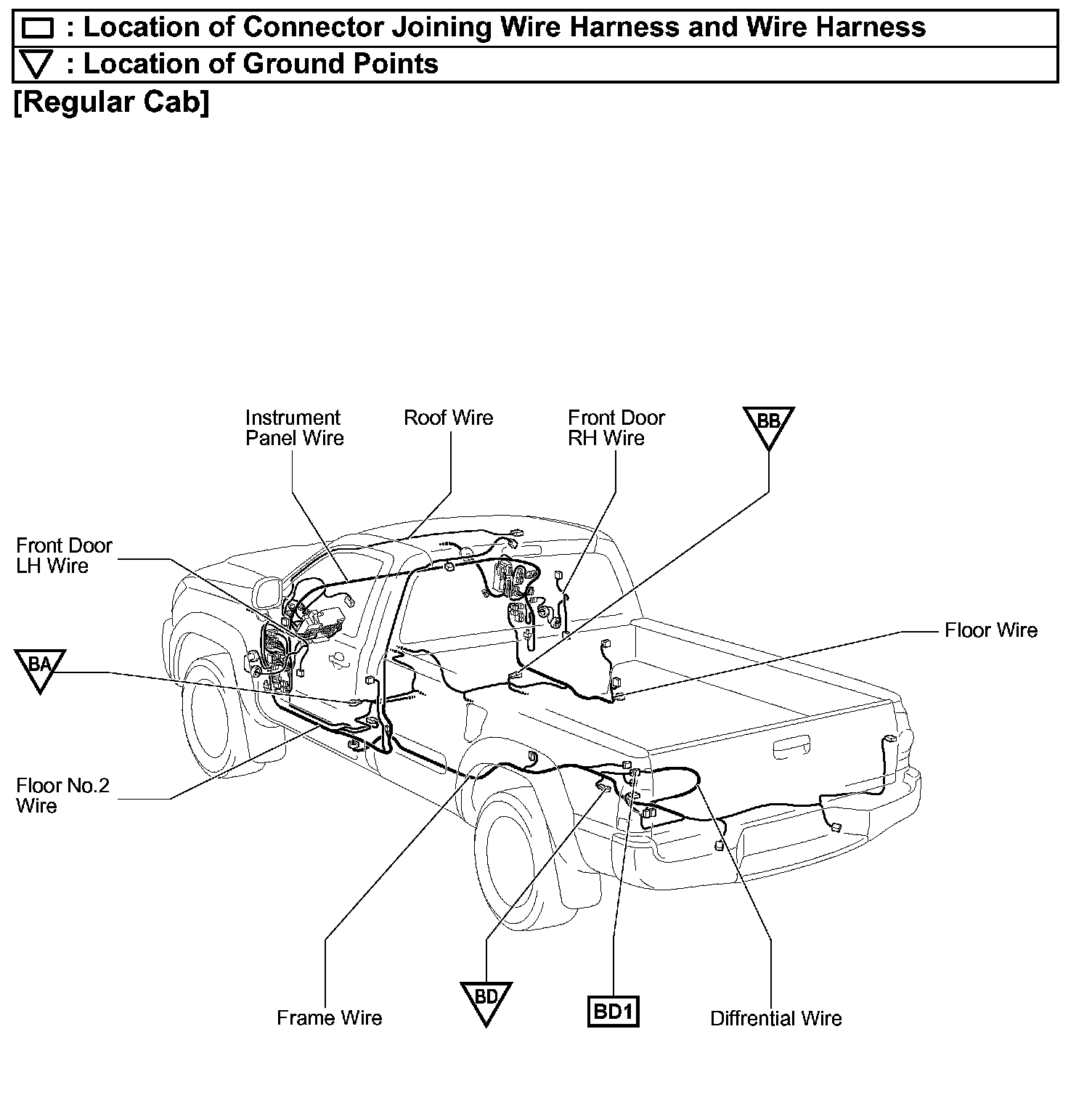

BD1, BA - BD:

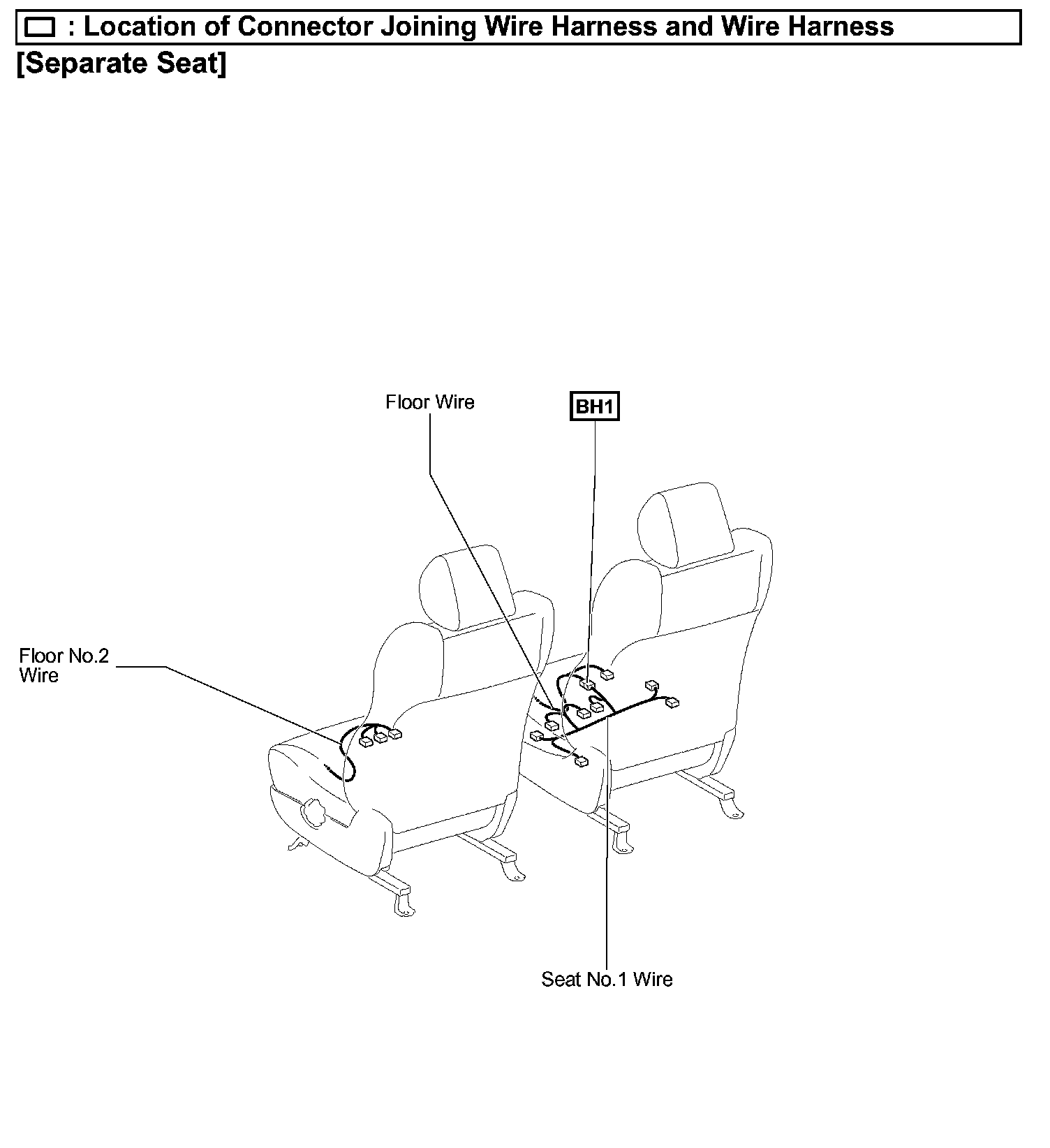

BH1:

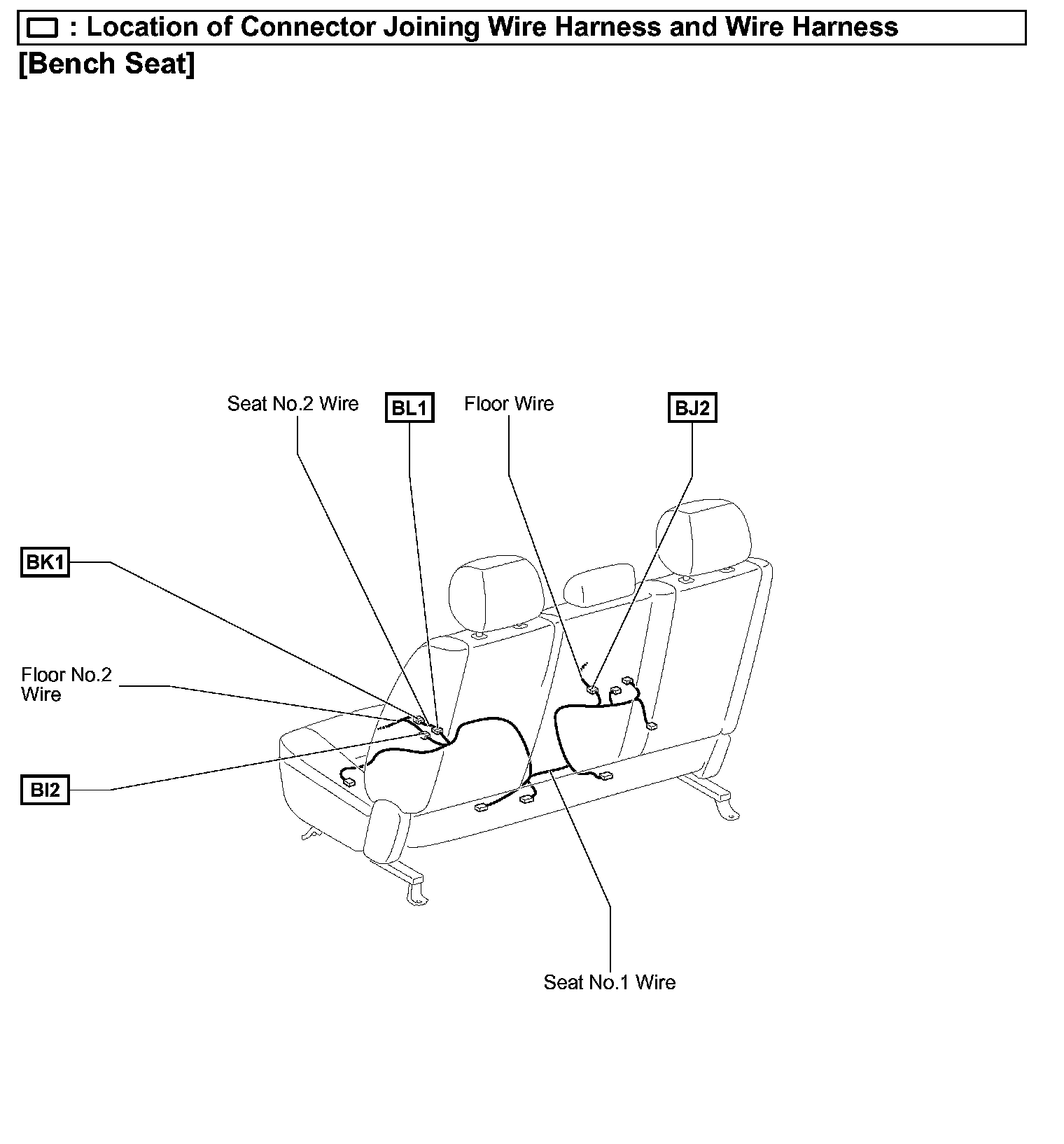

BI2 - BL1:
