Starter Relay: Testing and Inspection
INSPECTION1. INSPECT STARTER RELAY
a. Check the resistance.

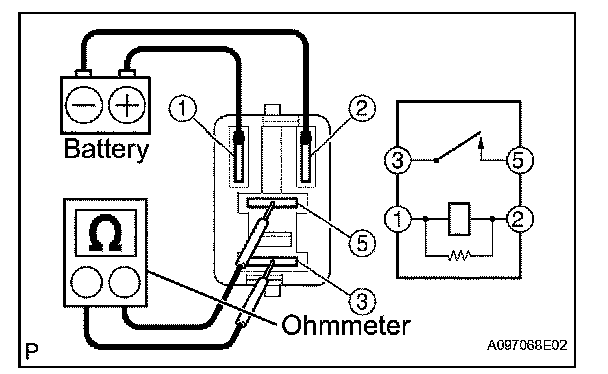

1. Using an ohmmeter, measure the resistance between the terminals.

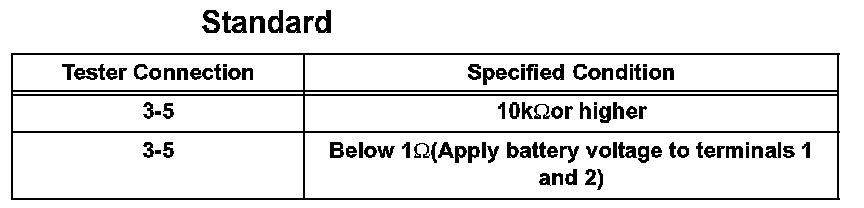

If the result is not as specified, replace the starter relay.
1. INSPECT STARTER RELAY
a. Check the resistance.
1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the starter relay.
