C0205

DTC C0205/32 Left Front Wheel Speed Sensor Signal

DESCRIPTION

DTC Detection Condition:

The speed sensors detect the wheel speeds and send appropriate signals to the skid control ECU.

Speed sensor rotors have rows of alternating N and S magnetic poles, and their magnetic fields change as the rotors turn.

The speed sensors detect those magnetic changes and send pulse signals to the skid control ECU. The ECU monitors the wheel speeds through these pulse signals to control the ABS control system.

HINT:
- DTCs C0200/31 and C1330/35 are for the front speed sensor RH.
- DTCs C0205/32 and C1331/36 are for the front speed sensor LH.

Wiring Diagram:

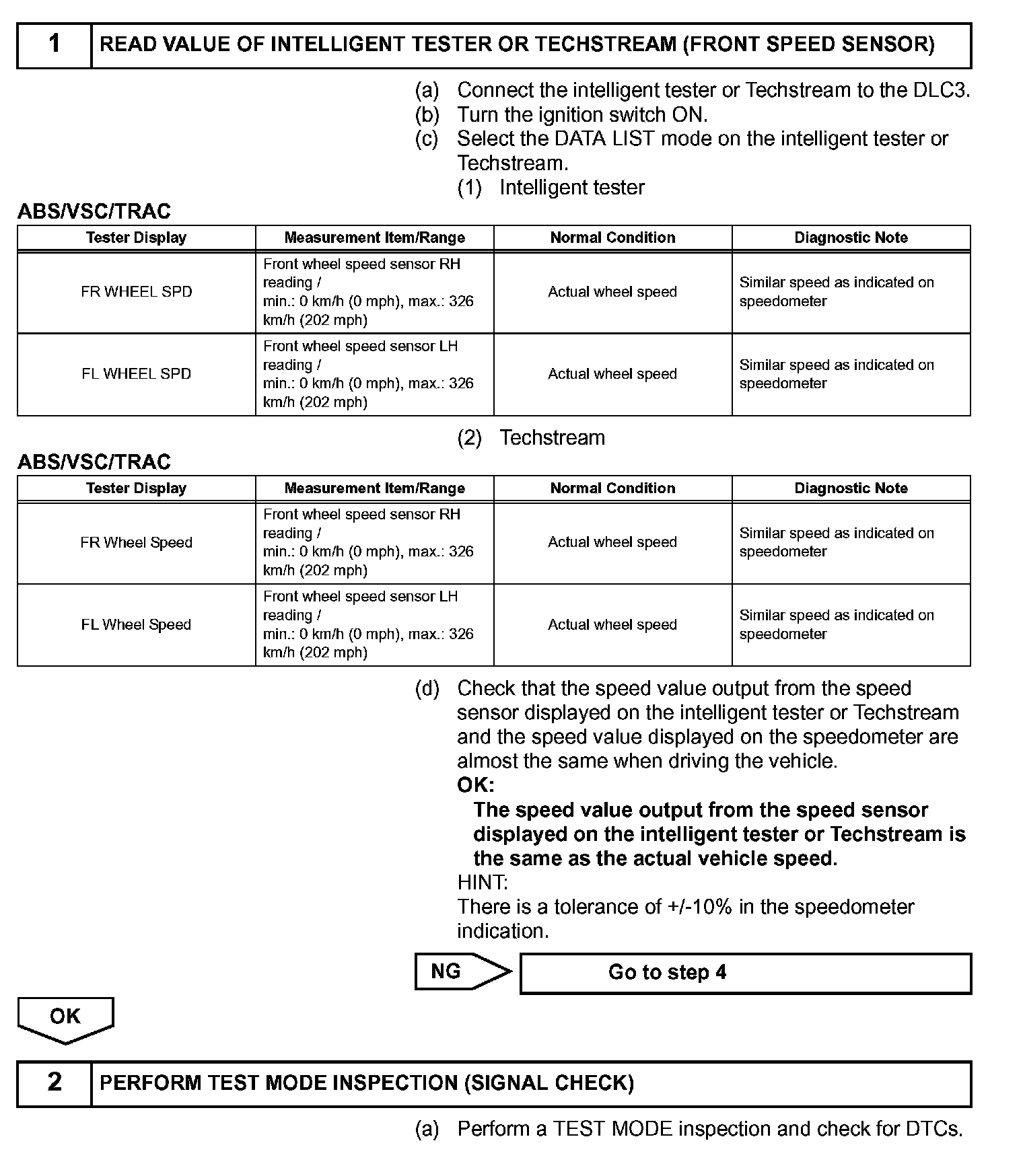

Step 1-2:

Step 2(Continued)-5:

Step 5(Continued)-7:

Step 7(Continued)-11:

Step 11(Continued):

INSPECTION PROCEDURE

NOTE:
- When replacing the VSC actuator assembly, perform zero point calibration. Calibration
- Check the speed sensor signal in test mode after cleaning or replacement.
