DTC B1695/16 Passenger Side Door Side Airbag Sensor Malfunction

DESCRIPTION

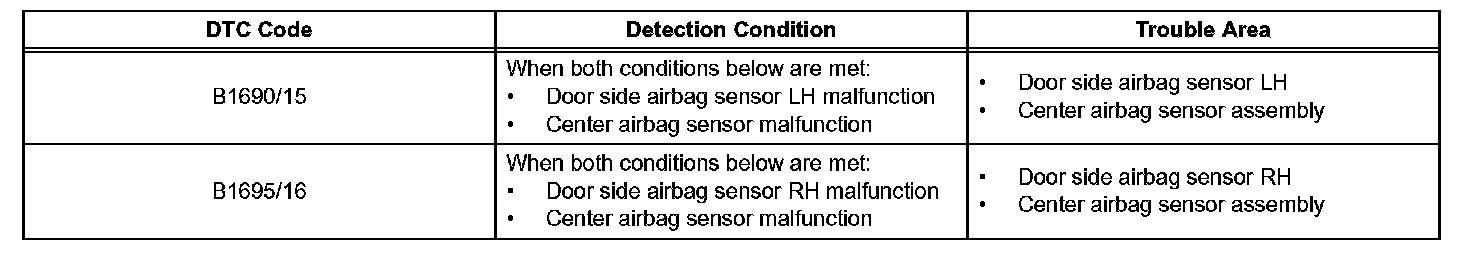

Detection Condition:

The door side airbag sensor LH or RH consists of the safing sensor, the diagnostic circuit, the lateral deceleration sensor, etc.

If the center airbag sensor receives signals from the lateral deceleration sensor, it determines whether the SRS should be activated.

DTC B1630/23 or B1635/24 is recorded when a malfunction is detected in the side airbag sensor LH or RH circuit.

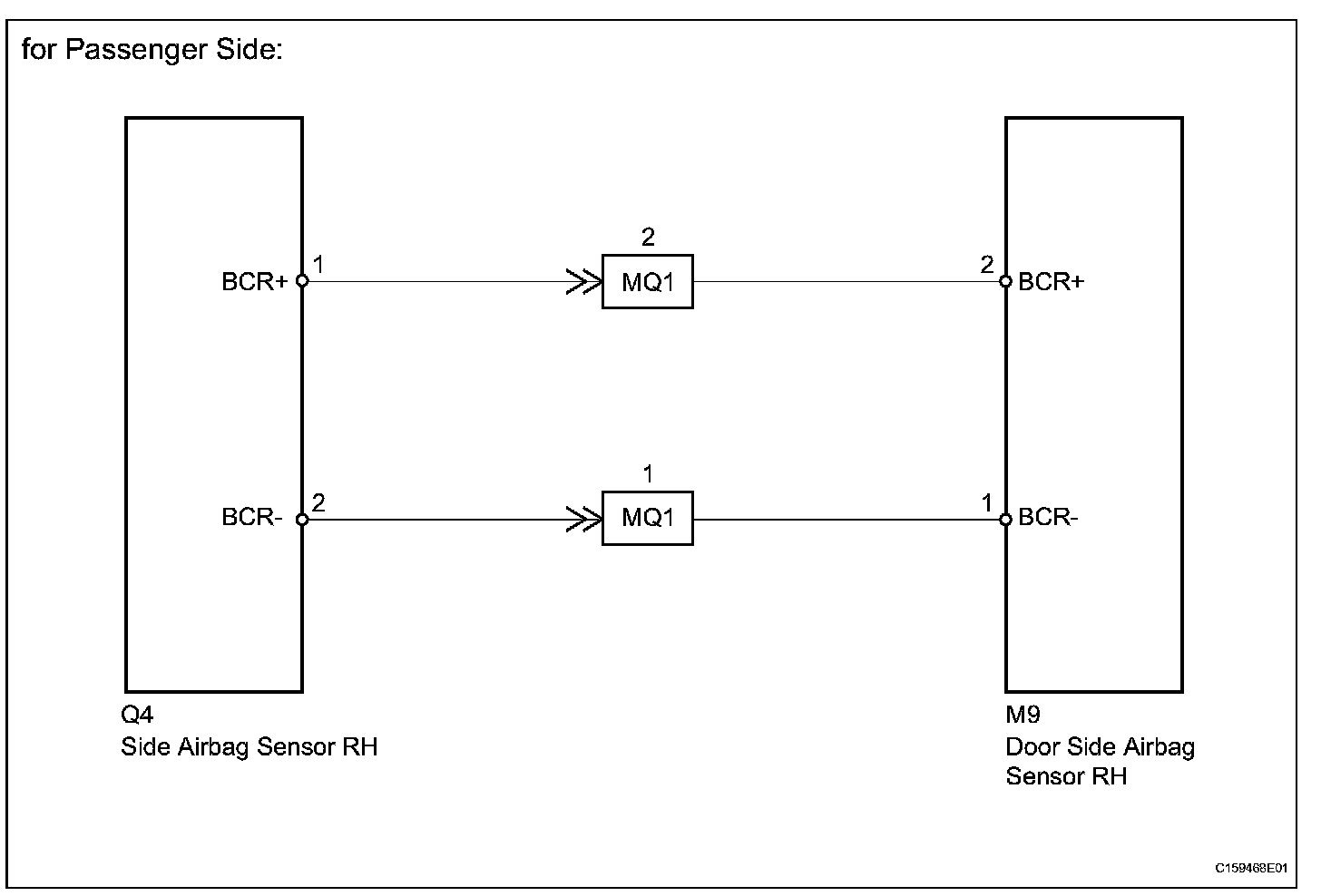

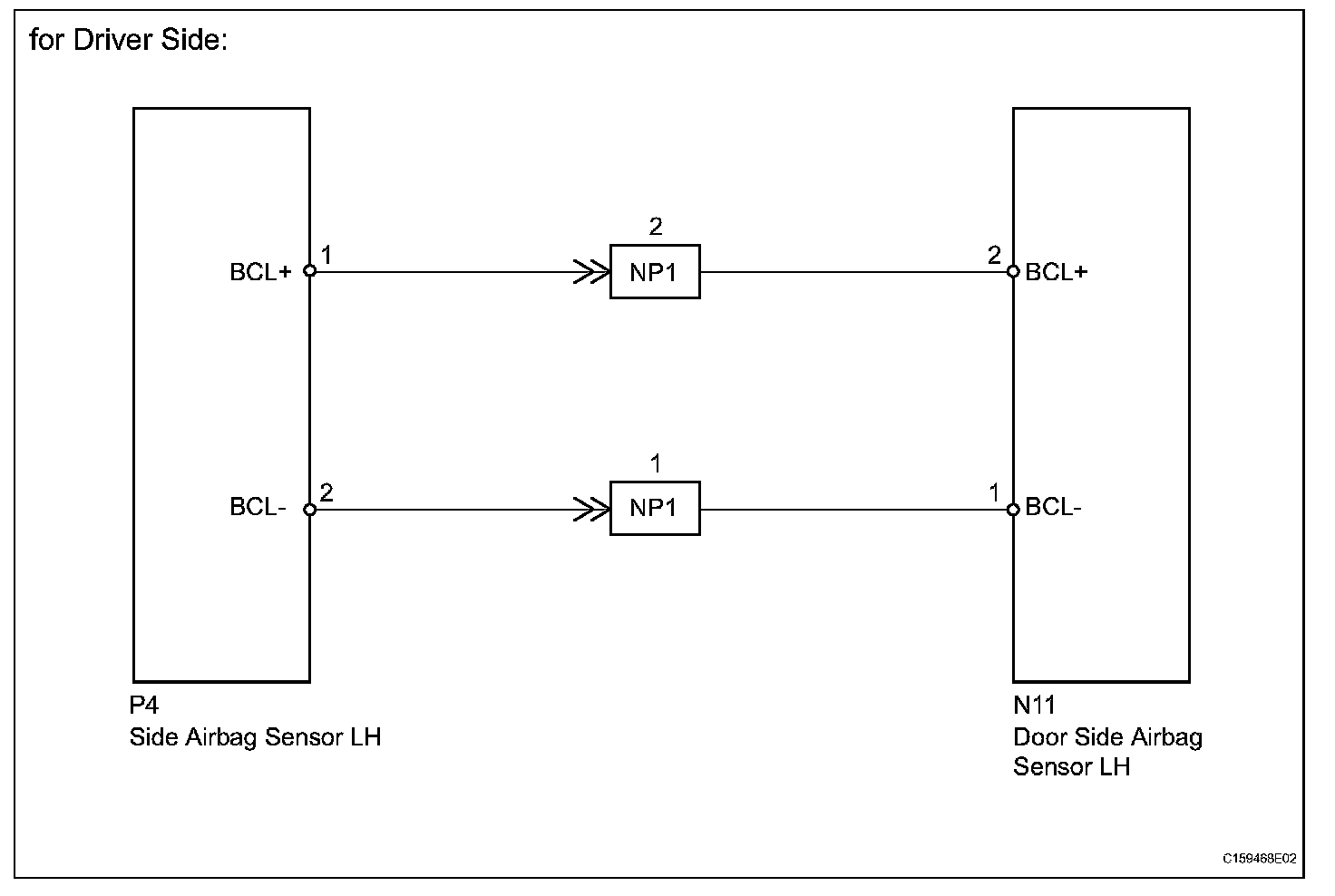

Wiring Diagram:

Step 1:

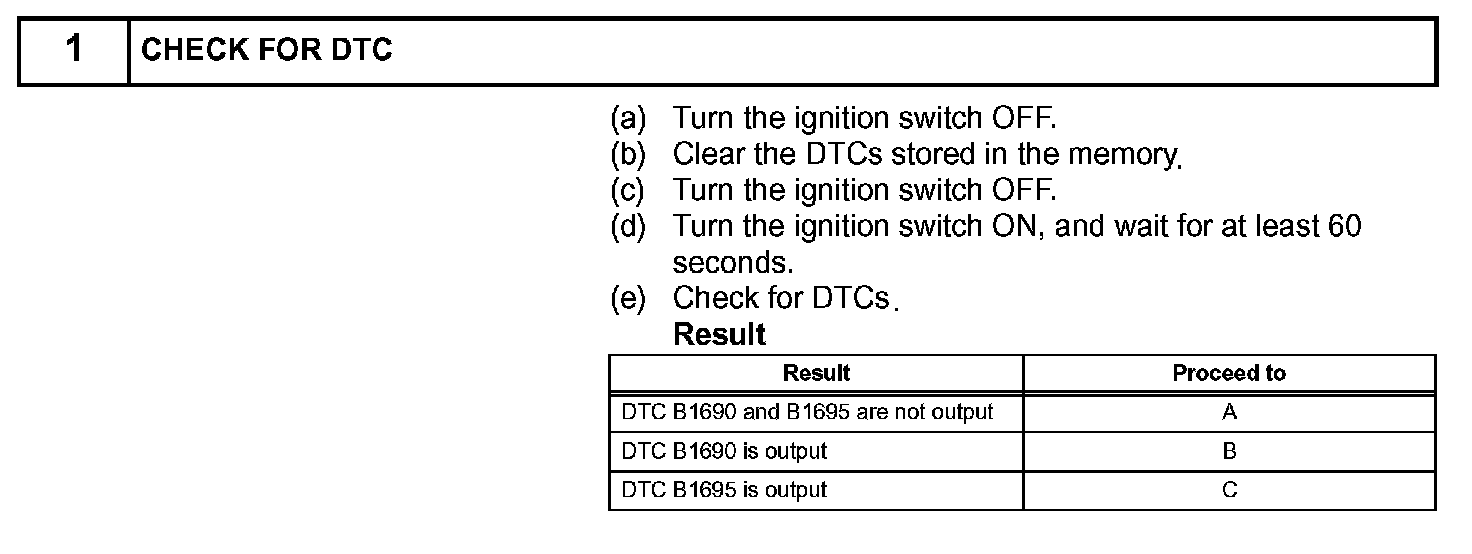

Step 1 (Continued)-2:

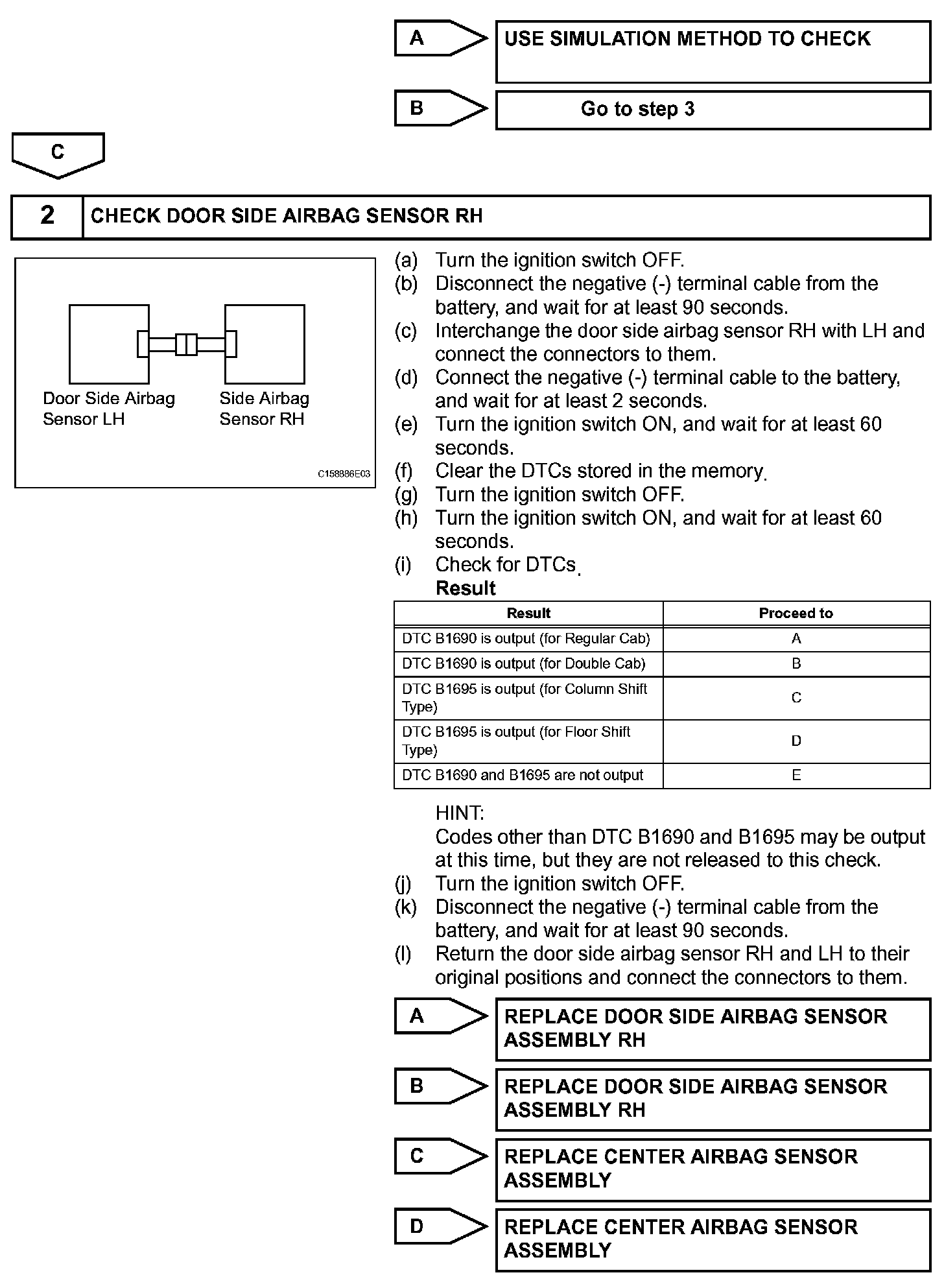

Step 2 (Continued)-3:

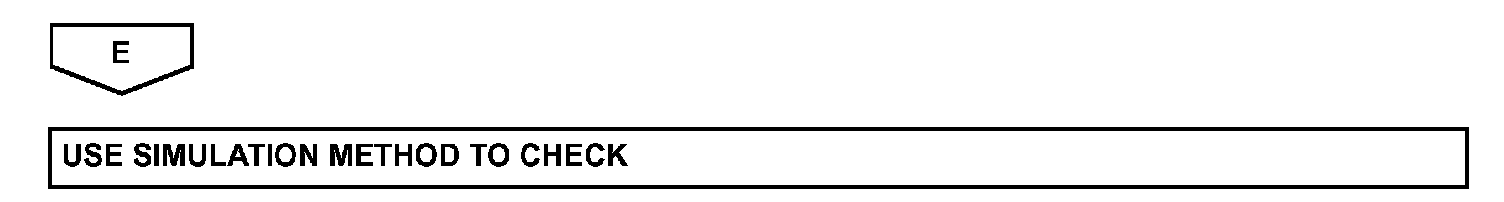

Step 3 (Continued):

INSPECTION PROCEDURE

NOTE:
- When disconnecting the cable from the negative (-) battery terminal while performing repairs, some systems need to be initialized after the cable is reconnected.
- After the ignition switch is turned OFF, the navigation system requires approximately 90 seconds to record various types of memory and settings. As a result, after turning the ignition switch OFF, wait 90 seconds or more before disconnecting the cable from the negative (-) battery terminal.
