P0705

DTC P0705 Transmission Range Sensor Circuit Malfunction (PRNDL Input)

DESCRIPTION
The Park/Neutral Position (PNP) switch detects the shift lever position and sends signals to the ECM.





MONITOR DESCRIPTION
These DTCs indicate a problem with the park/neutral position switch and the wire harness in the park/ neutral position switch circuit.

The park/neutral position switch detects the shift lever position and sends a signal to the ECM.

For security, the park/neutral position switch detects the shift lever position so that the engine can be started only when the shift lever is on P or N.

The park/neutral position switch sends a signal to the ECM according to the shift lever position (P, R, N, D or S).

The ECM determines that there is a problem with the switch or related parts if it receives more than 1 position signal simultaneously. The ECM will illuminate the MIL and store the DTC.

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE

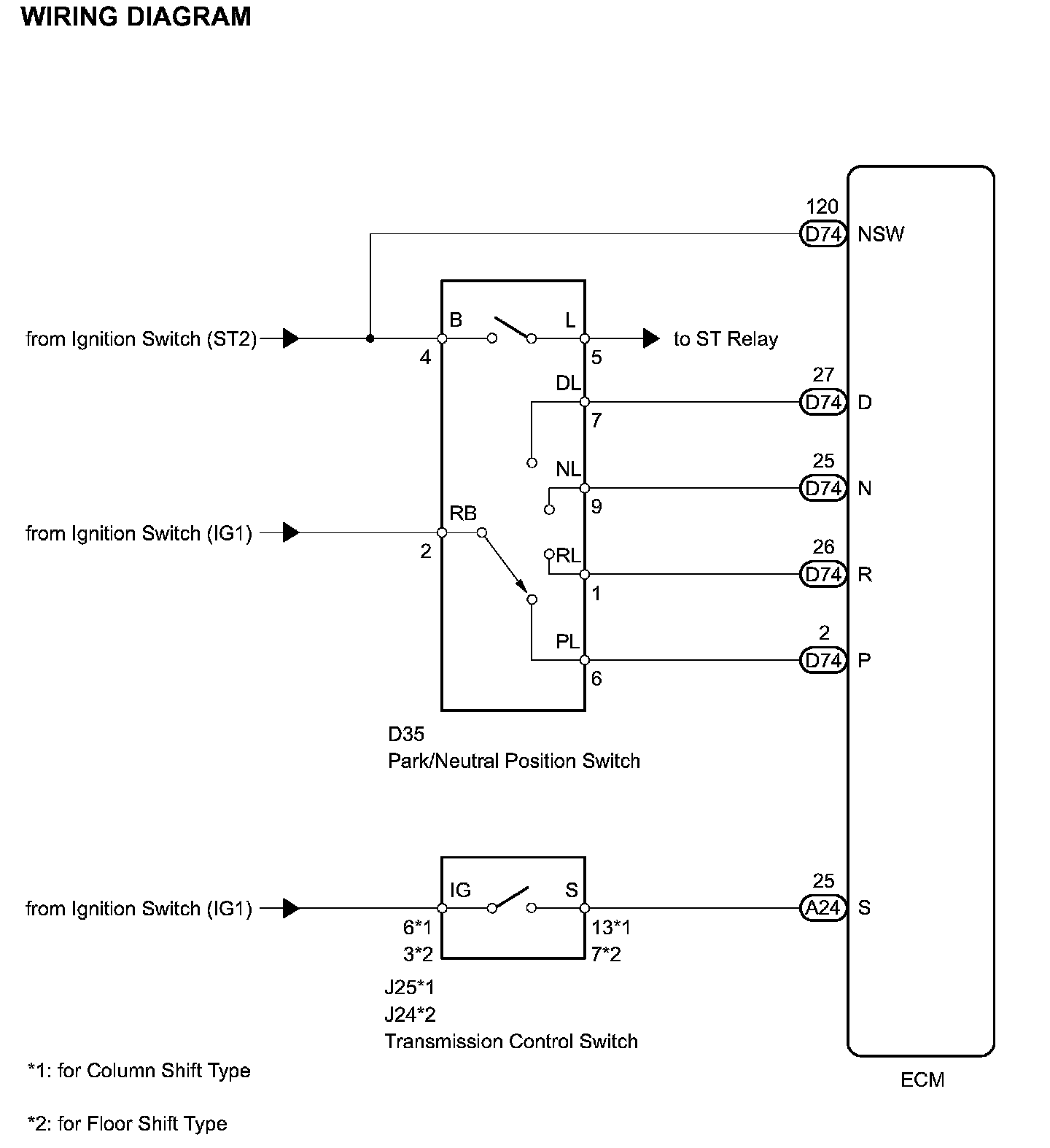

Wiring Diagram:

INSPECTION PROCEDURE
1. DATA LIST

HINT: Using the intelligent tester or Techstream Data List allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the Data List early in troubleshooting is one way to save time.

NOTICE: In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

(a) Warm up the engine.
(b) Turn the ignition switch OFF.
(c) Connect the intelligent tester or Techstream to the DLC3.
(d) Turn the ignition switch ON and push the tester switch ON.
(e) Enter the following menus:
(1) Intelligent tester - Select: DIAGNOSIS / OBD/MOBD / ECT / DATA LIST /
(2) Techstream - Select: Powertrain / Engine and ECT / Data List /
(f) Follow the instructions on the tester and read the Data List.
(1) Intelligent tester

ECT:

(2) Techstream

ECT (Part 1):

ECT (Part 2):

Step 1:

Step 2:

Step 3-4:

Step 4-5:

Step 5-6:
