Wheels - Lug Nut Torque Specifications

PRODUCT GENERAL INFORMATION
PG001-07

Title:
WHEEL LUG NUT
TORQUE SPECIFICATION

Models:
'07 Tundra

Introduction





The wheel lug nuts equipped on the 2007 model year Tundra vehicles have new torque specifications. This bulletin provides detailed information for both aluminum and steel wheels.

Applicable Vehicles

^ 2007 model year Tundra vehicles.





Required Tools & Material





Specifications

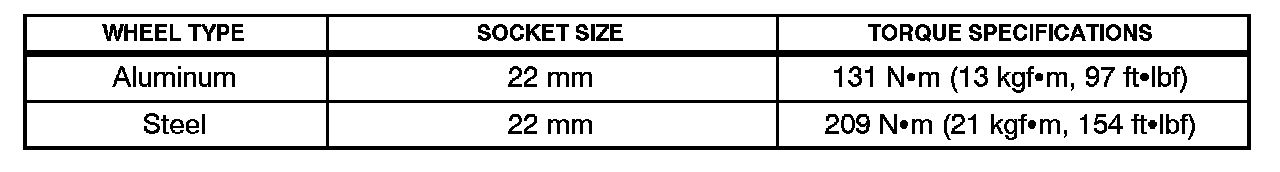

Wheel Lug Nut Torque:

Repair Procedure

Torque the wheel lug nut to the specified value when wheels are installed.





Warranty Information
