Accelerator Pedal Position Sensor: Testing and Inspection

ON-VEHICLE INSPECTION

1. INSPECT ACCELERATOR PEDAL ROD ASSEMBLY
a. Connect the intelligent tester or Techstream to the DLC3.
b. Turn the ignition switch ON.
c. Push the intelligent tester or Techstream main switch ON.

d. Enter the following menus:
1. Intelligent tester - Select: DIAGNOSIS / ENHANCED OBD II / DATA LIST / ETCS / ACCEL POS #1 and ACCEL POS #2.
2. Techstream - Select: Powertrain / Engine and ECT / Data List / ETCS / Accelerator Position No. 1 and Accelerator Position No. 2.

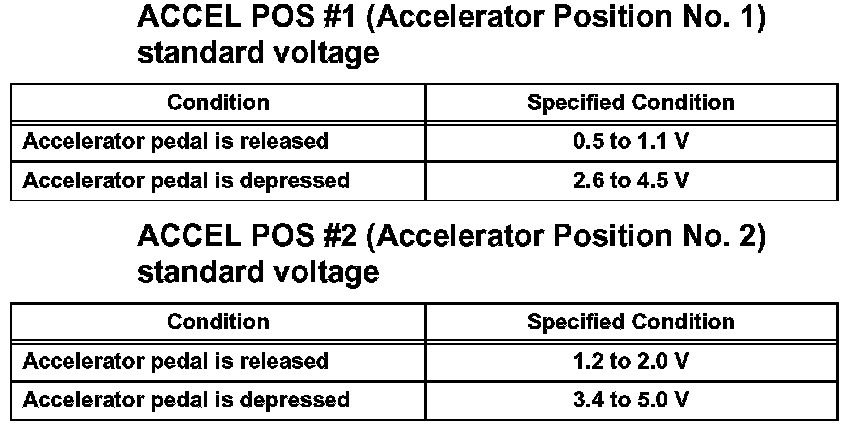

e. Read the value displayed on the tester.

If the result is not as specified, check the accelerator pedal, wire harness or ECM.
