Camshaft Position Sensor: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
- Some systems need to be initialized after the cable is reconnected.
- After the ignition switch is turned OFF, the navigation system requires approximately 90 seconds to record various types of memory and settings. As a result, after turning the ignition switch OFF, wait 90 seconds or more before disconnecting the cable from the negative (-) battery terminal.
2. DRAIN ENGINE COOLANT
3. REMOVE DRIVE BELT
4. DISCONNECT NO. 1 RADIATOR HOSE
5. REMOVE NO. 3 TIMING BELT COVER SUBASSEMBLY LH
6. REMOVE CAMSHAFT POSITION SENSOR

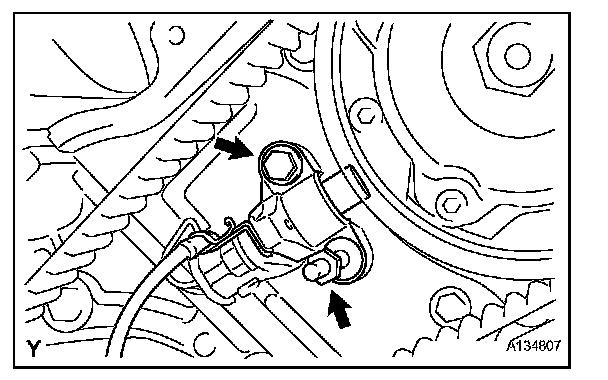

a. Remove the bolt, stud bolt and camshaft position sensor.
INSTALLATION
1. INSTALL CAMSHAFT POSITION SENSOR

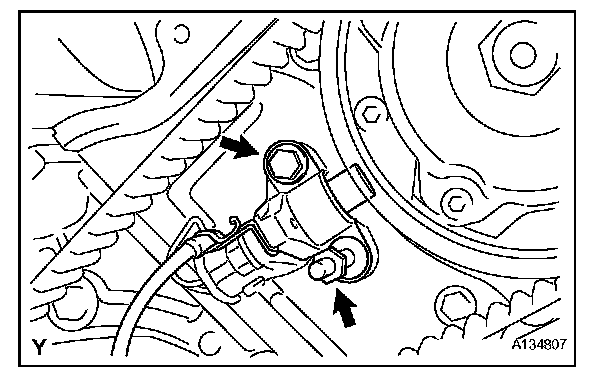

a. Install the camshaft position sensor with the bolt and stud bolt.
Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)
2. INSTALL NO. 3 TIMING BELT COVER SUBASSEMBLY LH
3. CONNECT NO. 1 RADIATOR HOSE
4. INSTALL DRIVE BELT
5. ADD ENGINE COOLANT
6. INSPECT FOR COOLANT LEAK
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: Some systems need to be initialized after the cable is reconnected.
