Crankshaft Position Sensor: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
- Some systems need to be initialized after the cable is reconnected.
- After the ignition switch is turned OFF, the navigation system requires approximately 90 seconds to record various types of memory and settings. As a result, after turning the ignition switch OFF, wait 90 seconds or more before disconnecting the cable from the negative (-) battery terminal.
2. REMOVE NO. 1 ENGINE UNDER COVER
3. REMOVE CRANKSHAFT POSITION SENSOR
a. Disconnect the sensor connector.

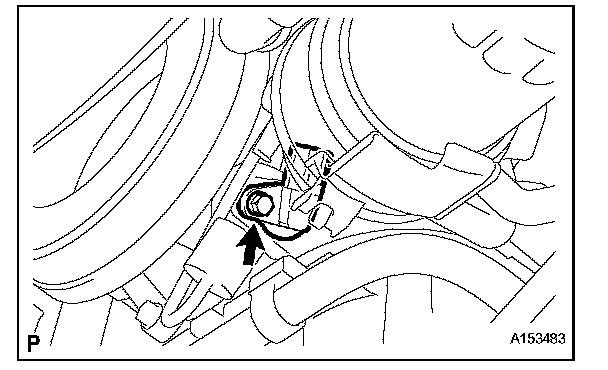

b. Remove the bolt and sensor.
INSTALLATION
1. INSTALL CRANKSHAFT POSITION SENSOR

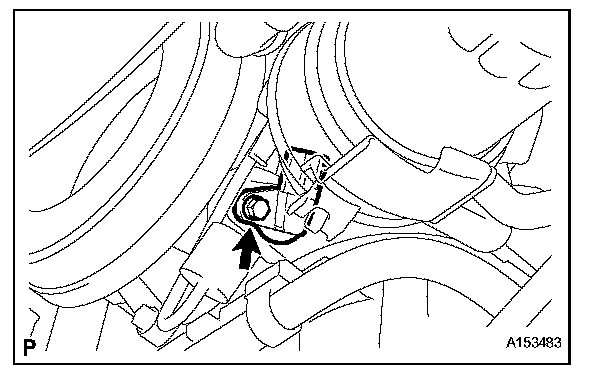

a. Install the sensor with the bolt.
Torque: 6.5 N.m (65 kgf.cm, 58 in.lbf)
b. Connect the sensor connector.
2. INSTALL NO. 1 ENGINE UNDER COVER
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: Some systems need to be initialized after the cable is reconnected.
