Circuit Opening Relay
ON-VEHICLE INSPECTION1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
- Some systems need to be initialized after the cable is reconnected./
- After the ignition switch is turned OFF, the navigation system requires approximately 90 seconds to record various types of memory and settings. As a result, after turning the ignition switch OFF, wait 90 seconds or more before disconnecting the cable from the negative (-) battery terminal.
2. REMOVE CIRCUIT OPENING RELAY (C/OPN)
a. Remove the engine room relay block cover.
b. Remove the circuit opening relay from the engine room relay block.

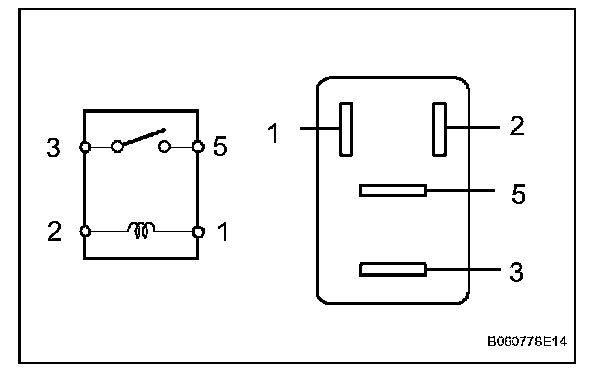

3. INSPECT CIRCUIT OPENING RELAY (C/OPN)

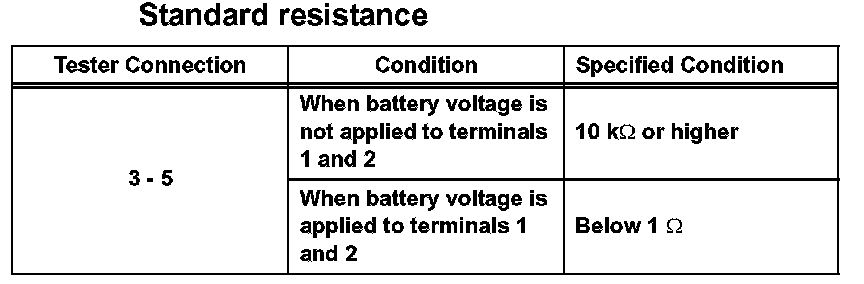

a. Measure the resistance according to the the value(s) in the table.
If the result is not as specified, replace the relay.
4. INSTALL CIRCUIT OPENING RELAY (C/OPN)
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: Some systems need to be initialized after the cable is reconnected.
