Active Test

ACTIVE TEST

HINT: Using the intelligent tester or Techstream to perform Active Tests allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.

a. Warm up the engine.
b. Turn the ignition switch OFF.
c. Connect the intelligent tester or Techstream to the DLC3.
d. Turn the ignition switch ON.
e. Turn the tester ON.

f. Enter the following menus:

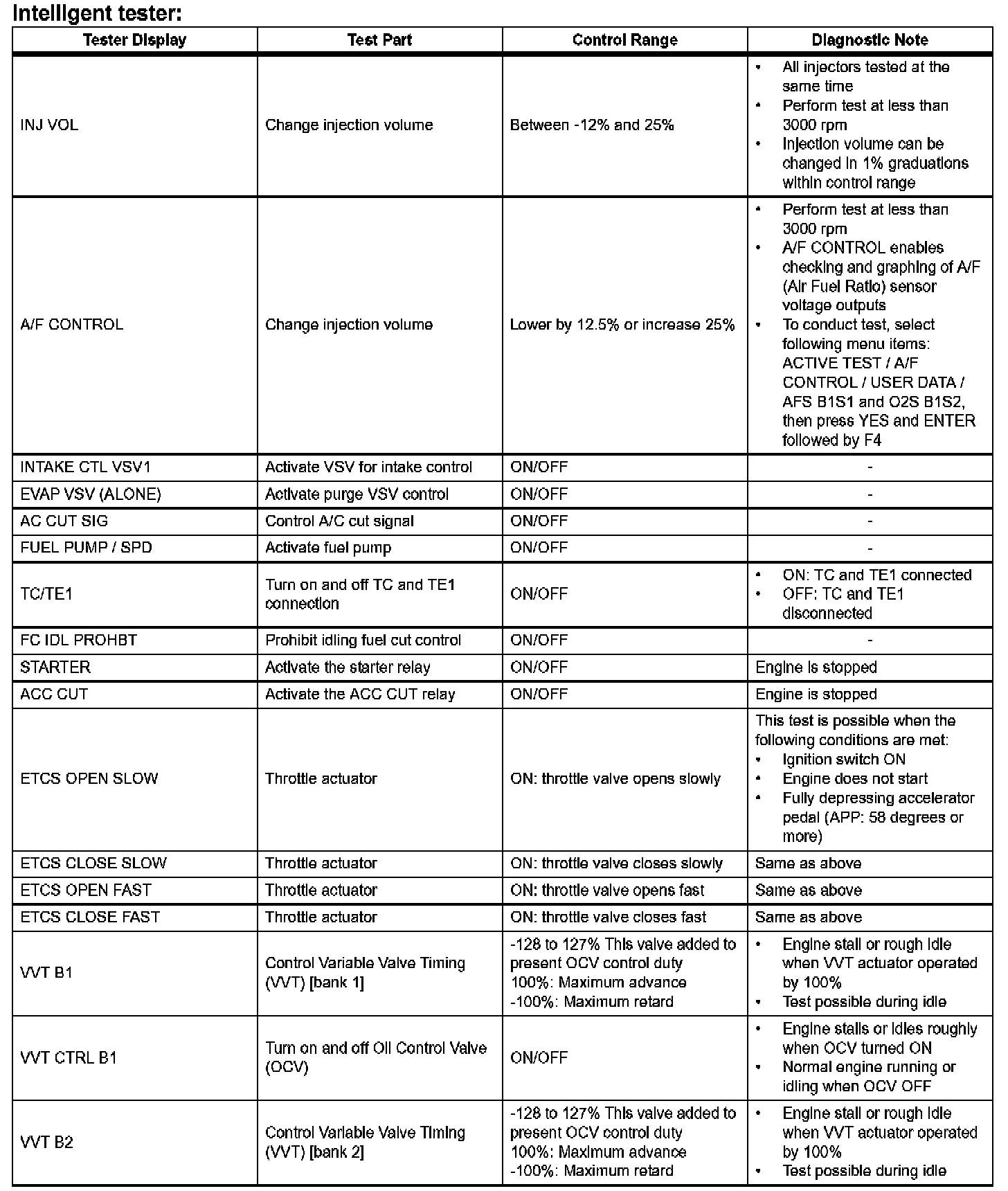

1. Intelligent tester - Select: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST /

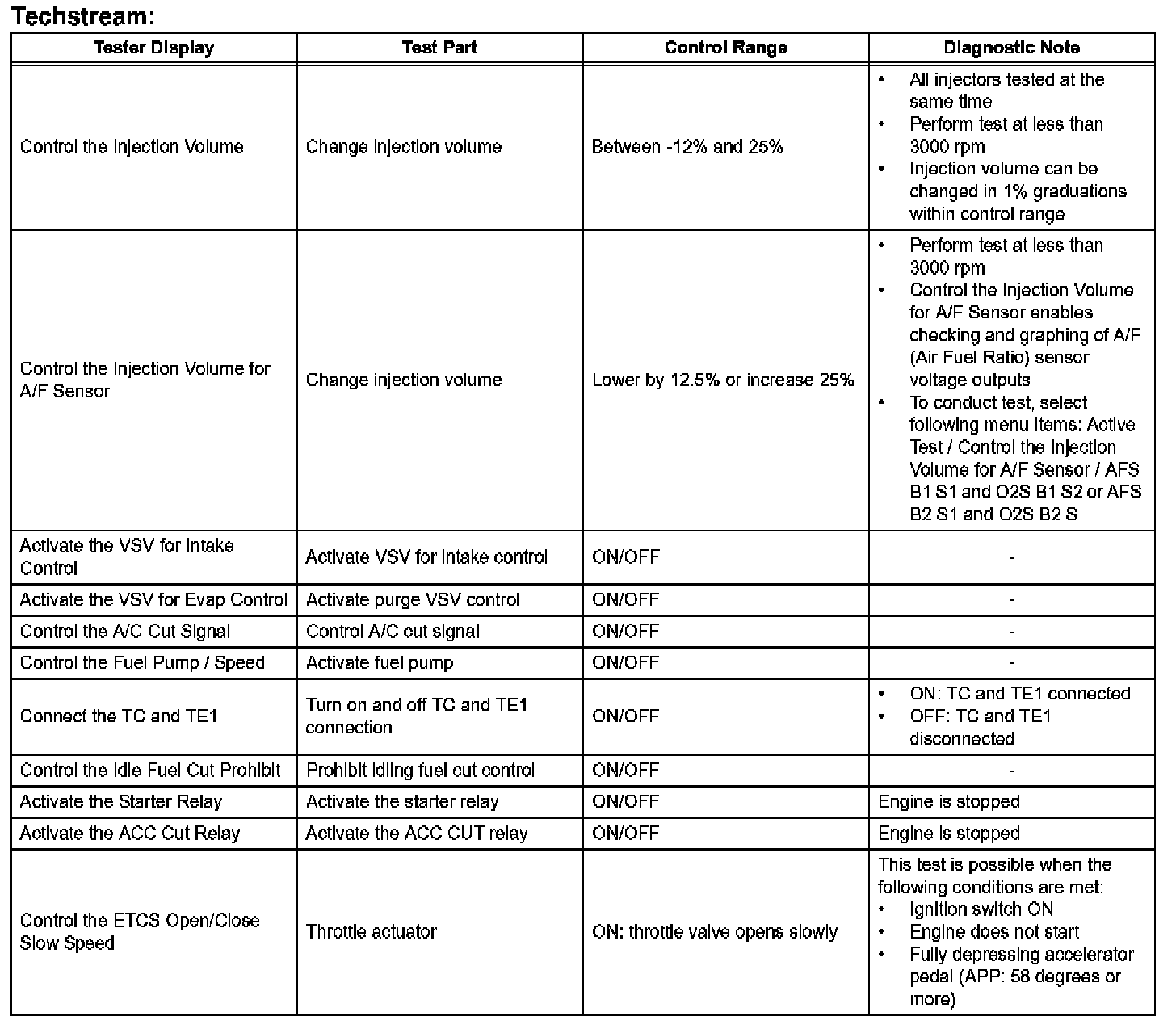

2. Techstream - Select: Powertrain / Engine and ECT / Active Test /

Part 1:

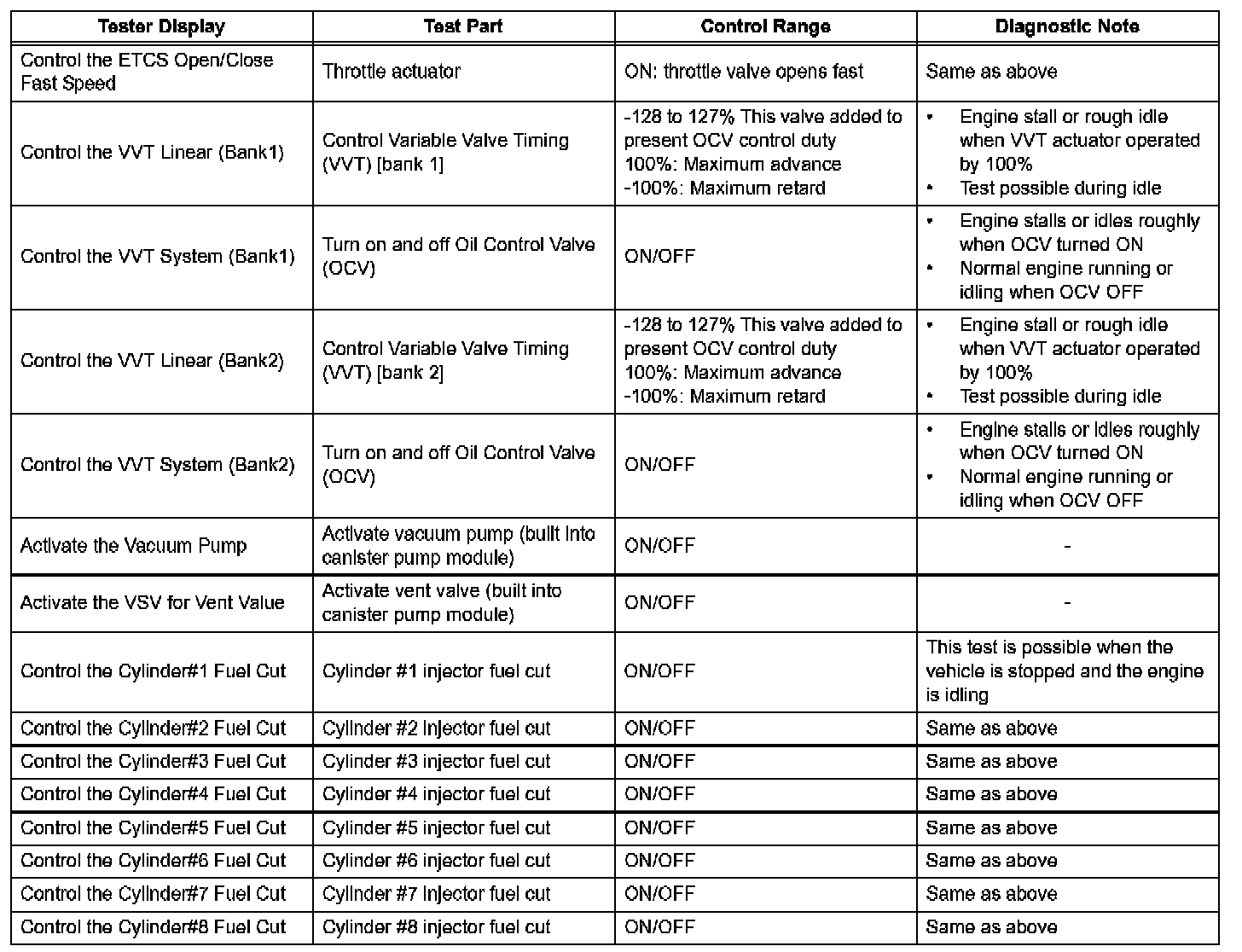

Part 2:

Part 1:

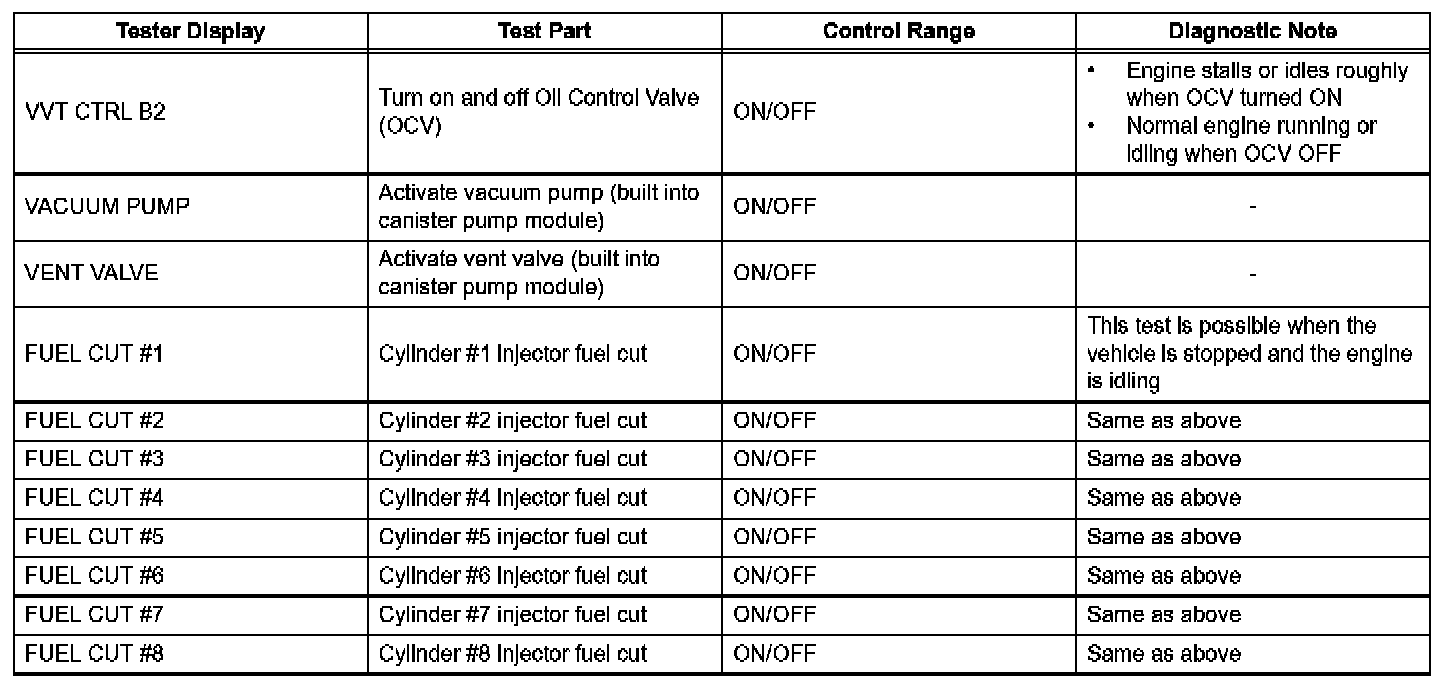

Part 2:

g. According to the display on the tester, perform the Active Test.
