Transmission Control Switch Circuit

Transmission Control Switch Circuit

DESCRIPTION
When moving the shift lever into the S position using the transmission control switch, it is possible to switch the shift range position between "1" (1st range) and "5" (5th range). Shifting to "+" once raises the shift range position by one, and shifting to "-" lowers the shift range position by one.

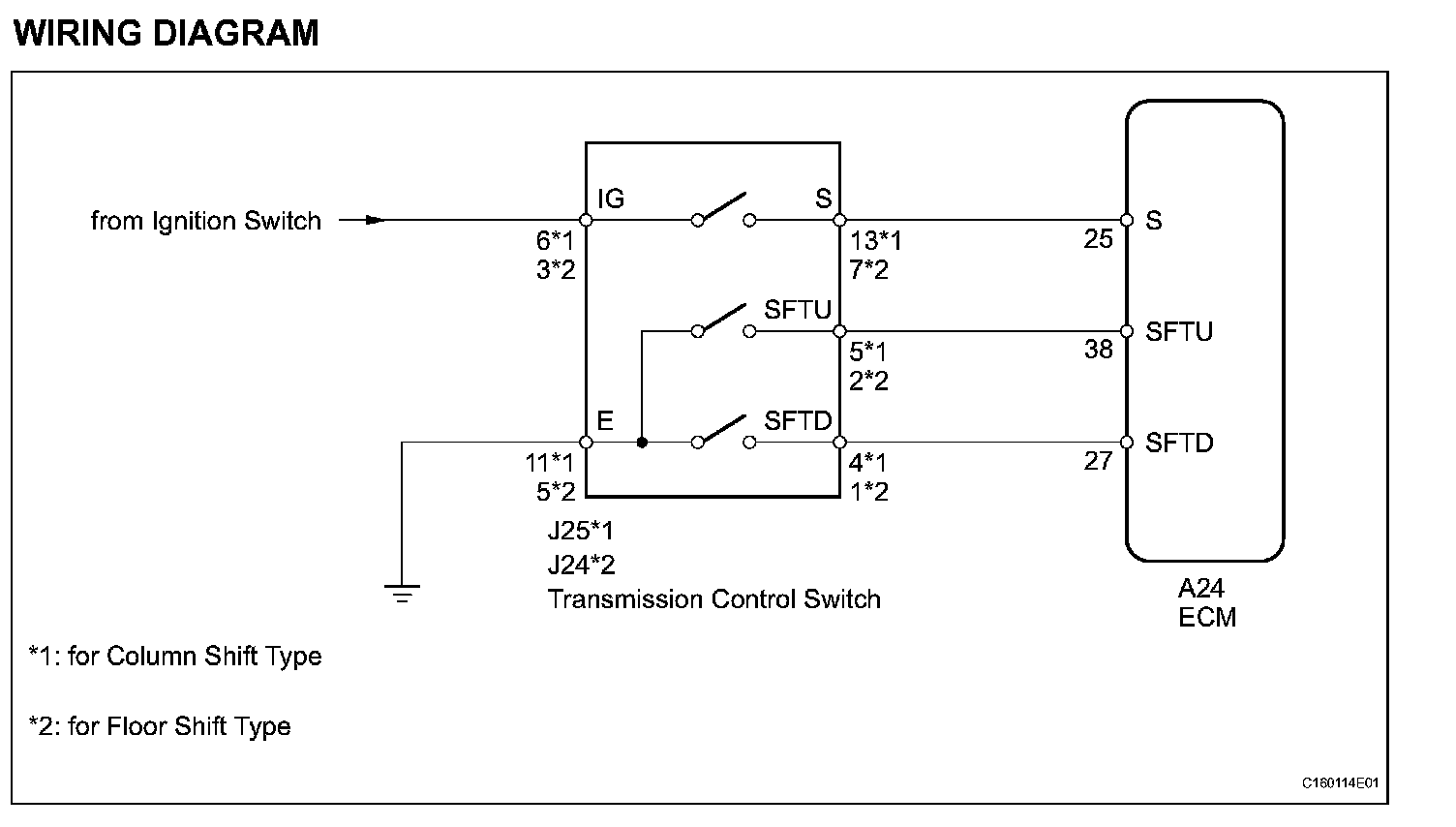

Wiring Diagram:





INSPECTION PROCEDURE

Step 1:

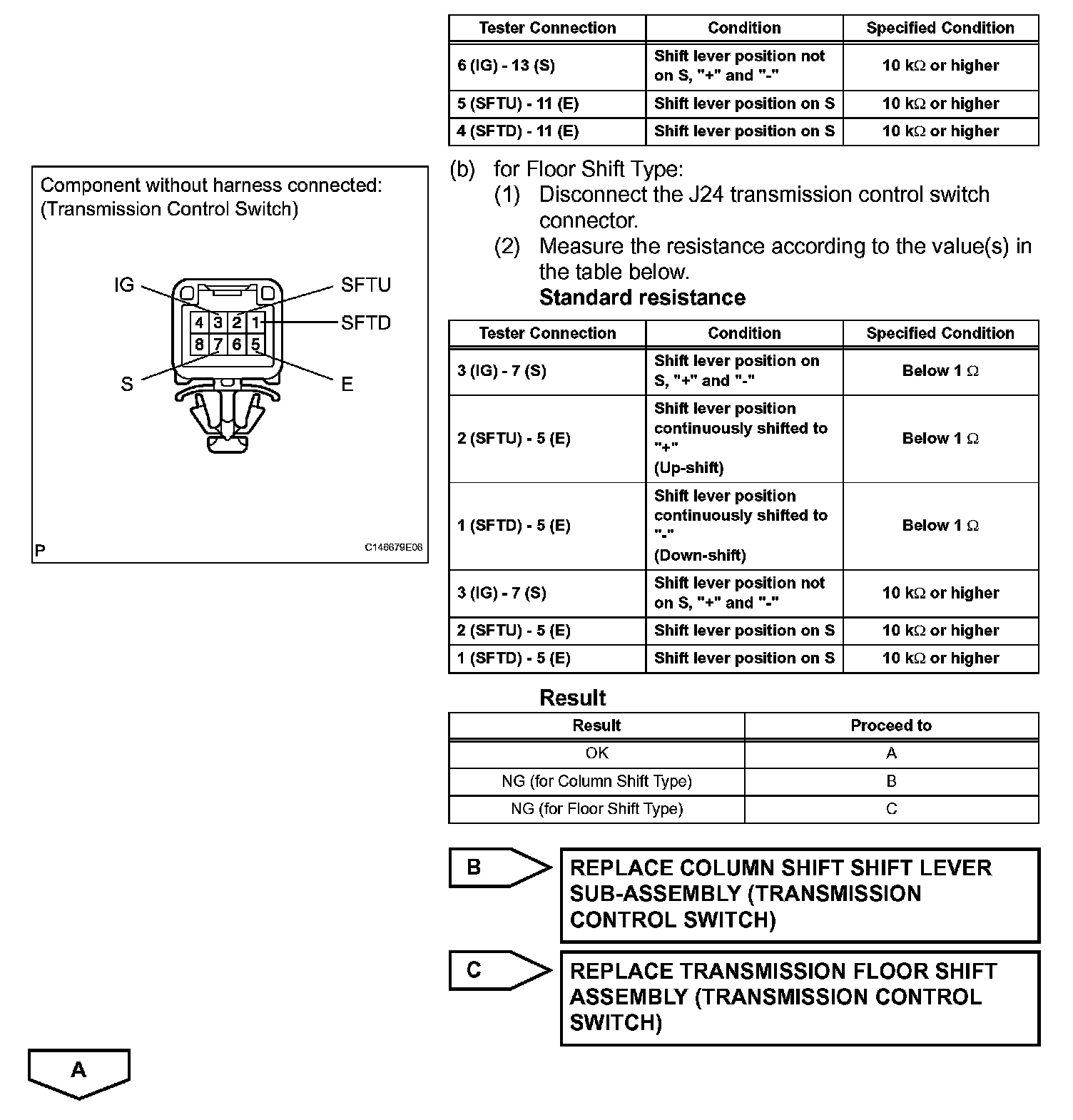

Step 1:




Step 2:

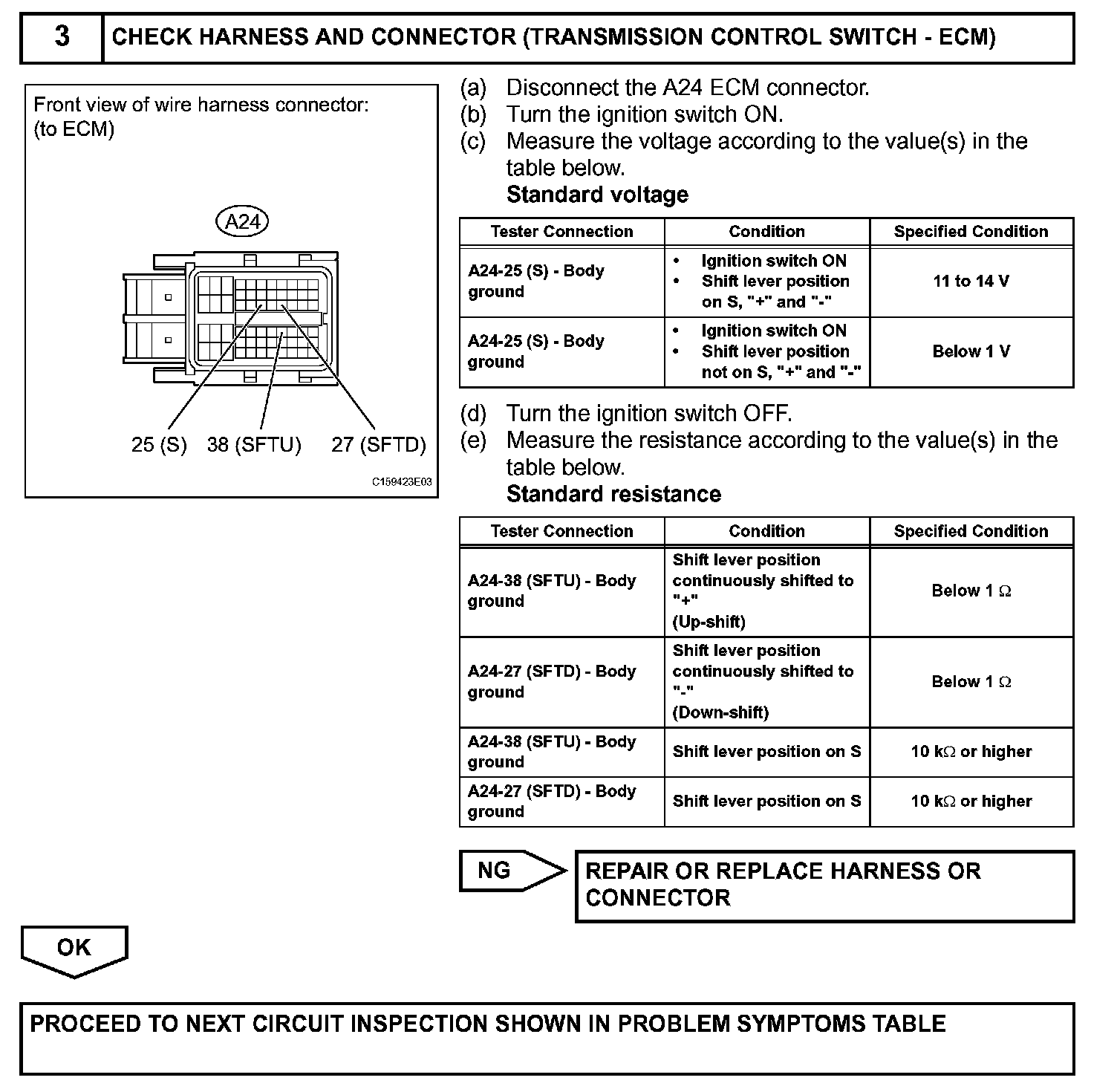

Step 3:
