Data Link Connector: Locations

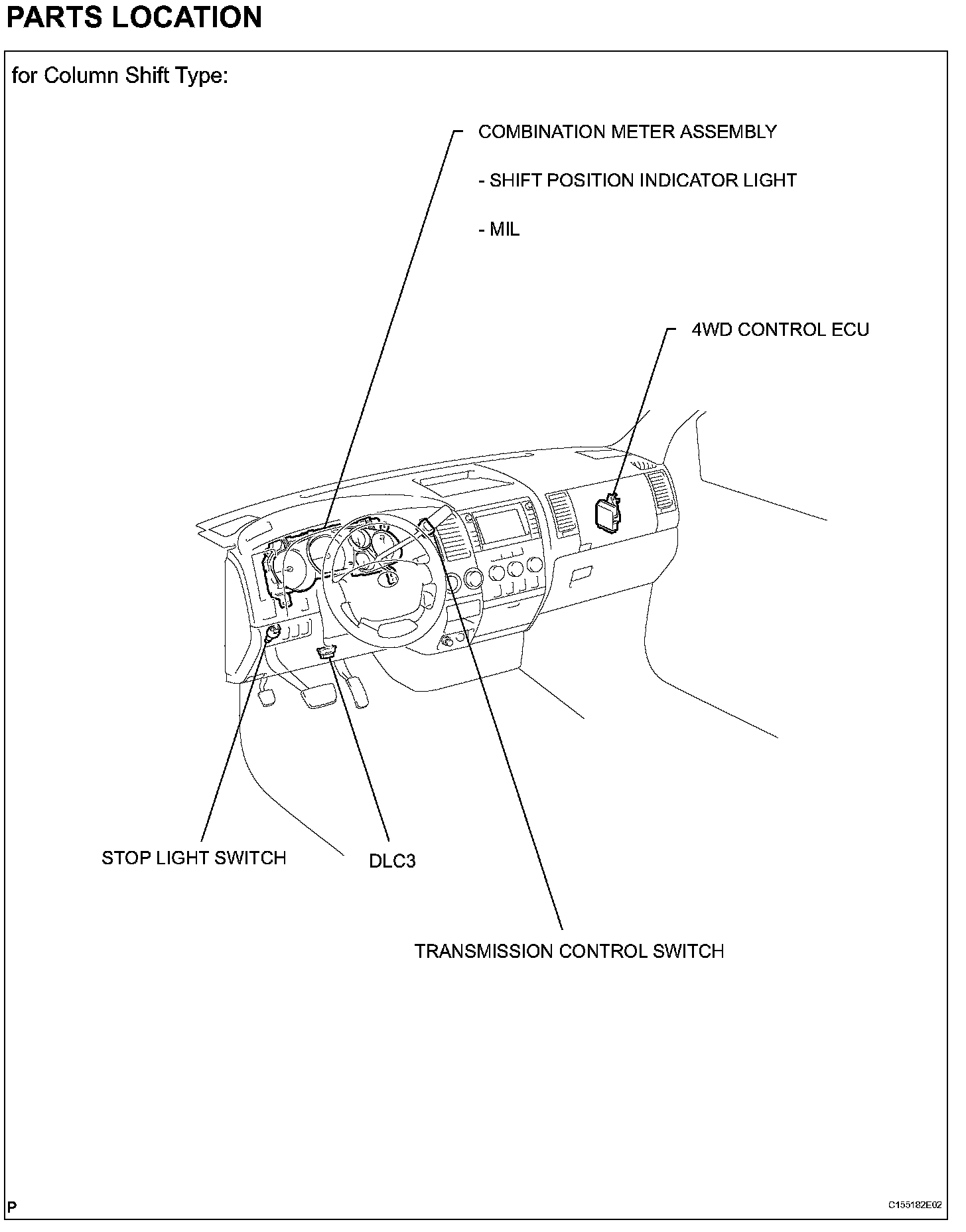

Parts Location (for Column Shift Type):

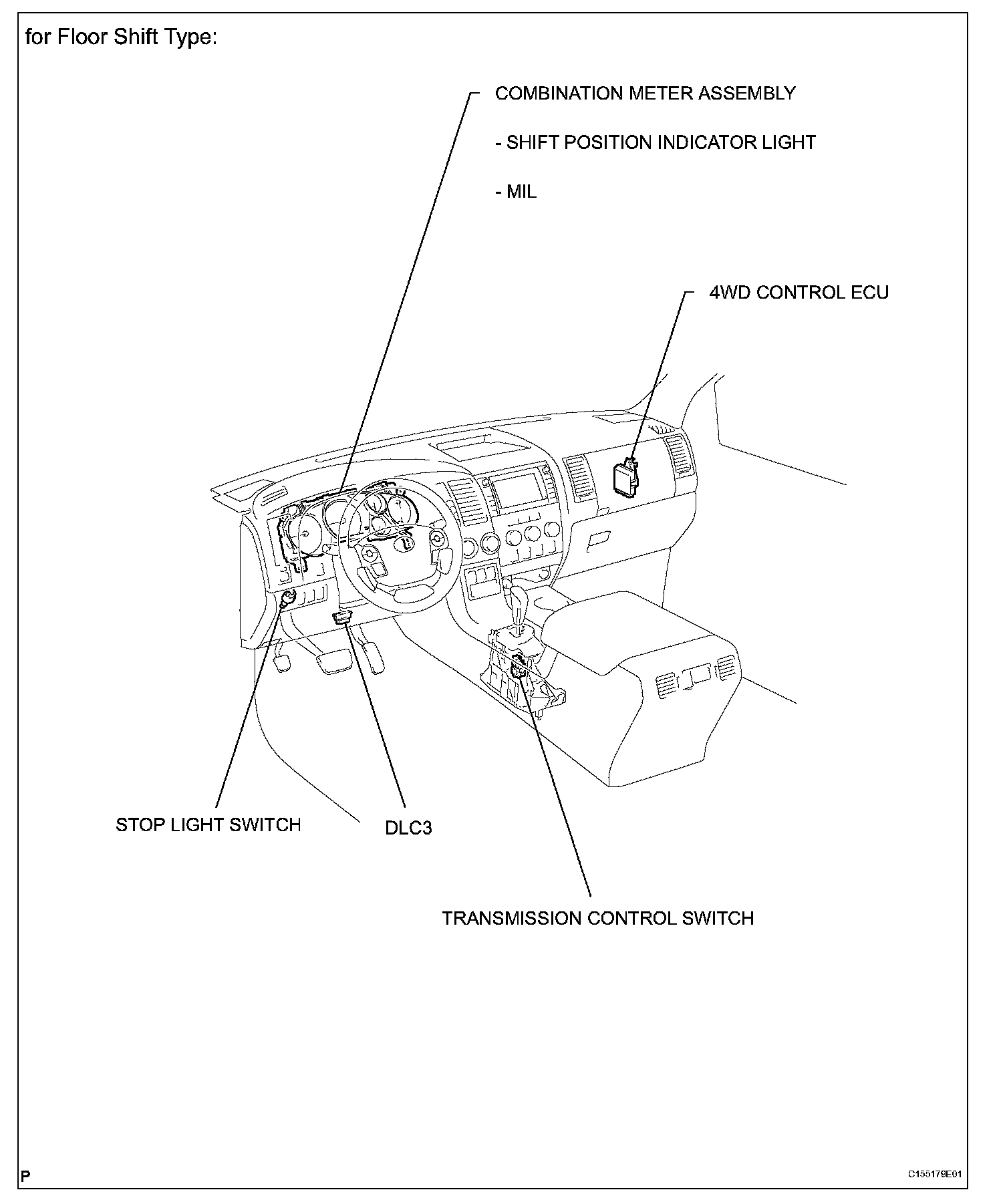

Parts Location (for Floor Shift Type):
A/C - VSV:
A/C - Wi:
