C0210

DTC C0210/33 Right Rear Wheel Speed Sensor Signal

DESCRIPTION

DTC Detection Condition:

The speed sensors detect the wheel speeds and send appropriate signals to the skid control ECU.

Speed sensor rotors have rows of alternating N and S magnetic poles, and their magnetic fields change as the rotors turn.

The speed sensors detect those magnetic changes and send pulse signals to the skid control ECU. The ECU monitors the wheel speeds through these pulse signals to control the ABS control system.

HINT:
- DTC C0210/33 and C1332/37 are for the rear speed sensor RH.
- DTC C0215/34 and C1333/38 are for the rear speed sensor LH.

Wiring Diagram:

Step 1:

Step 1(Continued)-3:

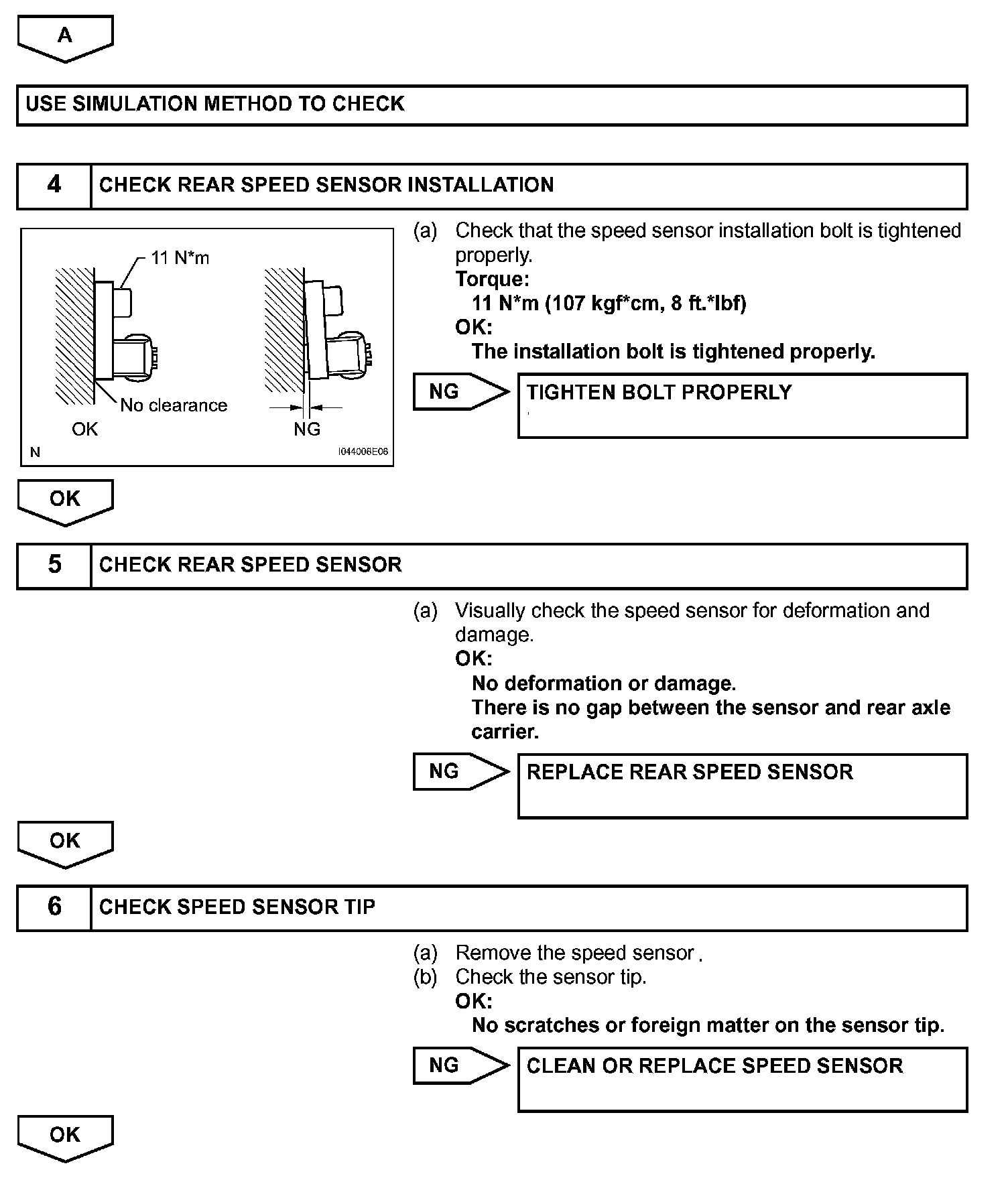

Step 3(Continued)-6:

Step 7-8:

Step 8(Continued)-11:

INSPECTION PROCEDURE
