Short to B+ in Driver Side Curtain Shield Squib Circuit

DTC B1833/57 Short to B+ in Driver Side Curtain Shield Squib Circuit

DESCRIPTION

Detection Condition:

The curtain shield squib LH circuit consists of the center airbag sensor and the curtain shield airbag LH. The circuit instructs the SRS to deploy when the deployment conditions are met.

These DTCs are recorded when a malfunction is detected in the curtain shield squib LH circuit.

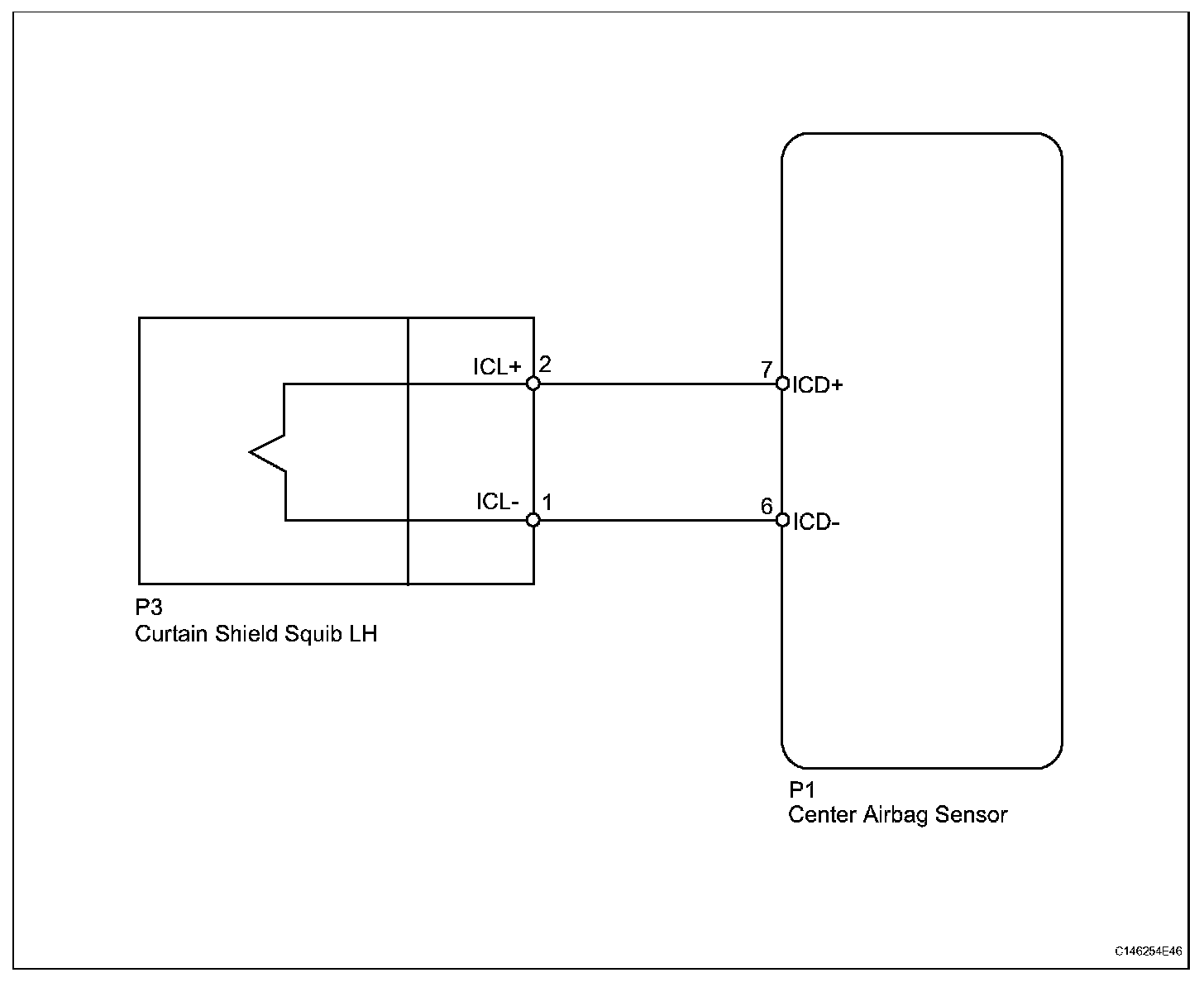

Wiring Diagram:

Step 1-2:

Step 2 (Continued)-3:

Step 4:

INSPECTION PROCEDURE

NOTE:
- When disconnecting the cable from the negative (-) battery terminal while performing repairs, some systems need to be initialized after the cable is reconnected.
- After the ignition switch is turned OFF, the navigation system requires approximately 90 seconds to record various types of memory and settings. As a result, after turning the ignition switch OFF, wait 90 seconds or more before disconnecting the cable from the negative (-) battery terminal.

HINT:
- Perform the simulation method by selecting "check mode" (signal check) with the intelligent tester or Techstream.
- After selecting "check mode" (signal check), perform the simulation method by wiggling each connector of the airbag system or driving the vehicle on various types of roads.
