Lumbar Support Adjuster Assembly (For Manual Seat)

LUMBAR SUPPORT ADJUSTER ASSEMBLY (for Manual Seat)

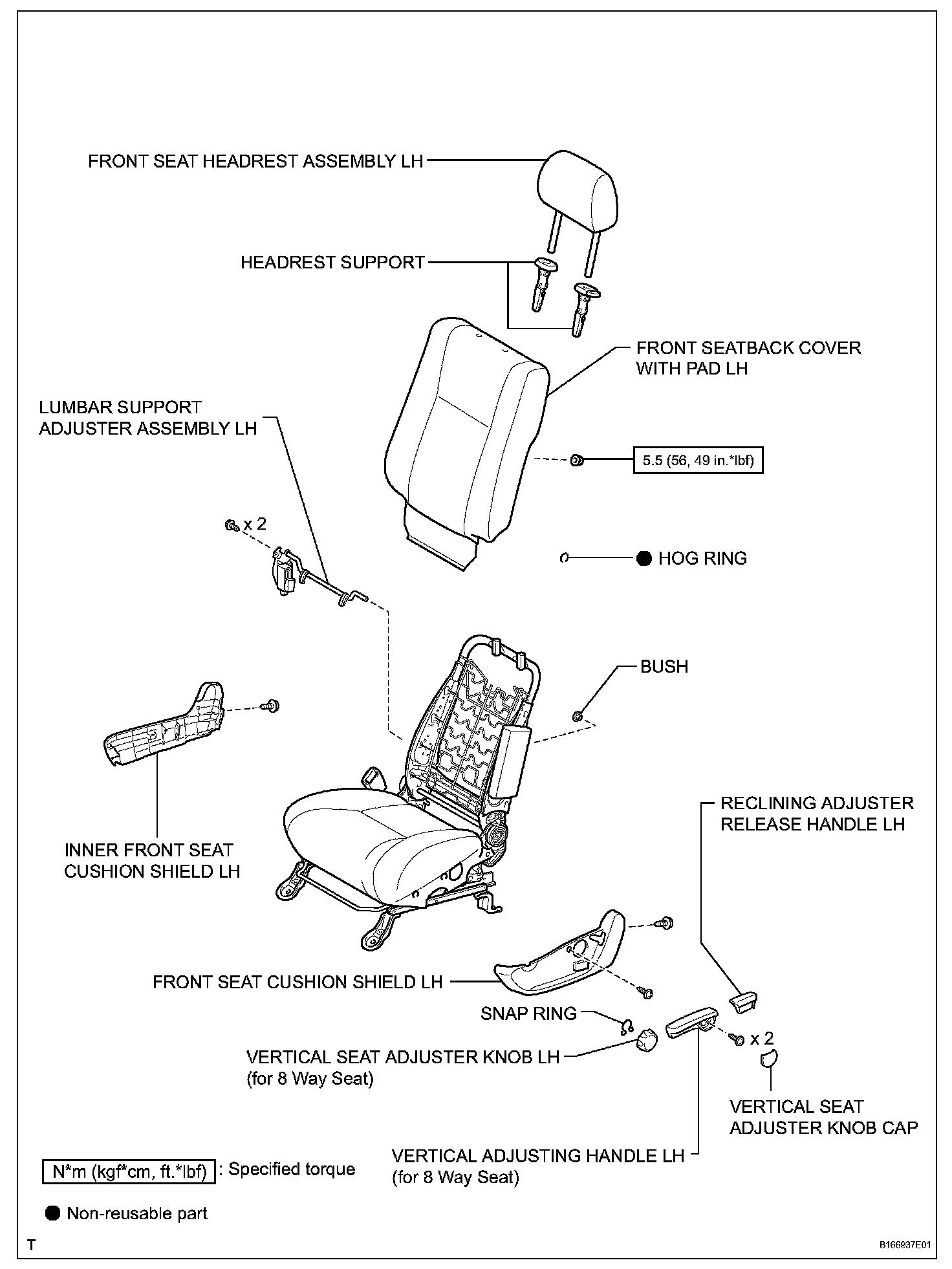

Lumbar Support Adjuster Assembly (for Manual Seat):

REMOVAL

CAUTION: Wear protective gloves. Sharp areas on the seat frame and adjuster may injure your hands.

1. REMOVE FRONT SEAT ASSEMBLY LH
a. Remove the front seat.

2. REMOVE VERTICAL ADJUSTING HANDLE LH (for 8 Way Seat)
3. REMOVE VERTICAL SEAT ADJUSTER KNOB LH (for 8 Way Seat)
4. REMOVE RECLINING ADJUSTER RELEASE HANDLE LH
5. REMOVE FRONT SEAT CUSHION SHIELD LH
6. REMOVE INNER FRONT SEAT CUSHION SHIELD LH
7. REMOVE FRONT SEAT HEADREST ASSEMBLY LH
8. REMOVE FRONT SEATBACK COVER WITH PAD LH
9. REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY LH

INSTALLATION

CAUTION: Wear protective gloves. Sharp areas on the seat frame and adjuster may injure your hands.

1. INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY LH
2. INSTALL FRONT SEATBACK COVER WITH PAD LH
3. INSTALL FRONT SEAT HEADREST ASSEMBLY LH
4. INSTALL INNER FRONT SEAT CUSHION SHIELD LH
5. INSTALL FRONT SEAT CUSHION SHIELD LH
6. INSTALL RECLINING ADJUSTER RELEASE HANDLE LH
7. INSTALL VERTICAL SEAT ADJUSTER KNOB LH (for 8 Way Seat)
8. INSTALL VERTICAL ADJUSTING HANDLE LH (for 8 Way Seat)
9. INSTALL FRONT SEAT ASSEMBLY LH
a. Install the front seat.
