Rear Door Lock (For Sedan)

INSPECTION




1. INSPECT REAR DOOR LOCK ASSEMBLY LH

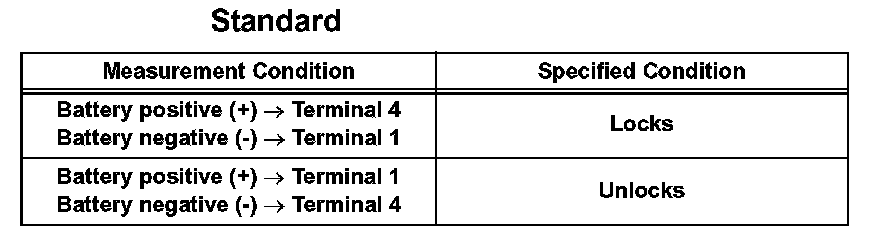

a. w/ Power door lock:
Check the operation.




1. Apply battery voltage to the rear door lock and check the operation of the door lock motor.

If the result is not as specified, replace the rear door lock.

b. Check the resistance of the unlock detection switch.




1. Using an ohmmeter, measure the resistance and check the results in accordance with the value(s) in the table given.

If the result is not as specified, replace the rear door lock.




2. INSPECT REAR DOOR LOCK ASSEMBLY RH
a. w/ Power door lock:
Check the operation.




1. Apply battery voltage to the rear door lock and check the operation of the door lock motor.

If the result is not as specified, replace the rear door lock.

b. Check the resistance of the unlock detection switch.




1. Using an ohmmeter, measure the resistance and check the results in accordance with the value(s) in the table given.

If the result is not as specified, replace the rear door lock.
