With Manufacturer's Scan Tool

DTC CHECK

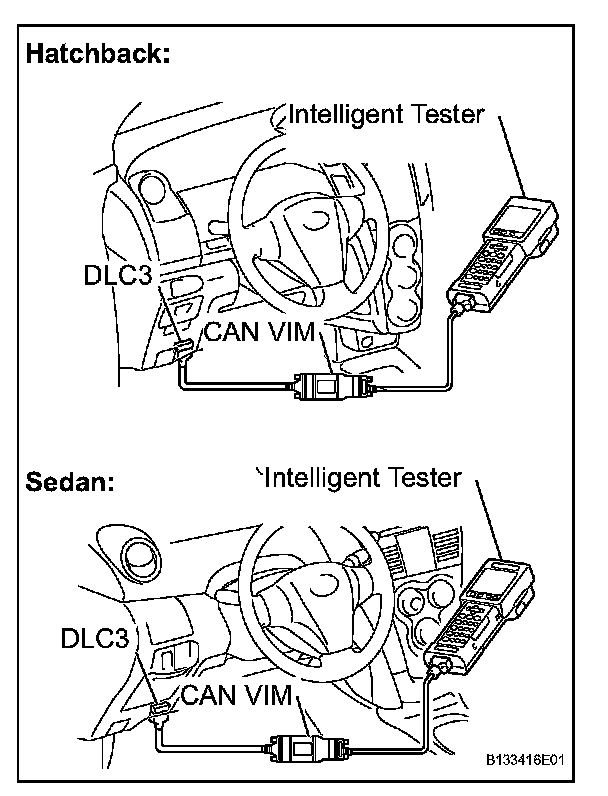

a. Connect the intelligent tester with CAN VIM to the DLC3.
b. Turn the ignition switch ON.
c. Read the DTCs by following the prompts on the tester's screen.

HINT: Refer to the intelligent tester operator's manual for further details.

SELF-DIAGNOSTIC MODE (USING INTELLIGENT TESTER)

a. Switch to self-diagnostic mode.
1. Connect the intelligent tester to the DLC3.
2. Turn the ignition switch ON and turn the intelligent tester main switch on.

HINT: Refer to the intelligent tester operator's manual for further details.
