Radio Receiver (For Sedan)

Radio Receiver (for Sedan):

RADIO RECEIVER (for Sedan)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE INSTRUMENT PANEL LOWER CENTER FINISH PANEL

3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

4. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

5. REMOVE INSTRUMENT CLUSTER FINISH PANEL

6. REMOVE INSTRUMENT CLUSTER CENTER FINISH PANEL SUB-ASSEMBLY (except Integrated with Panel)

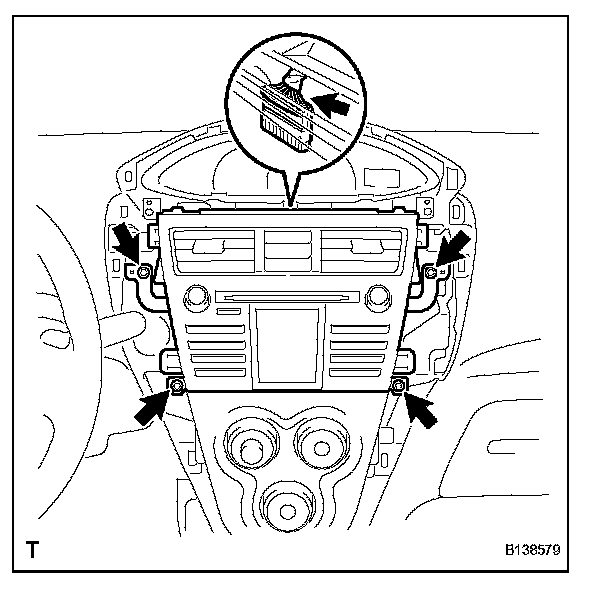

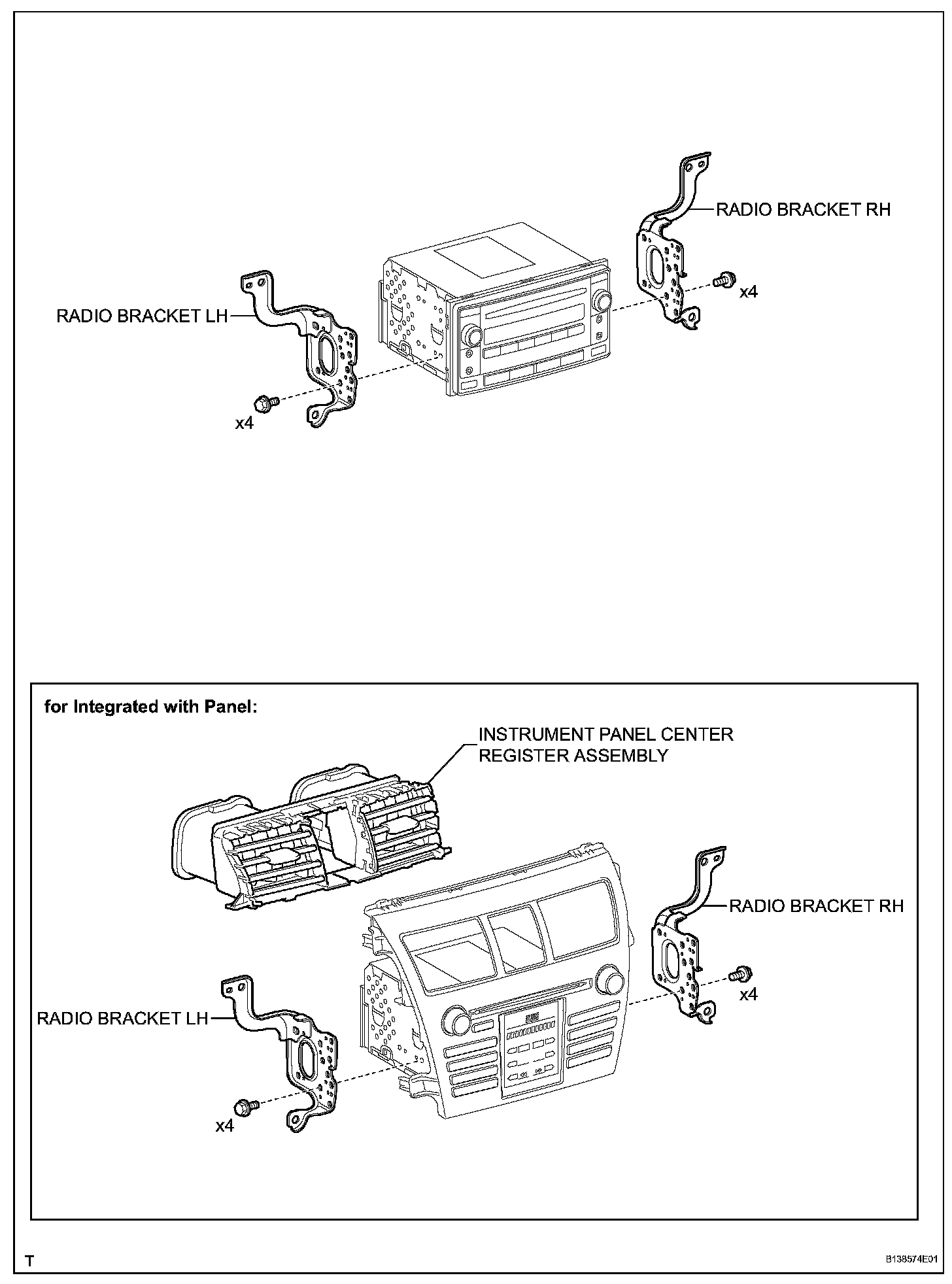

7. REMOVE RADIO RECEIVER ASSEMBLY
a. for Integrated with Panel:
1. Disconnect the hazard warning signal switch connector.
2. Remove the 4 bolts.

3. Disengage the 4 clips and the 4 claws and remove the radio receiver.

4. Disconnect the plug.
5. Disconnect the 3 radio connectors.

b. except Integrated with Panel:
1. Remove the 4 bolts and the radio receiver.

2. Disconnect the plug.
3. Disconnect the 2 radio connectors.

INSTALLATION

1. INSTALL RADIO RECEIVER ASSEMBLY
a. for Integrated with Panel:
1. Connect the plug.
2. Connect the 3 radio connectors.

3. Align the 2 bosses of the instrument panel with the hole in the radio bracket.
4. Engage the 4 clips and 4 claws and install the radio receiver.

5. Tighten the 4 bolts.
6. Connect the hazard warning signal switch connector.

b. except Integrated with Panel:
1. Connect the plug.
2. Connect the 2 radio connectors.

3. Align the 2 bosses of the instrument panel with the hole in the radio bracket.
4. Install the radio receiver with the 4 bolts.

2. INSTALL INSTRUMENT CLUSTER CENTER FINISH PANEL SUB-ASSEMBLY (except Integrated with Panel)

3. INSTALL INSTRUMENT CLUSTER FINISH PANEL

4. INSTALL INSTRUMENT PANEL FINISH PANEL END RH

5. INSTALL INSTRUMENT PANEL FINISH PANEL END LH

6. INSTALL INSTRUMENT PANEL LOWER CENTER FINISH PANEL

7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
