Headlight Assembly (For Hatchback)

DISASSEMBLY




1. REMOVE HEADLIGHT BULB
a. Remove the socket cover.

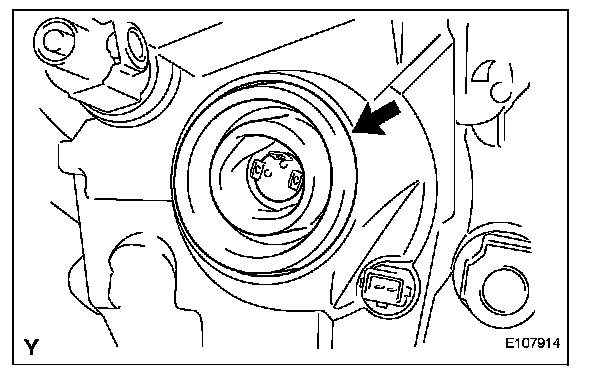

b. Push the set spring, and pull it in the direction indicated by the arrows in the illustration, to disengage it.




c. Remove the headlight bulb.

NOTE: Do not touch the bulb glass with your fingers.

2. REMOVE CLEARANCE LIGHT BULB

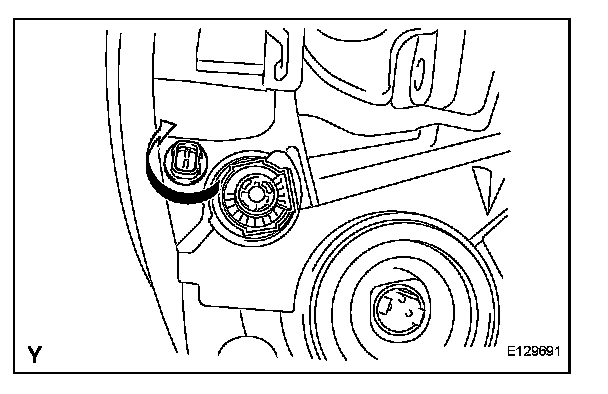

a. Turn the clearance light bulb socket and bulb, in the direction indicated by the arrow in the illustration, to remove them.
b. Remove the clearance light bulb from the light socket.

3. REMOVE FRONT TURN SIGNAL LIGHT BULB




a. Turn the front turn signal light socket and bulb, in the direction indicated by the arrow in the illustration, to remove them.
b. Remove the front turn signal light bulb from the light socket.

4. REMOVE PARKING LIGHT BULB




a. Turn the parking light socket and bulb, in the direction indicated by the arrow in the illustration, to remove them.
b. Remove the parking light bulb from the light socket.

REASSEMBLY
1. INSTALL PARKING LIGHT BULB
a. Install the parking light bulb into the light socket.




b. Turn the parking light bulb socket and bulb, in the direction indicated by the arrow in the illustration, to install them.

2. INSTALL FRONT TURN SIGNAL LIGHT BULB
a. Install the front turn signal light bulb into the light socket.




b. Turn the front turn signal light bulb socket and bulb, in the direction indicated by the arrow in the illustration, to install them.

3. INSTALL CLEARANCE LIGHT BULB
a. Install the clearance light bulb into the light socket.




b. Turn the clearance light bulb socket and bulb, in the direction indicated by the arrow in the illustration, to install them.

4. INSTALL HEADLIGHT BULB




a. Install the headlight bulb.




b. Lock the set spring by moving it in the directions indicated by the arrows in the illustration.




c. Install the socket cover.
