Power Door Lock Switch
>>
Locations

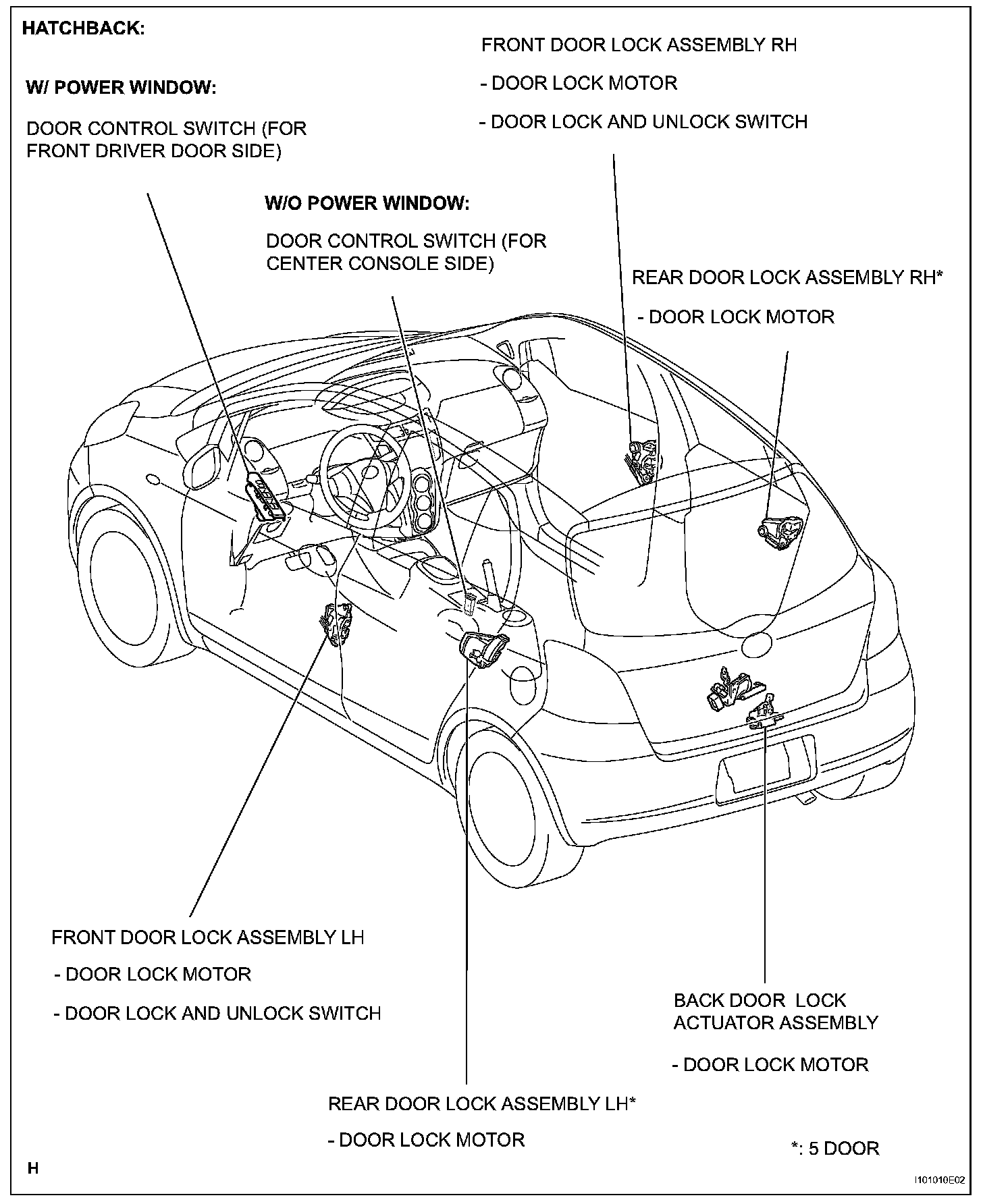

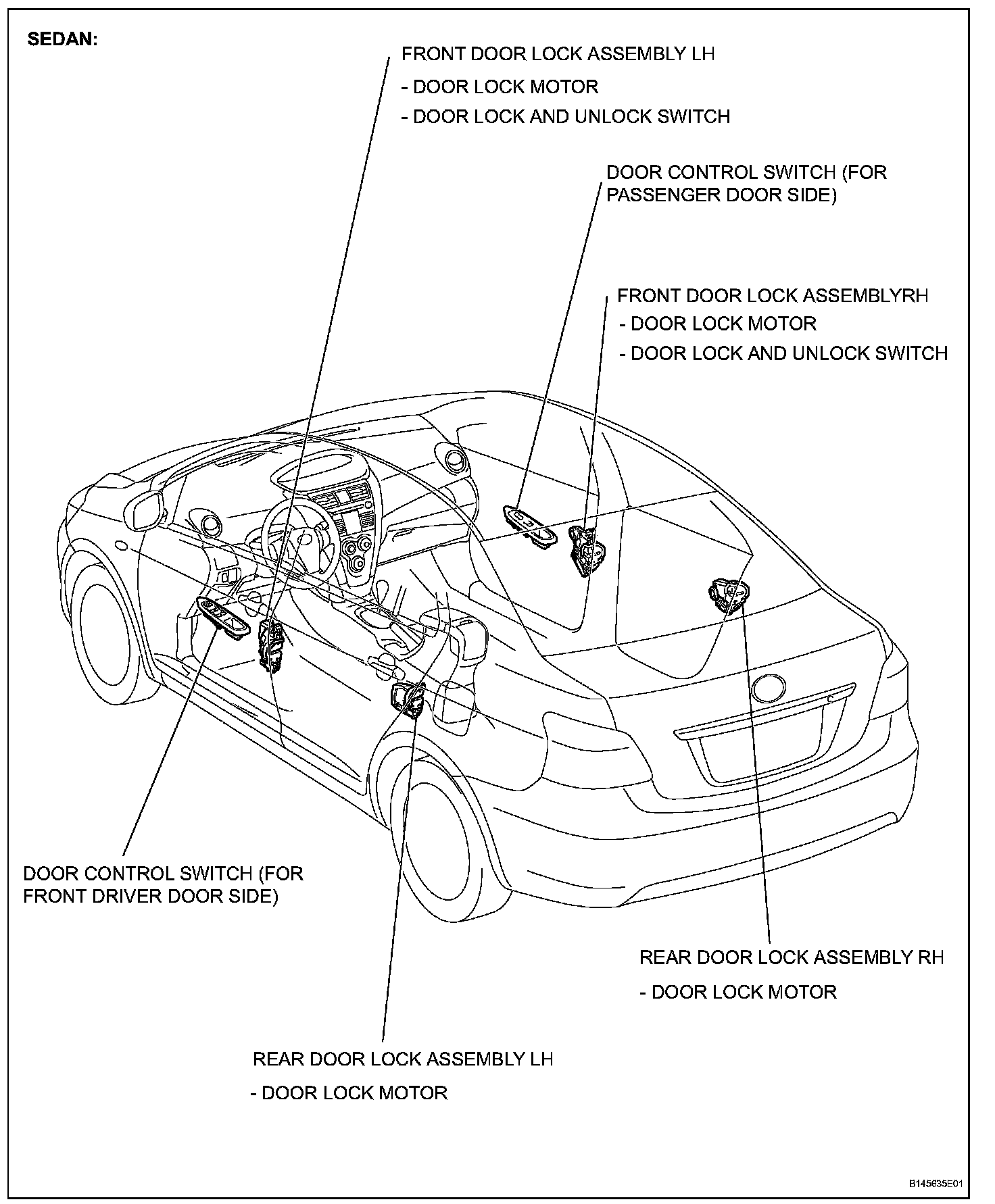

Power Door Lock Switch: Locations
Do - Sp:
Power Door Lock Control System:
Power Door Lock Control System:
