Starter Relay: Testing and Inspection
ON-VEHICLE INSPECTION1. INSPECT STARTER RELAY ASSEMBLY

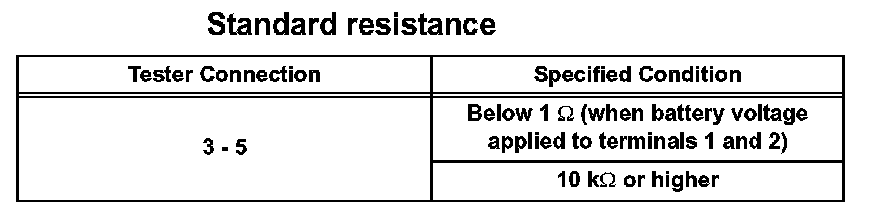

a. Check the resistance.

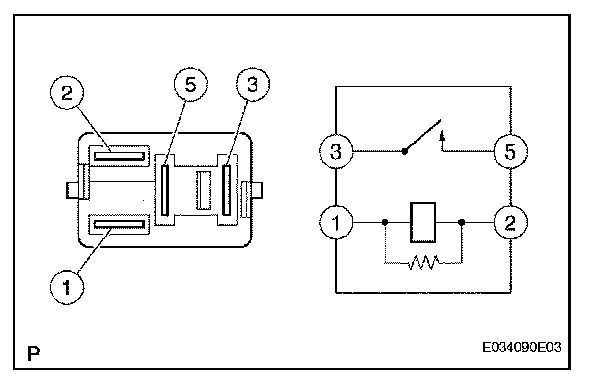

1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the relay.
1. INSPECT STARTER RELAY ASSEMBLY
a. Check the resistance.
1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the relay.
