Starting System: Testing and Inspection

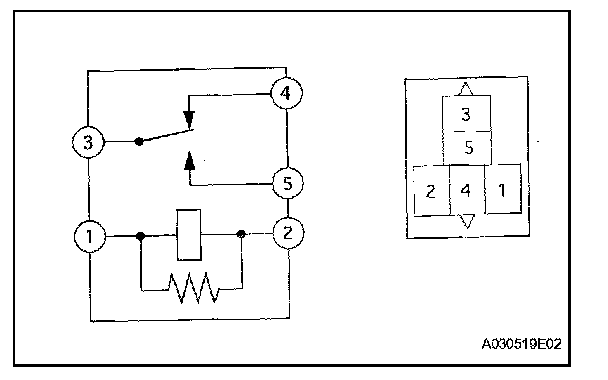

INSPECTION1. INSPECT ACC CUT RELAY
a. Check the resistance.

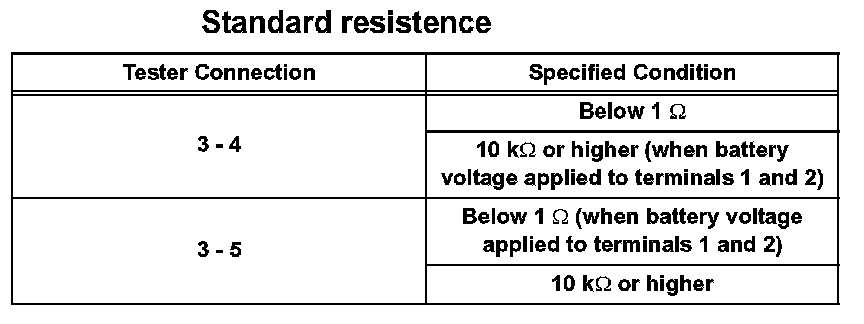

1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the relay.
1. INSPECT ACC CUT RELAY
a. Check the resistance.
1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the relay.
