Remote Up / Down Function Does Not Operate
Remote Up / Down Function Does Not OperateDESCRIPTION
3 Door:
With the ignition switch ON, the power window regulator master switch transmits remote switch signals to the regulator switch of the passenger door power window. Then, the regulator switch drives the passenger power window regulator motor.
Except 3 door:
With the ignition switch ON, the power window regulator master switch transmits remote switch signals to the regulator switches of the passenger door power window and rear door power windows. Then, each regulator switch drives its respective power window regulator motor.

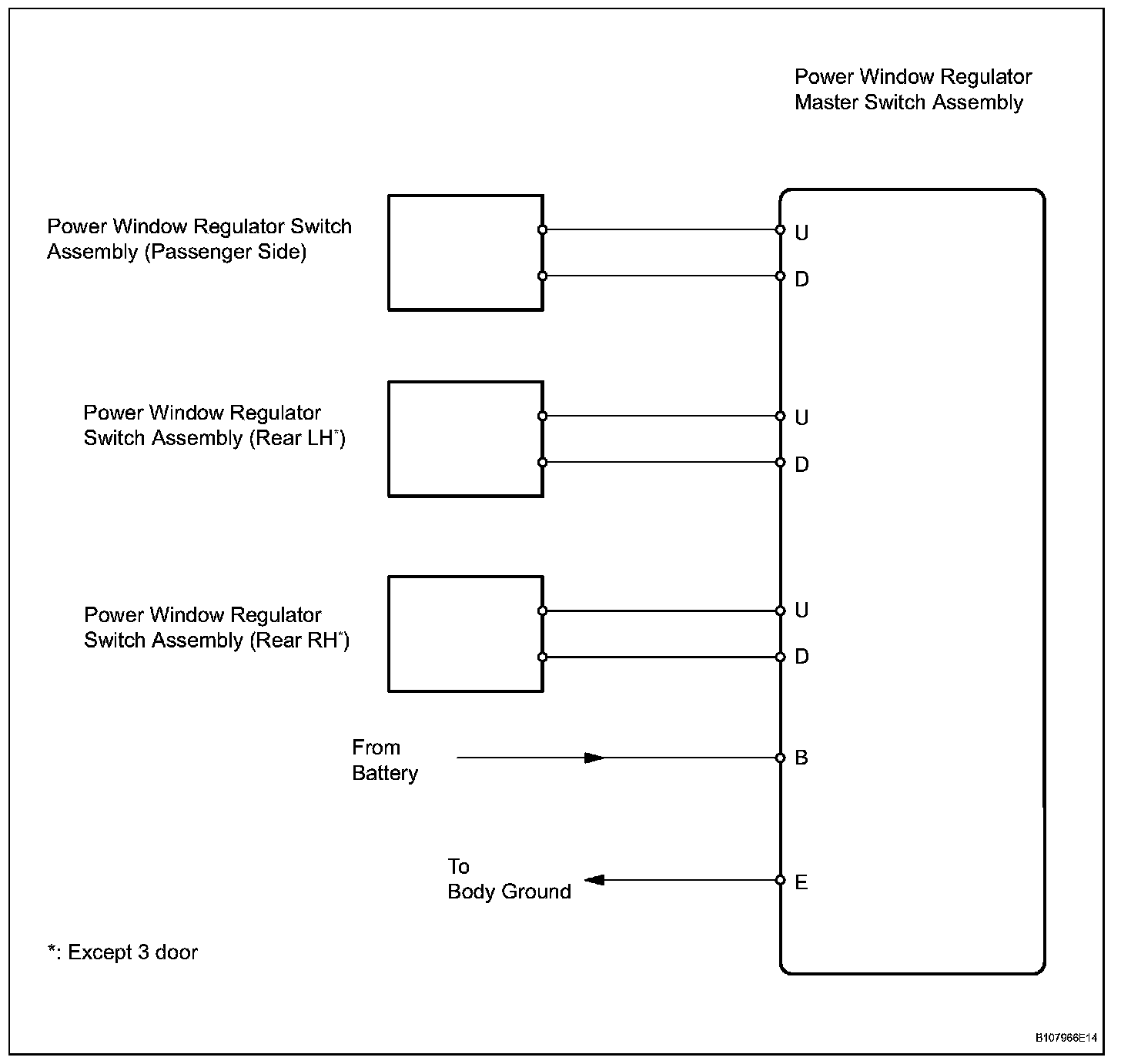

WIRING DIAGRAM
Wiring Diagram:

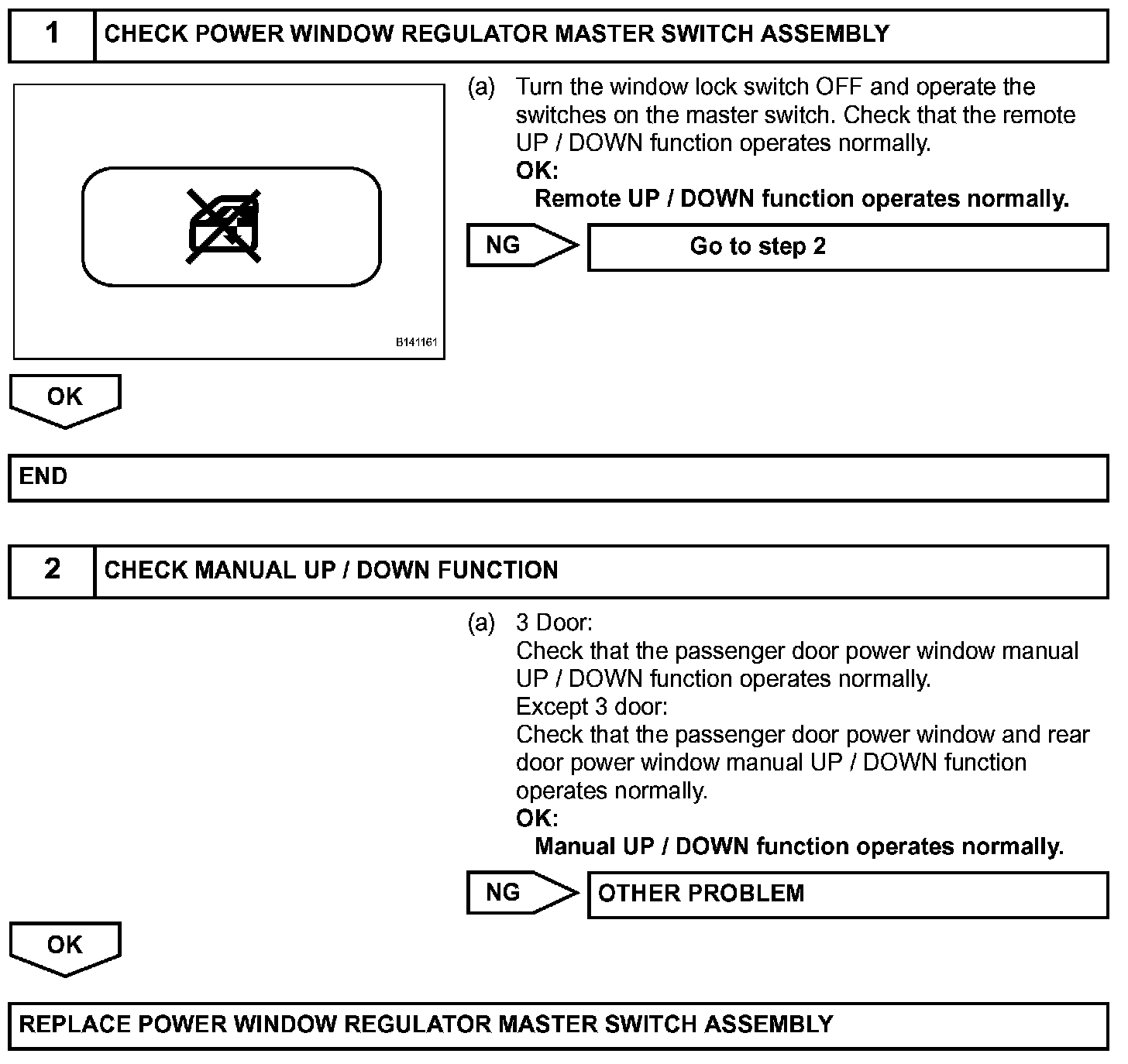

INSPECTION PROCEDURE
Step 1 - 2:
