Circuit Opening Relay

1GR-FE ENGINE CONTROL SYSTEM: CIRCUIT OPENING RELAY: INSPECTION

1GR-FE ENGINE CONTROL SYSTEM: CIRCUIT OPENING RELAY: INSPECTION





1. INSPECT CIRCUIT OPENING RELAY
(a) Check the resistance.

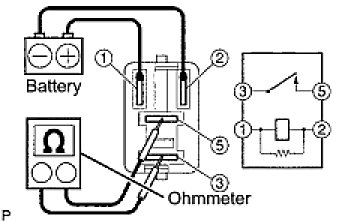

(1) Using an ohmmeter, measure the resistance between the terminals.

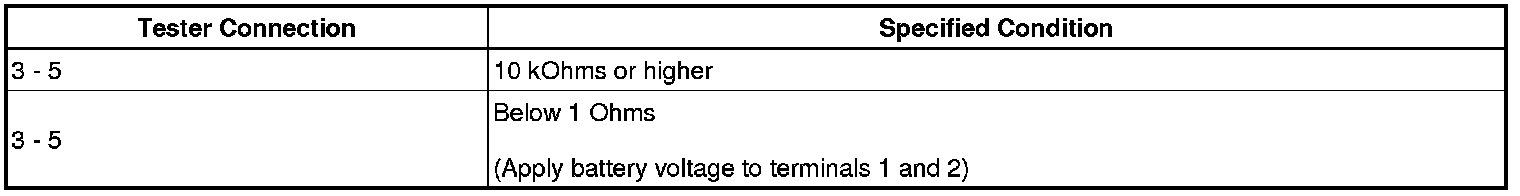

Resistance:






If the result is not as specified, replace the circuit opening relay.
