1GR-FE ENGINE CONTROL SYSTEM: VVT SENSOR: REMOVAL

1GR-FE ENGINE CONTROL SYSTEM: VVT SENSOR: REMOVAL

1. DRAIN ENGINE COOLANT Service and Repair

2. REMOVE V-BANK COVER Removal

3. DISCONNECT VENTILATION HOSE NO.2
4. REMOVE AIR CLEANER ASSEMBLY Removal

5. REMOVE VVT SENSOR

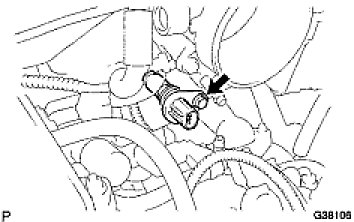

(a) RH bank side VVT sensor.
(1) Disconnect the VVT sensor connector.
(2) Remove the bolt and the VVT sensor.

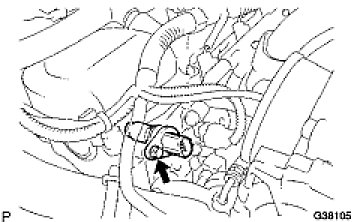

(b) LH bank side VVT sensor.

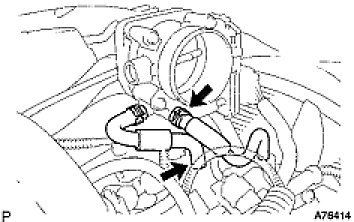

(1) Disconnect the water by-pass hoses No. 4 and No. 5.
(2) Disconnect the VVT sensor connector.





(3) Remove the bolt and the VVT sensor.
