Home >> Toyota >> 2008 >> 4 Runner 2WD V6-4.0L (1GR-FE) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations

Emission Control Systems: Locations

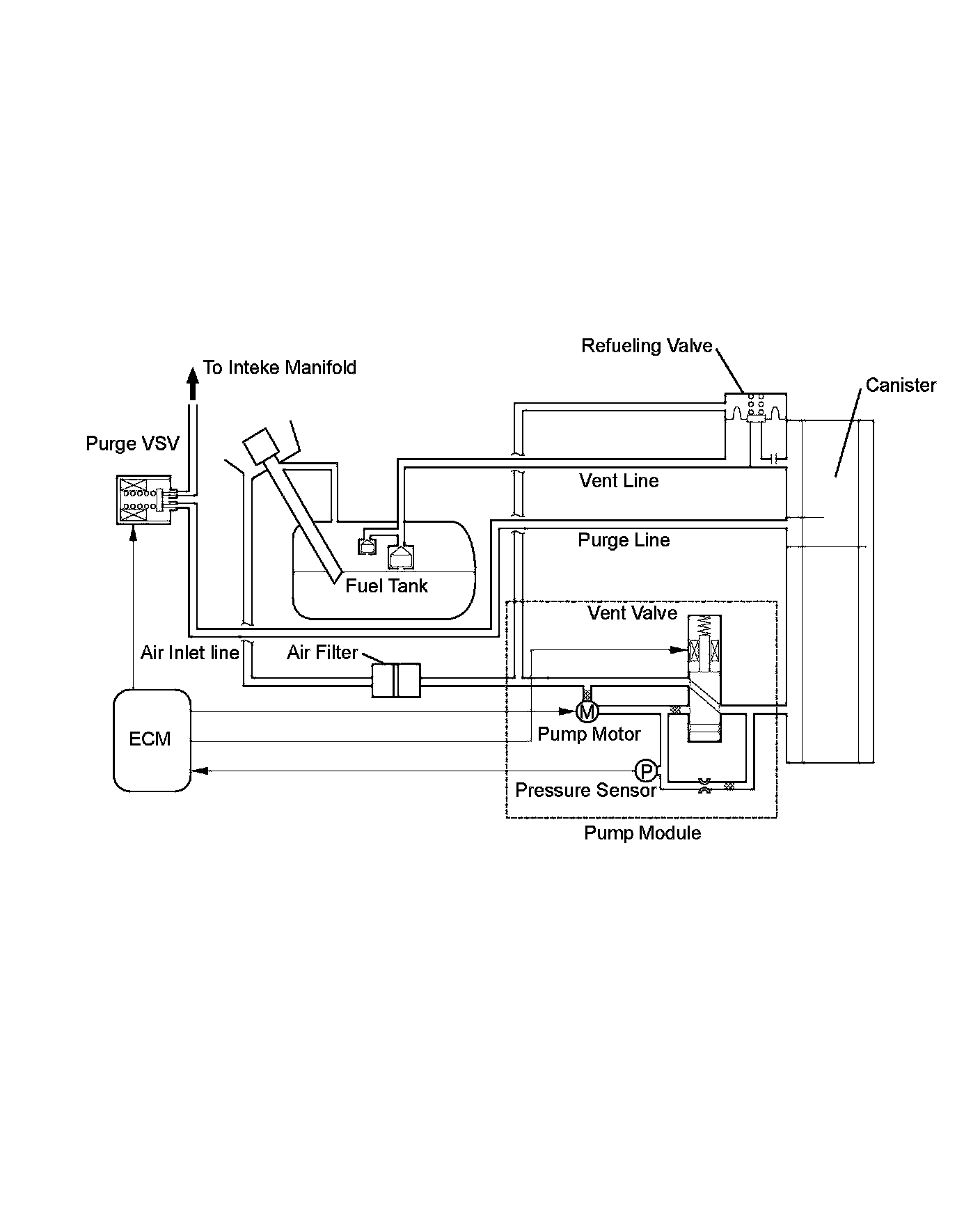

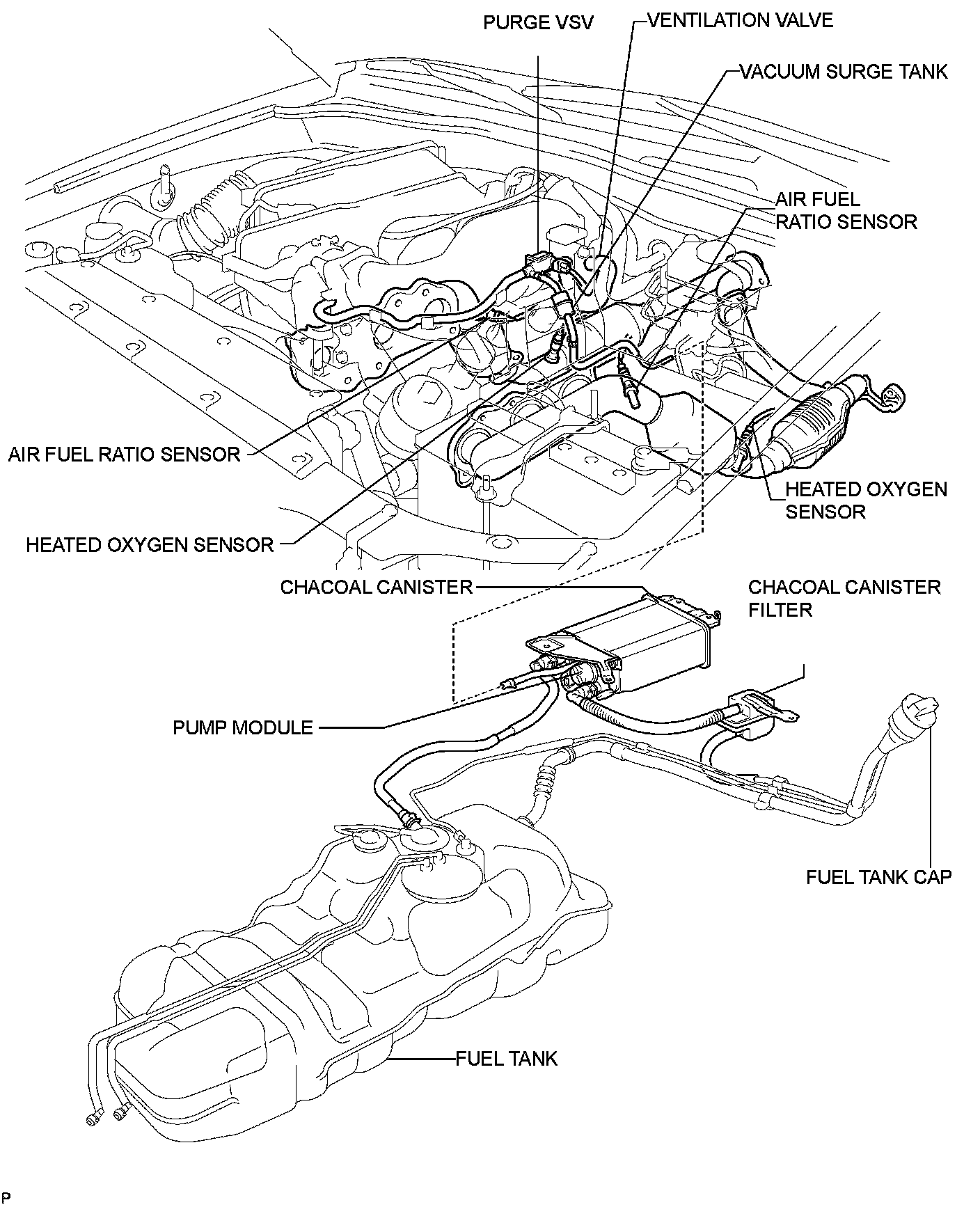

1GR-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: PARTS LOCATION

1GR-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: PARTS LOCATION
