Installation
1GR-FE ENGINE CONTROL SYSTEM: KNOCK SENSOR: INSTALLATION
1GR-FE ENGINE CONTROL SYSTEM: KNOCK SENSOR: INSTALLATION
1. INSTALL KNOCK SENSOR

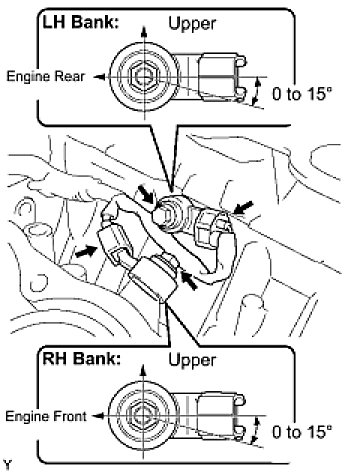

(a) Install the 2 knock sensors with the 2 bolts as shown in the illustration.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
(b) Connect the 2 knock sensor connectors.
2. INSTALL WATER OUTLET PIPE NO.1
(a) Install the 3 bolts [A] and the water outlet pipe.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Install the 4 wire harness clamps [B].
3. CONNECT HEATER WATER INLET HOSE A
(a) Connect the heater water inlet hose A.
4. INSTALL CYLINDER HEAD SUB-ASSEMBLY Installation
